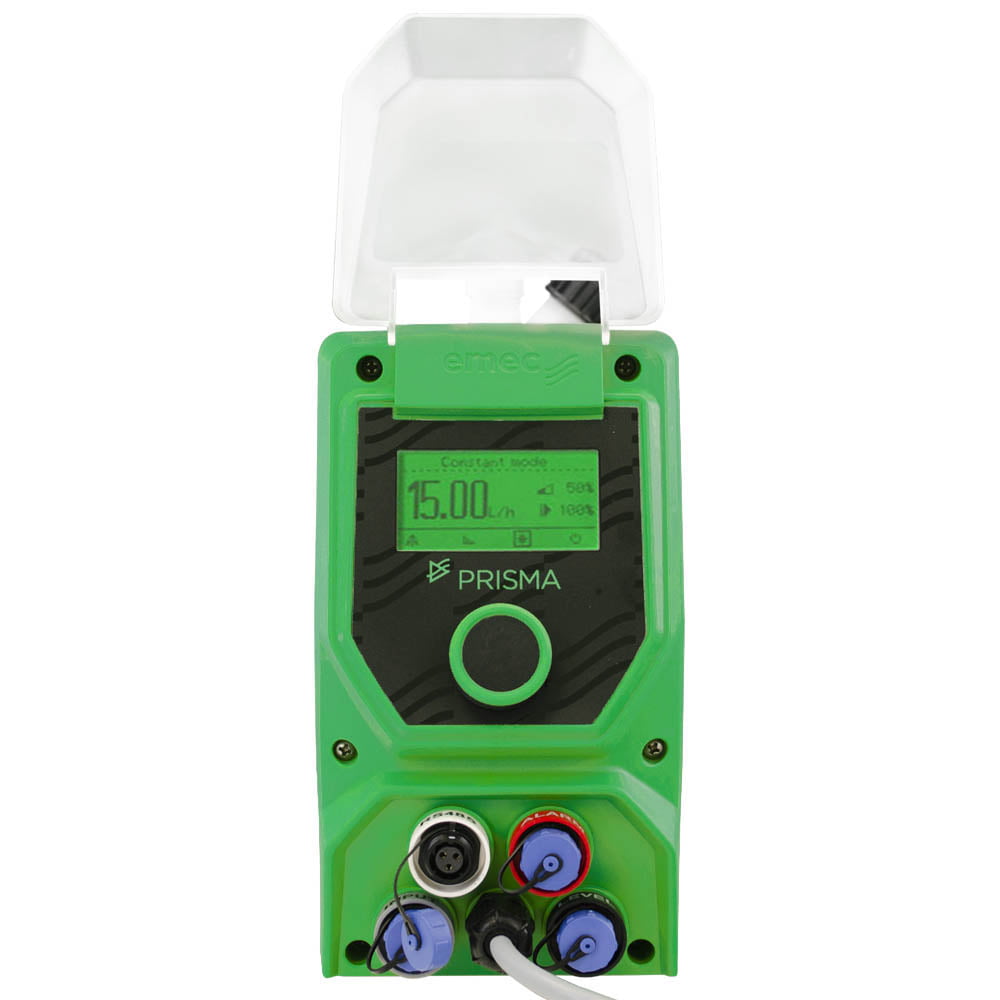

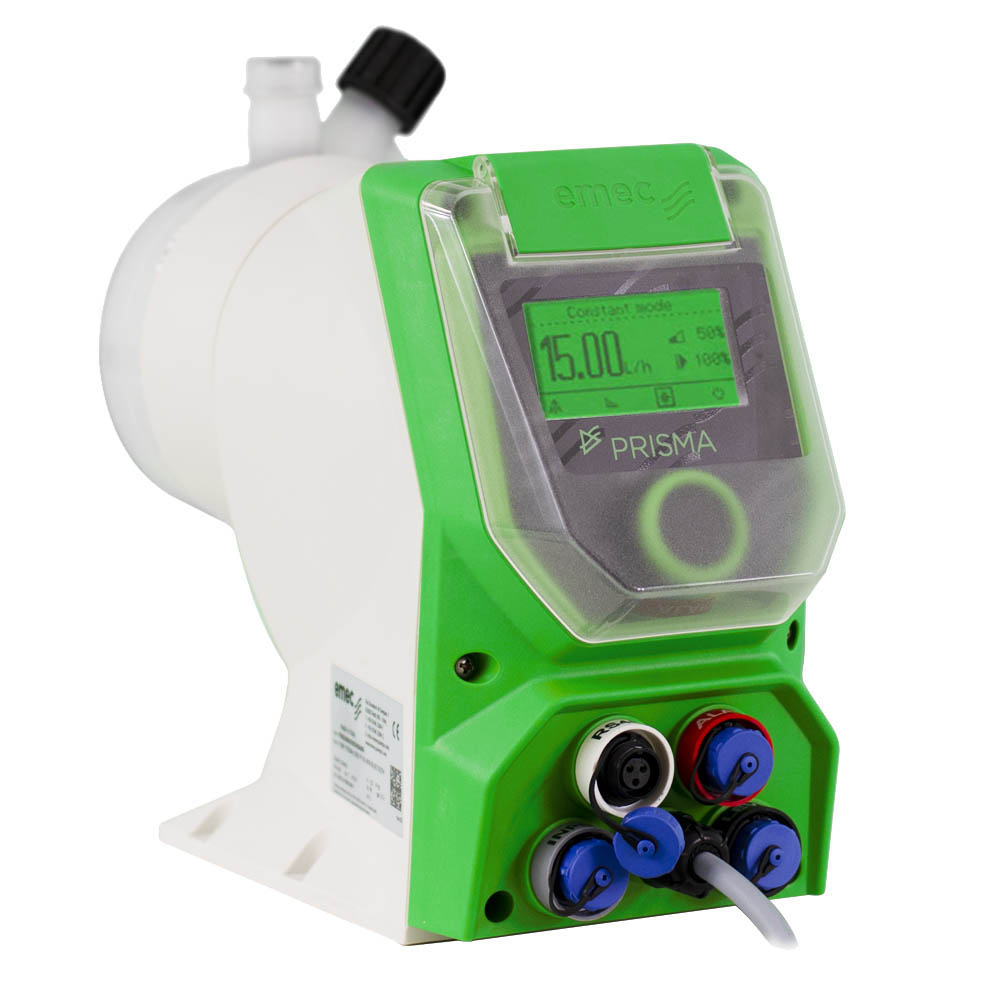

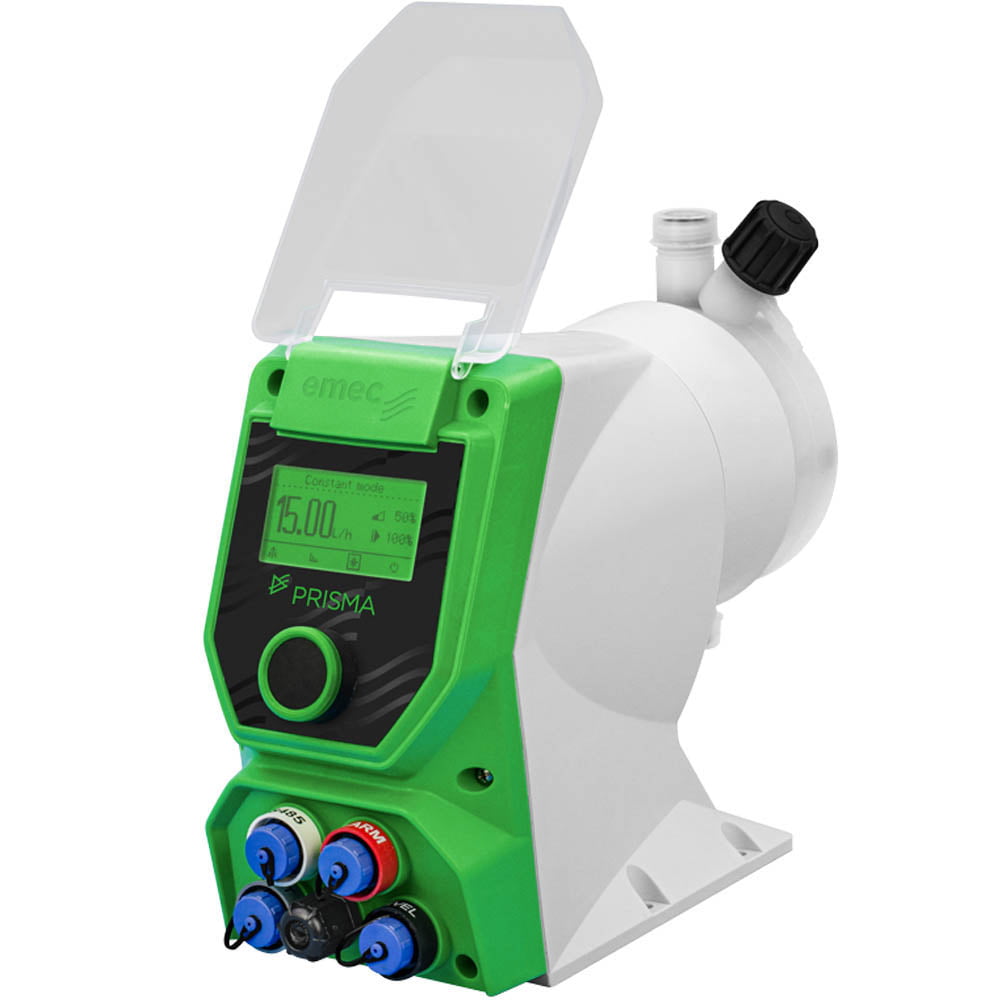

EMEC PRISMA Intelligent Digital Dosing Pump

emec PRISMA Stepper Motor Smart Metering Pumps are a top end product without the high end price tag. They are on par with the most prominent brands in the market and have an incredible turndown of 4800:1 with continuous feed of product. With so many features too numerous to mention, they will suit any dosing application whilst running much quieter than a solenoid pump.

  • Stepper Motor Design ensures constant chemical delivery
  • Includes foot valve, Injection valve, 2m of Suction tube and 2m of Delivery tube
  • Programmable modes: Constant, cc Per Pulse, PPM, %, MLQ, Batch, Volt, mA, Pulse, Pause-Work, Weekly Programming
  • Standard head: PVDF with Viton Seals

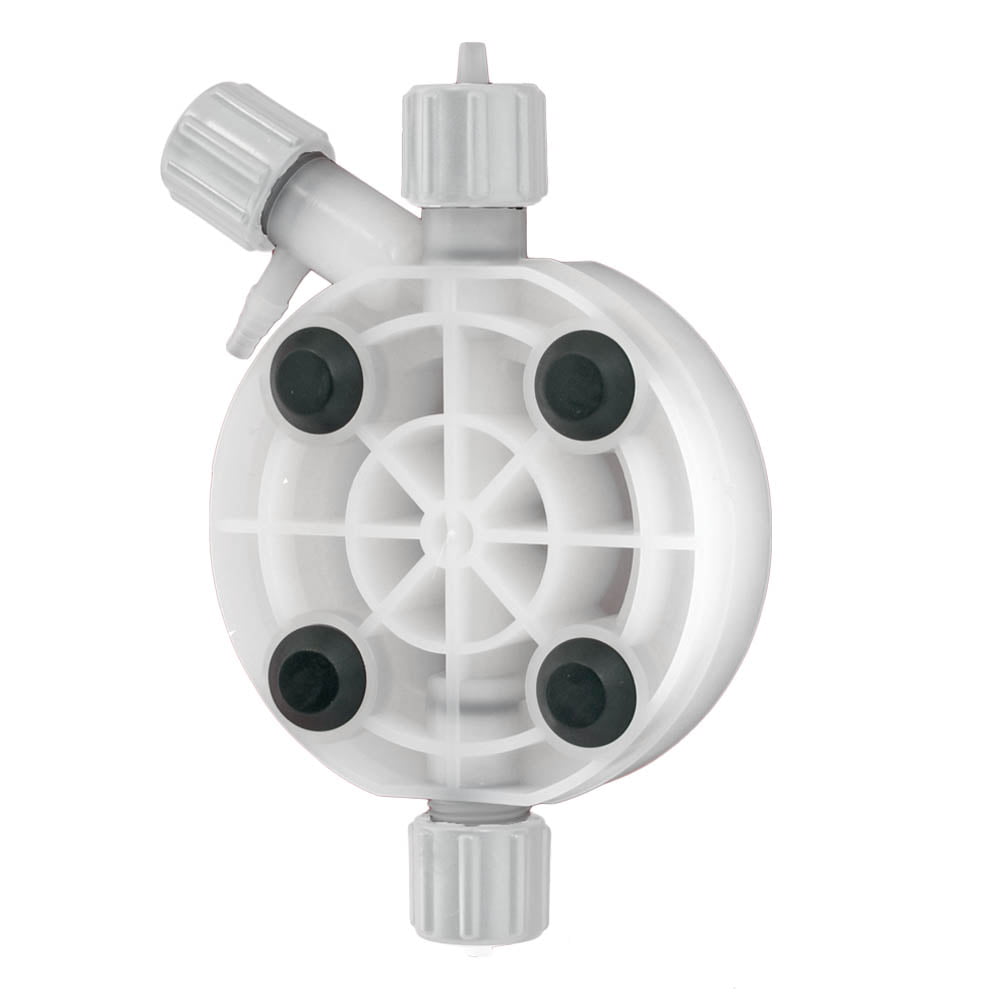

  • Head for Caustic: PP with EPDM seals and SS Balls

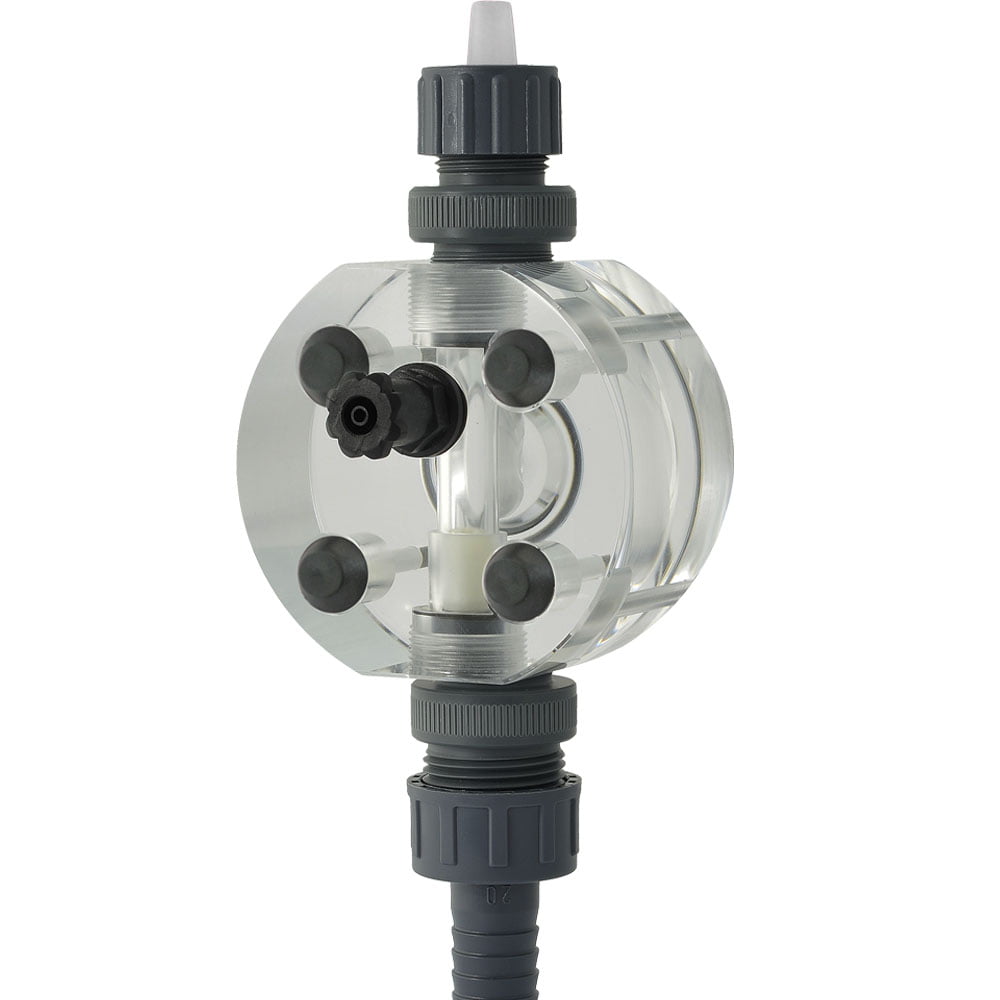

  • High Viscosity heads for Polymer: PRISMA LPV models only (8000 cps max.)
  • Reliable & accurate dosing
  • Backlit Multi-colour LCD Display (normal / warning / alarm)
  • Turndown 4800:1
  • Programmable alarm relay output
  • Pump enable/standby input
  • MODBUS RTU optional
  • Float on foot valve stops pump dosing when chemical level in tank is low
  • Double ball check valves in foot valve, suction & discharge valves
  • Long lasting Solid Teflon diaphragm
  • Wall Mount with optional Front or Side Mount Bracket
  • TIP:  see available Models / Part Numbers below
Compare
SKU: EMEC PRISMA Category: Tag: Brand:

Description

New call-to-action

Superseded
EMEC Chemical Compatibility Table April 2013
EMEC PRISMA 0280_0450_0528 FP LPV Spare Parts Exploded Rev 01
EMEC PRISMA 0280_0450_0528 FP Spare Parts Exploded Rev 02
EMEC PRISMA 0280_0450_0528 PP EP SS Spare Parts Exploded Rev 01
EMEC PRISMA 0720 FP Spare Parts Exploded Rev 01
EMEC PRISMA 0720 PP EP SS Spare Parts Exploded Rev 01
EMEC PRISMA 1013 FP Spare Parts Exploded Rev 02
EMEC PRISMA 1013 PP EP SS Spare Parts Exploded Rev 01
EMEC PRISMA 2502_2005_1607 FP Spare Parts Exploded Rev 01
EMEC PRISMA 2502_2005_1607 PP EP SS Spare Parts Exploded Rev 01
EMEC PRISMA Brochure 2019
EMEC PRISMA Pumps Instruction Manual R12-02-24 (green input cables)
EMEC PRISMA Pumps Instruction Manual R18-02-21 (grey input cables)
EMEC PRISMA Stepper Motor Pump Data Sheet R11-19
Superseded
EMEC Chemical Compatibility Table April 2013
EMEC PRISMA 0280_0450_0528 FP LPV Spare Parts Exploded Rev 01
EMEC PRISMA 0280_0450_0528 FP Spare Parts Exploded Rev 02
EMEC PRISMA 0280_0450_0528 PP EP SS Spare Parts Exploded Rev 01
EMEC PRISMA 0720 FP Spare Parts Exploded Rev 01
EMEC PRISMA 0720 PP EP SS Spare Parts Exploded Rev 01
EMEC PRISMA 1013 FP Spare Parts Exploded Rev 02
EMEC PRISMA 1013 PP EP SS Spare Parts Exploded Rev 01
EMEC PRISMA 2502_2005_1607 FP Spare Parts Exploded Rev 01
EMEC PRISMA 2502_2005_1607 PP EP SS Spare Parts Exploded Rev 01
EMEC PRISMA Brochure 2019
EMEC PRISMA Pumps Instruction Manual R12-02-24 (green input cables)
EMEC PRISMA Pumps Instruction Manual R18-02-21 (grey input cables)
EMEC PRISMA Stepper Motor Pump Data Sheet R11-19
Name
Superseded

Additional information

Configuration

Foot Mount, Wall Mount with Optional Bracket

Variables Measured

Level

Inputs

4-20mA, Pulse, Standby Dry Contact, Tank Level Dry Contact, Water Meter Make-up Pulses

Outputs

Alarm Relay, Optional Modbus

Max Flow / Pressure (Head)

13 l/hr @ 10 bar, 28 l/hr @ 5 bar, 5 l/hr @ 20 bar, 80 l/hr @ 2 bar

Process Connection

1/2 inch BSP Male, 3/4 inch BSP Male

Materials

Ceramic Balls, EPDM O-rings & Seats, FKM B O-rings & Seats, PTFE Diaghragm/s, PVDF Head, PVDF Valve Bodies

Max Viscosity

100 cps, 600 cps with optional SS balls, 8000 cps in LPV Models

IP Rating

IP65

Install Kit Included

16×22 suction hose, 8x12mm delivery tube & injection valve in LPV models, 4x6mm tube, injection valve & foot valve with level float, 6x8mm tube (20 l/hr) or 8x12mm tube (30 l/hr), injection valve & foot valve

Optional Tube Size

1/4 inch, 3/8 inch, 5×8 or 6x9mm

Models / Part Numbers

  • EMEC PRISMA 02 80 for max 80 l/hr @ 2 bar
  • EMEC PRISMA 04 50 for max 50 l/hr @ 4 bar
  • EMEC PRISMA 05 28 for max 28 l/hr @ 5 bar
  • EMEC PRISMA 10 13 for max 13 l/hr @ 10 bar
  • EMEC PRISMA 16 7.5 for max 7.5 l/hr @ 16 bar
  • EMEC PRISMA 20 05 for max 5 l/hr @ 20 bar
  • EMEC PRISMA 25 02 for max 2 l/hr @ 25 bar
  • Add FP to Product Code above for PVDF head, Viton seals & CE Balls
  • Add PP EP SS to Product Code above for PP head, EPDM seals & SS Balls
  • Add LPV to Product code above for high viscosity head
  • Add MODB to Product Code above for Modbus RTU option
  • Exchange PRISMA for PRISMA-B for pumps with Bluetooth

You may also like…

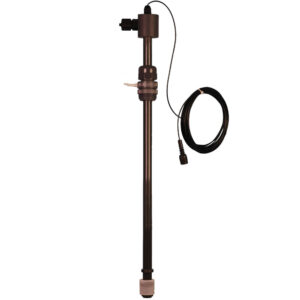

  • EMEC LASP Suction Lance with Single Float

    EMEC LASP Suction Lance with Single Float

    Compare

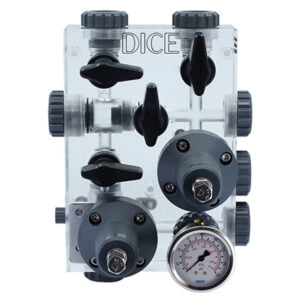

  • DM Flooded Suction Dosing Module

    Compare
  • Accessories-Spares-EMEC-Pumps-Multi-Function-Valve-Pump-Mount-EMEC-MFKT

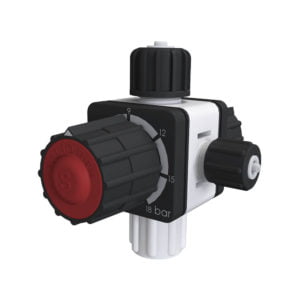

    EMEC MFKT Multi-function (Anti Syphon) valve – Pump Mount

    Compare

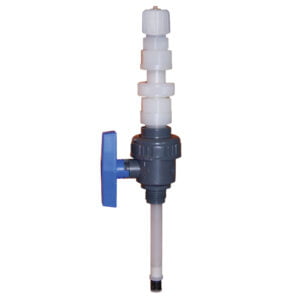

  • EMEC LINRD/K Injection Lance PVDF EP

    Compare

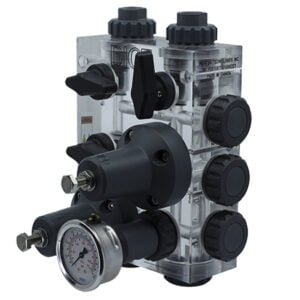

  • DS Suction Lift Dosing Module

    Compare
  • Wall-Mount-Bracket-for-Dosing-Pumps-EMEC-ST-K

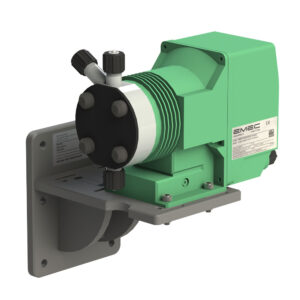

    EMEC ST-K Wall mount bracket for K Series Dosing Pumps (Side Mount)

    Compare

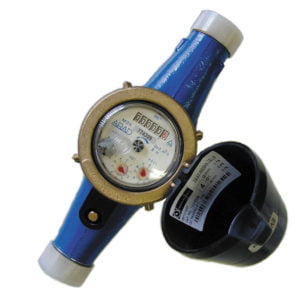

  • Cold Water Meters 15mm to 50mm - ARAD Multijet

    Cold Water Meters 15mm to 32mm – ARAD Multijet

    Compare
  • Wall-Mount-Bracket-for-Prisma-Dosing-Pumps-EMEC-STPRISMA

    EMEC STPRISMA Wall mount bracket for PRISMA Dosing Pumps (Front Mount)

    Compare

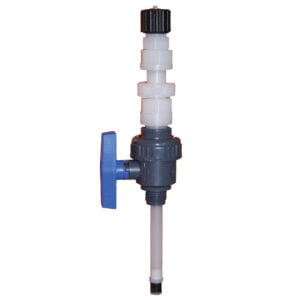

  • EMEC LINRV/K Injection Lance PVDF FP
