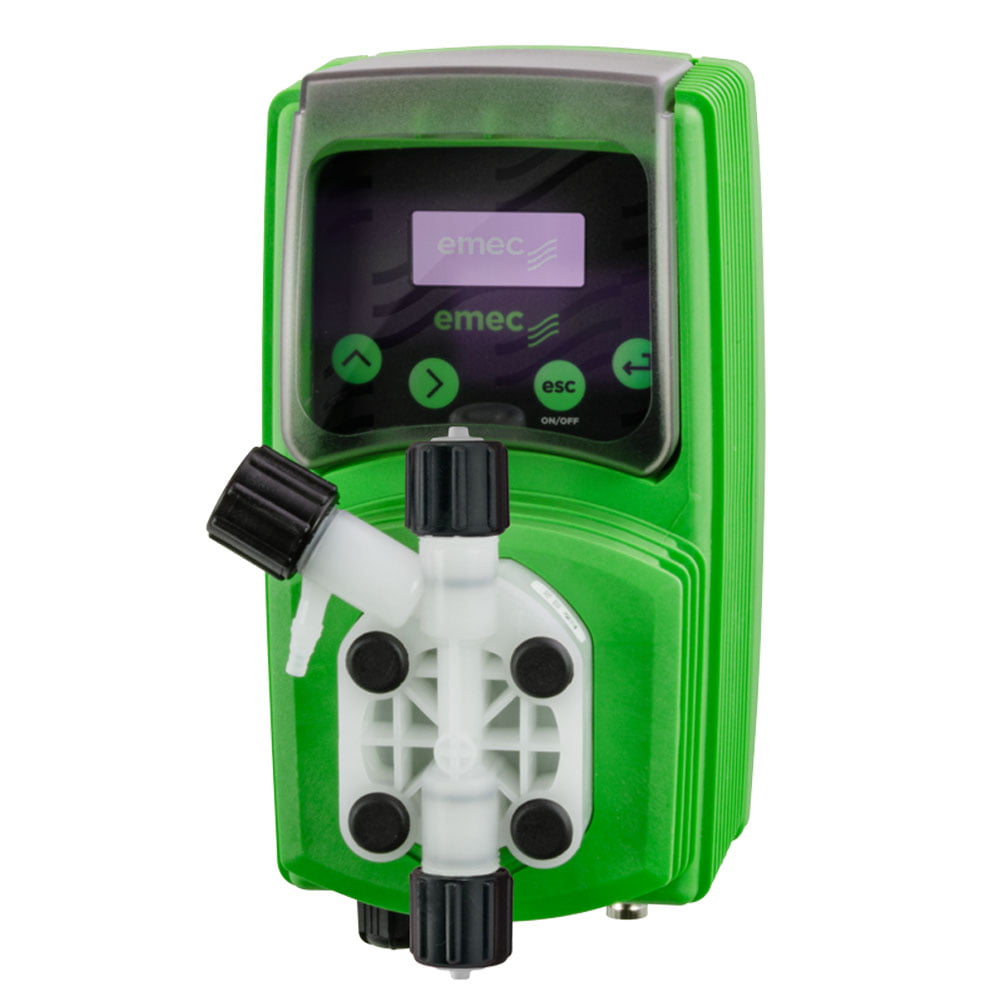

EMEC VMF & VAMF Digital Multi Function Pumps (1 l/hr to 15 l/hr)

  • Includes Installation Kit, i.e. foot valve, injection valve, 2m of Suction tube and 2m of Delivery tube
  • Standard head: PVDF with Viton Seals (suitable for Acid or Chlorine)

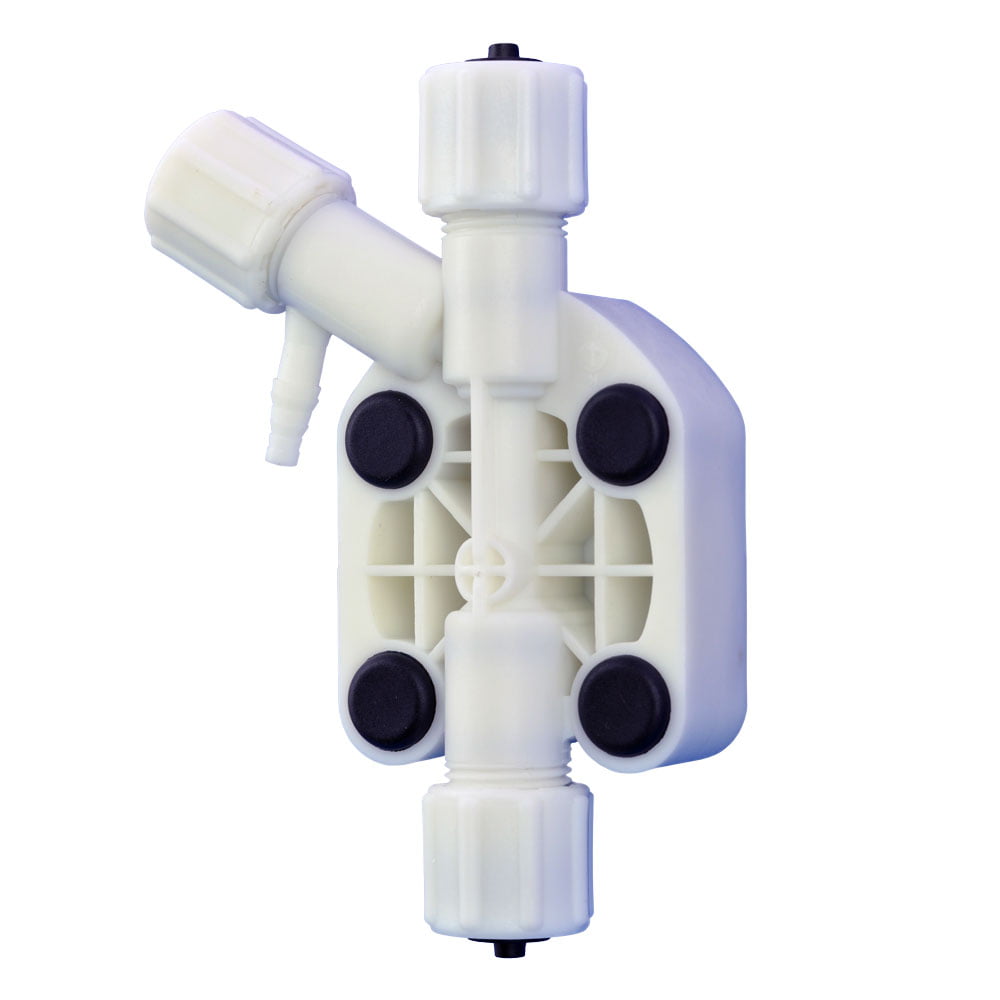

  • Head for Caustic: PP with EPDM seals and SS Balls
  • Backlit LCD Display of Strokes/Min, L/HR, PPM, etc
  • Programmable modes: Constant, Pulse with Divide, Multiply or PPM, Batch, Volt, mA
  • Float on foot valve stops pump dosing when chemical level in tank is low
  • Double ball check valves in foot valve, suction & delivery valves
  • Long lasting Solid Teflon diaphragm
  • Reliable & accurate dosing
  • Simple mounting with only 2 screws
  • Alternate code: EMEC VMSMF / EMEC VMSAMF
  • TIP:  see available Models / Part Numbers below



Compare
SKU: EMEC VMF / EMEC VAMF Category: Tag: Brand:

Description

EMEC Chemical Compatibility Table April 2013
EMEC VAMF Spare Parts Exploded Rev 01
EMEC VAMF Data Sheet
EMEC VMF 1502_0706_0310 FP Spare Parts Exploded Rev 01
EMEC VMF 1502_0706_0310 PP EP SS Spare Parts Exploded Rev 01
EMEC VMF Data Sheet R1-07-13
EMEC VMF-VAMF Instruction Manual R1-02-18
EMEC Chemical Compatibility Table April 2013
EMEC VAMF Spare Parts Exploded Rev 01
EMEC VAMF Data Sheet
EMEC VMF 1502_0706_0310 FP Spare Parts Exploded Rev 01
EMEC VMF 1502_0706_0310 PP EP SS Spare Parts Exploded Rev 01
EMEC VMF Data Sheet R1-07-13
EMEC VMF-VAMF Instruction Manual R1-02-18
Name

Additional information

Configuration

Wall Mount

Variables Measured

Level

Inputs

4-20mA, Pulse, Tank Level Dry Contact, Water Meter Make-up Pulses

Max Flow / Pressure (Head)

15 l/hr @ 2 bar, 1 l/hr @ 5 bar, 10 l/hr @ 10 bar, 10 l/hr @ 3 bar, 2 l/hr @ 15 bar, 6 l/hr @ 7 bar

Process Connection

1/2 inch BSP Male

Materials

Ceramic Balls, EPDM O-rings & Seats, FKM B O-rings & Seats, PP Head, PP Valve Bodies, PTFE Diaghragm/s, PVDF Head, PVDF Valve Bodies, SS Balls

Max Viscosity

100 cps, 600 cps with optional SS balls

IP Rating

IP65

Install Kit Included

4x6mm tube (<12 l/hr) or 6x8mm tube (12 l/hr or more), injection valve & foot valve with level float

Optional Tube Size

1/4 inch, 3/8 inch, 5×8 or 6x9mm

Models / Part Numbers

  • EMEC VMF 05 01 for max 1 l/hr @ 5 bar
  • EMEC VMF 15 02 for max 2 l/hr @ 15 bar
  • EMEC VMF 07 06 for max 6 l/hr @ 7 bar
  • EMEC VMF 10 10 for max 10 l/hr @ 10 bar
  • EMEC VMF 03 10 for max 10 l/hr @ 3 bar
  • EMEC VMF 02 15 for max 15 l/hr @ 2 bar
  • Add FP to Product Code for Viton seals
  • Add EP to Product Code for EPDM seals



Chlorine Pumps

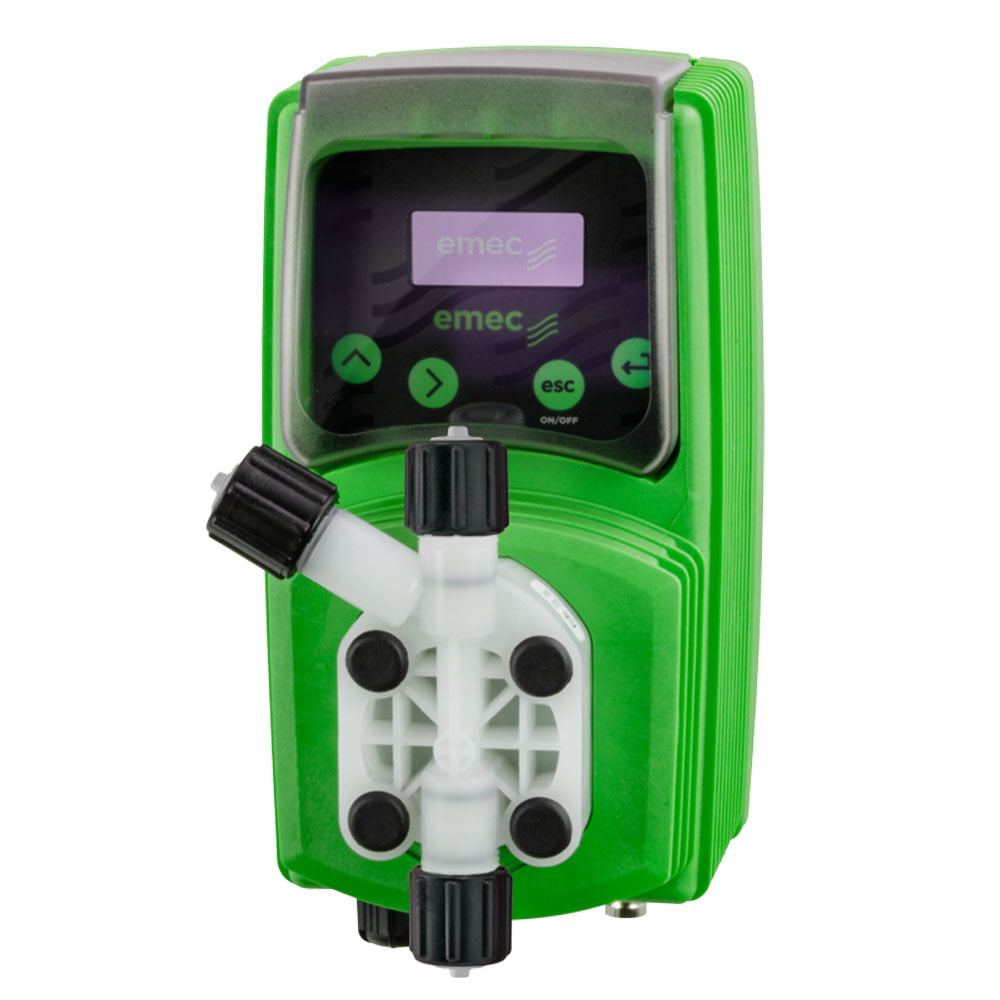

  • EMEC VAMF 10 02 FP for max 2 l/hr @ 10 bar (PVDF degassing head)
  • EMEC VAMF 07 04 FP for max 4 l/hr @ 7 bar (PVDF degassing head)
  • EMEC VAMF 03 07 FP for max 7 l/hr @ 3 bar (PVDF degassing head)
  • EMEC VAMF 02 12 FP for max 12 l/hr @ 2 bar (PVDF degassing head)
