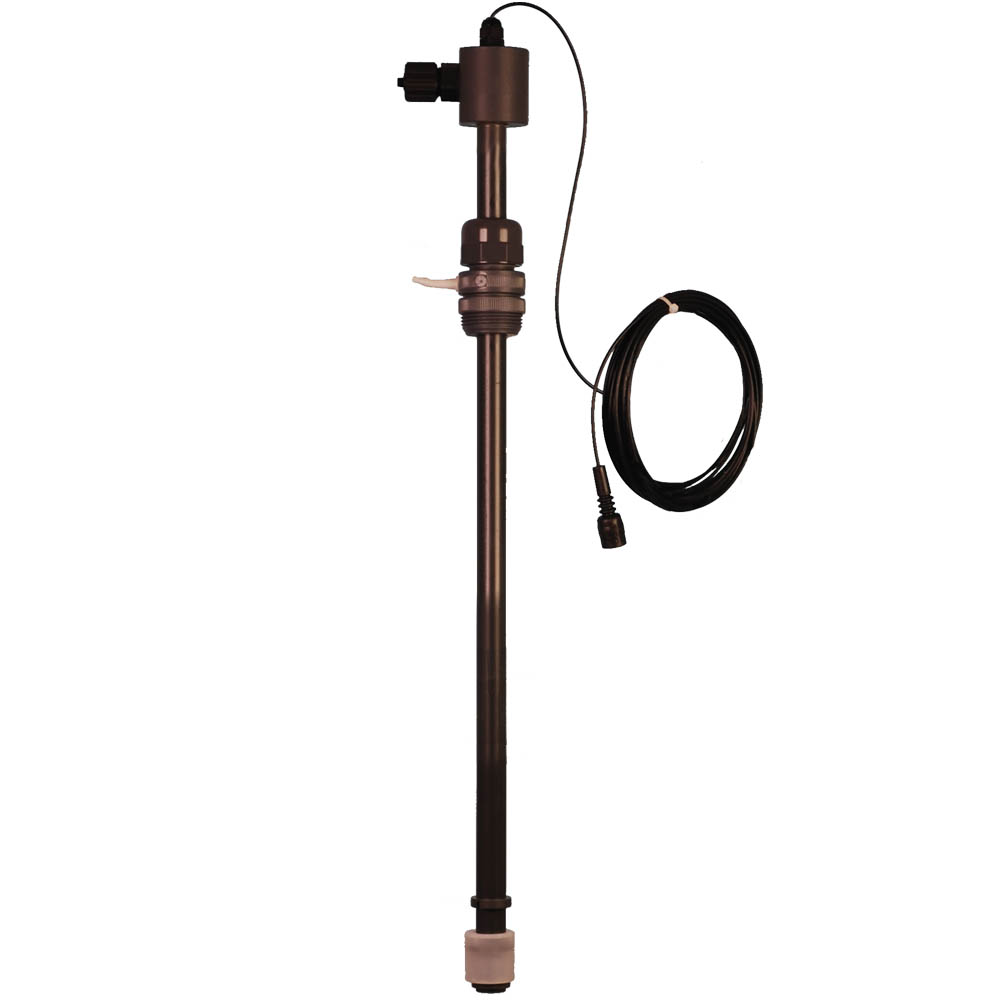

EMEC LASP Suction Lance with Single Float
EMEC LASP Suction Lance with Single Float
- Model LASP4 for pumps up to 10 l/hr (4×6 hose)
- Model LASP5 for pumps > 10 l/hr (6×8 hose & larger)
- Single Level Float Switch (Dual float avail on request)
- Foot Valve & Filter
- Adjustable height
- Viton or EPDM O-ring options available for Acid or Caustic dosing applications
- Standard Lengths 63cm or 122cm – Suitable for IBCs (Other lengths avail on request)
- 3/8 inch and 1/2 inch Fittings available to suit optional tube sizes
Description
EMEC LASP4_5_6 Suction Lances Data Sheet R11-19
| Name |
|---|
|
EMEC LASP4_5_6 Suction Lances Data Sheet R11-19
|
Additional information
| Variables Measured | Level |
|---|---|
| Outputs | Volt Free Contacts NO/NC |
| Process Connection | 1-1/2 inch BSP Male |
| Materials | EPDM O-rings, FKM B Viton O-rings |
| IP Rating | IP65 |
