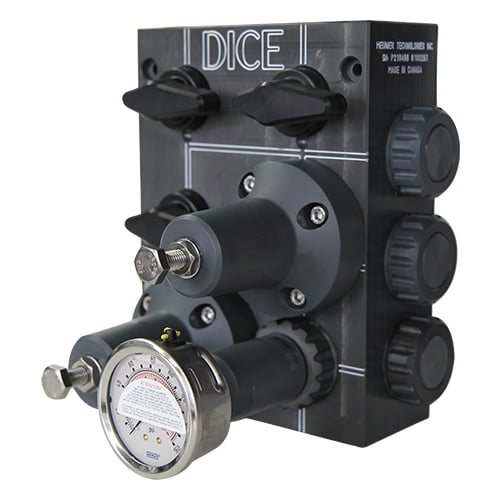

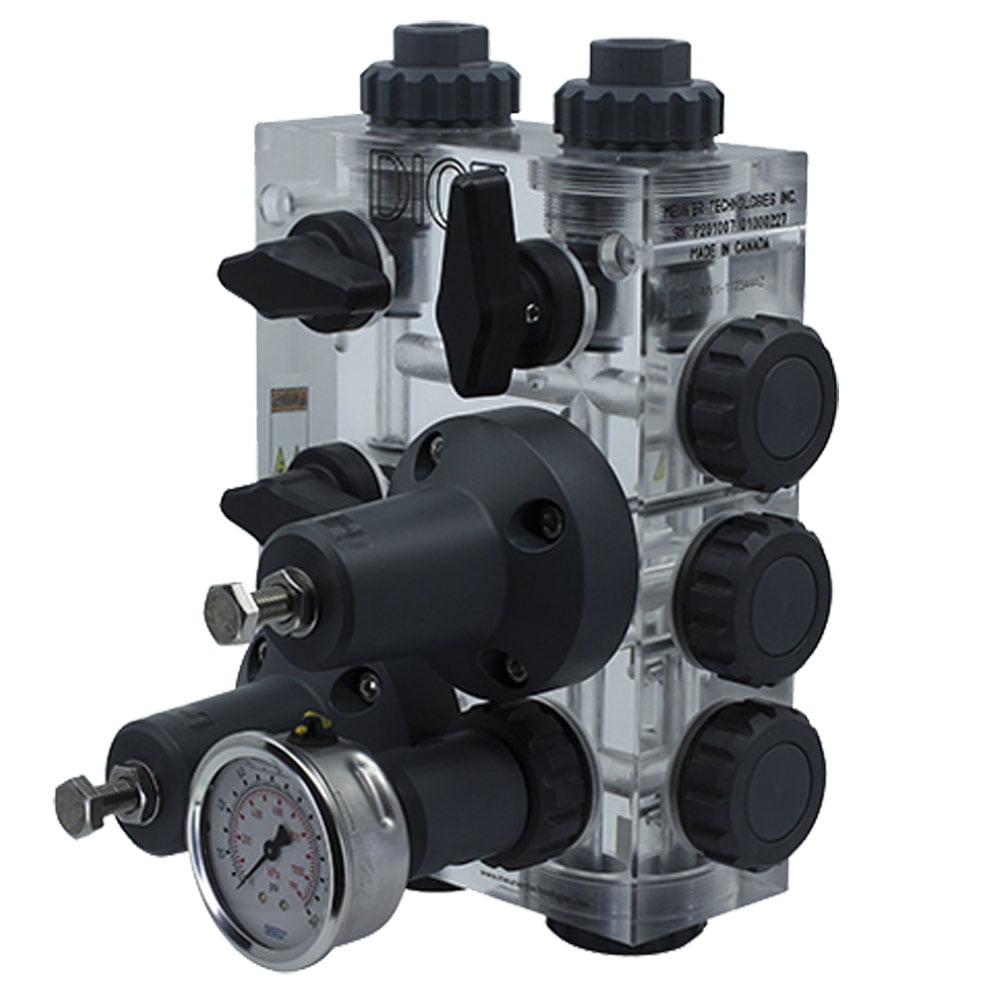

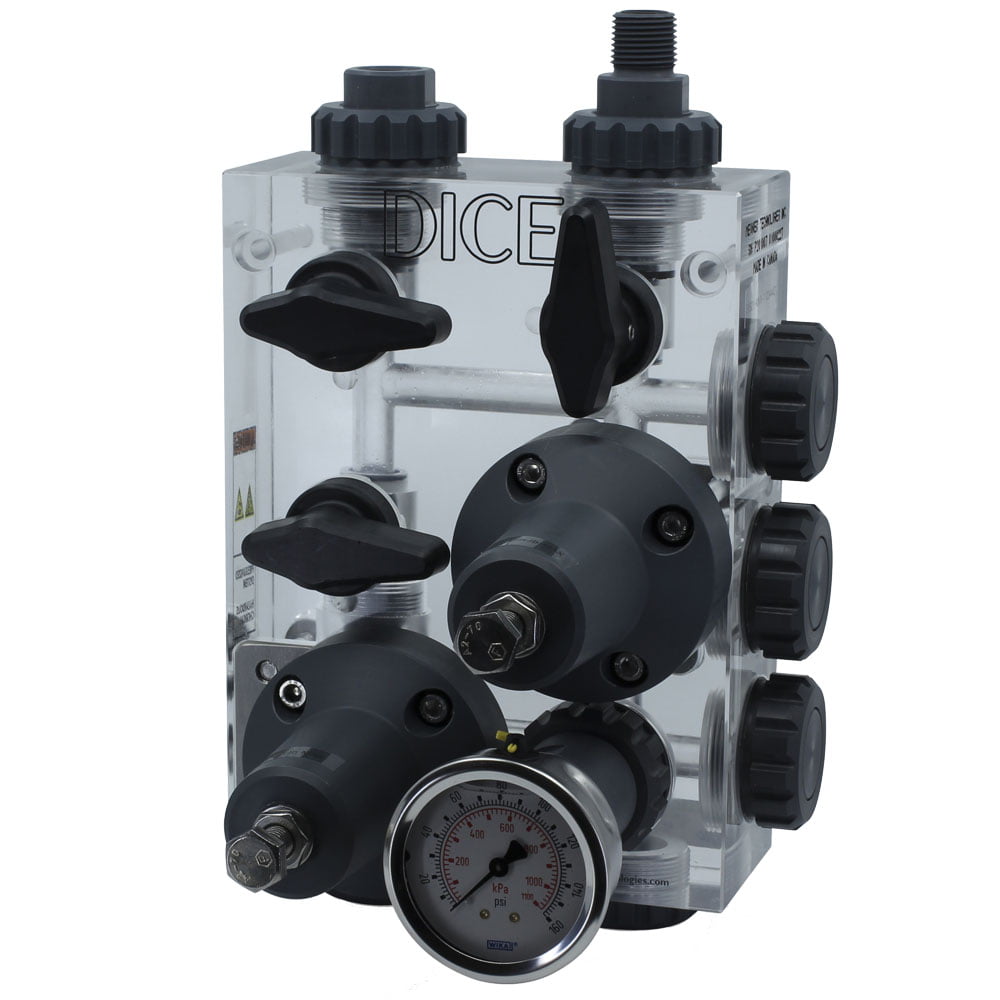

DS Suction Lift Dosing Module

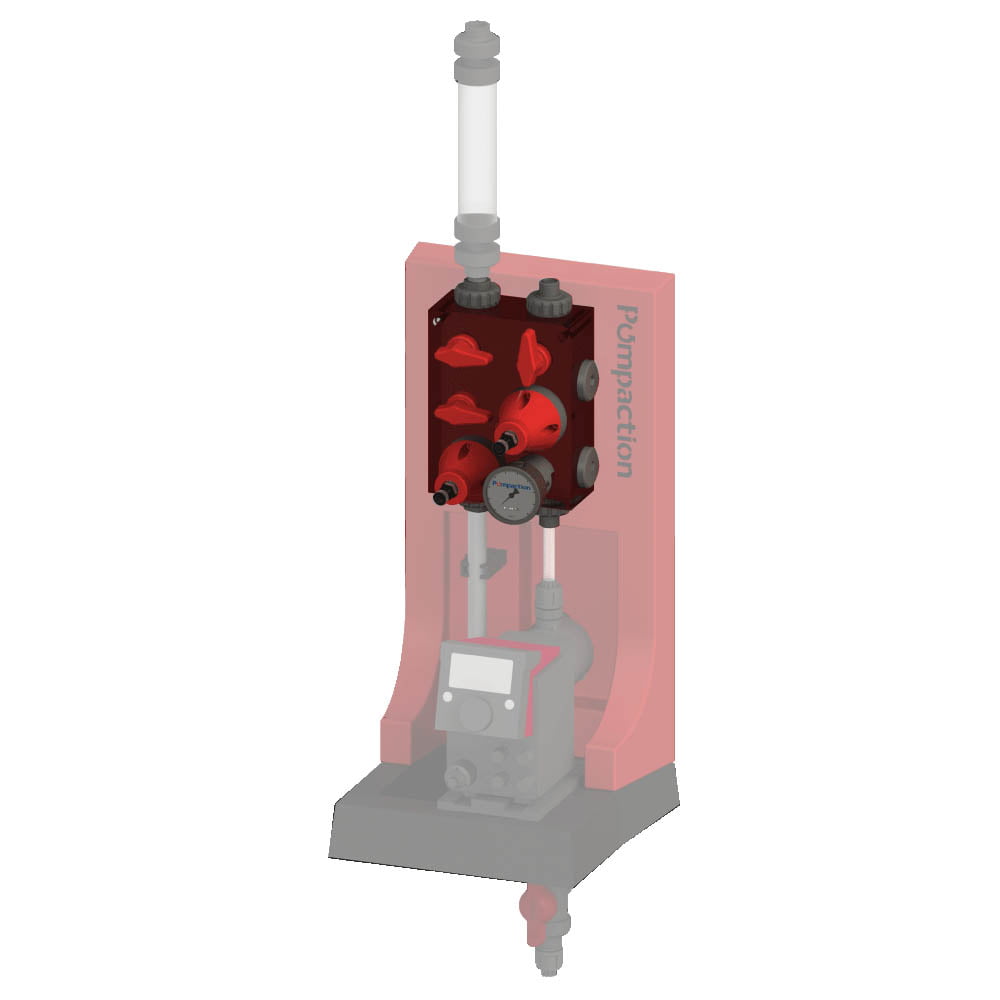

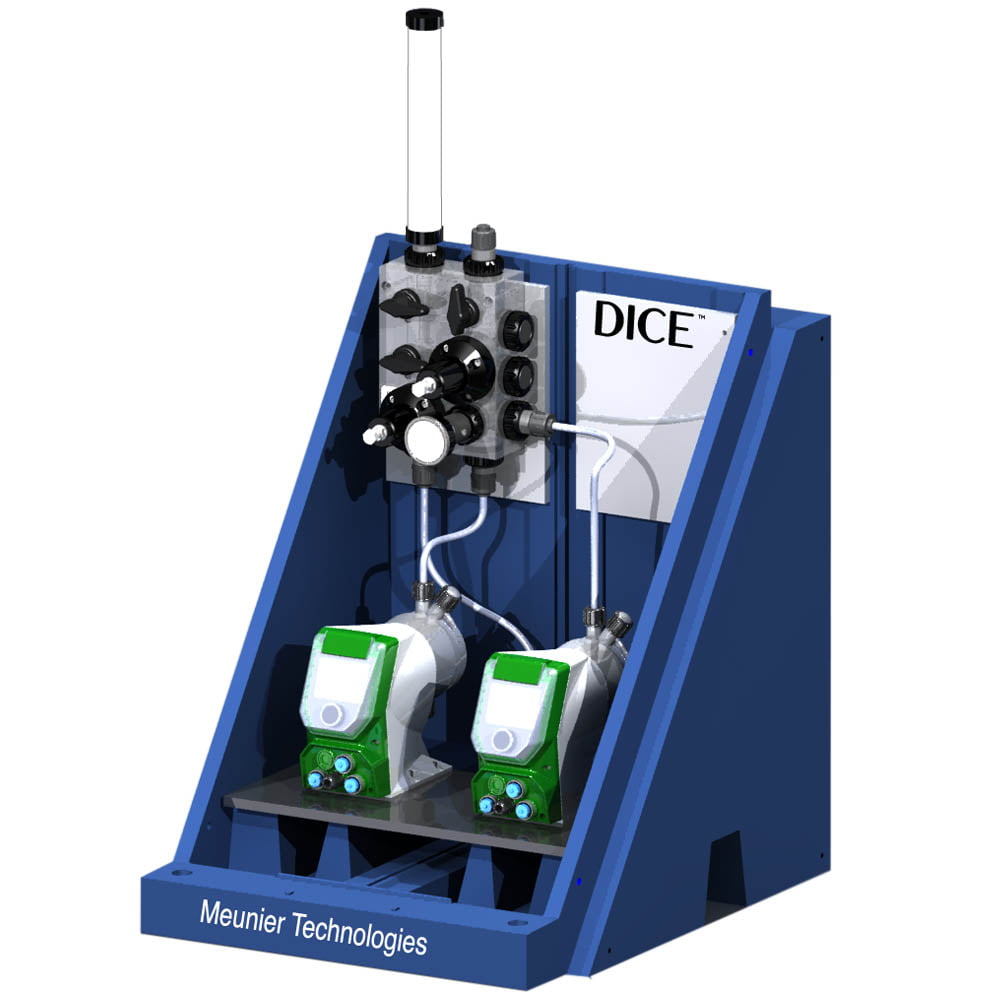

DICE, from Meunier Technologies in Canada, is a patented product supplied to the Australian market by Convergent Water Controls. DICE offers a complete replacement for manifolds traditionally used in dosing skids, including modular dosing skid solutions. For more information, refer to the DICE DM and DS models comparison DICE DM / DS Comparison

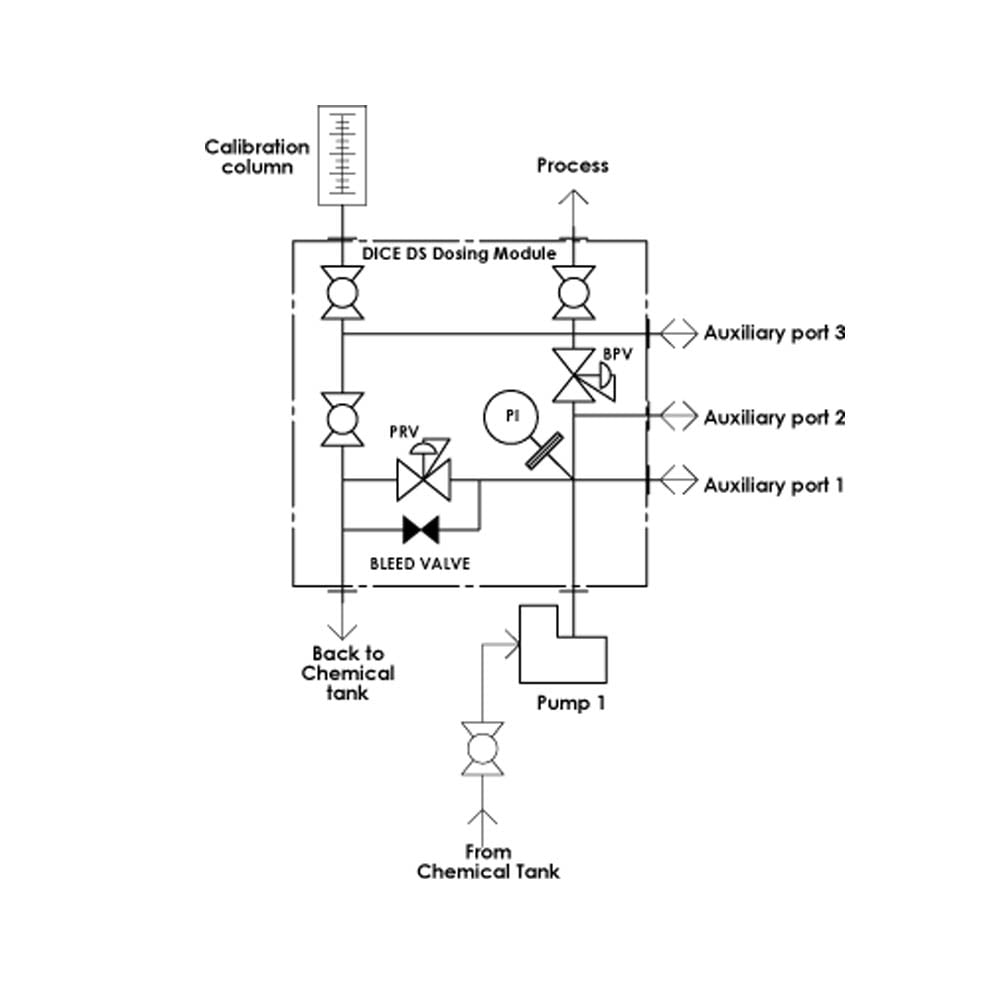

The DICE system integrates all components required for a typical chemical dosing system, including configurations compatible with suction lift and flooded suction applications. Its block design ensures a compact and reliable system that overcomes common issues in dosing pump setups, such as chemical leaks, mechanical fatigue from dosing pump pulsation, and poor joint performance in traditional piping systems

• Block design ensures a compact and reliable system.
• Eliminates glued or threaded connections which significantly reduces chances of chemical leaks
• Compact design that significantly minimises footprint and skid size.
• Simple installation – only 3 bolts and 4 connections required
• Extremely high quality due to individual machined components.
• Overcomes issues of traditional piping systems such as bad joints, many potential leakage points and continual dosing pump pulsation causing mechanical fatigue.
• Optional Calibration column installs directly onto DICE

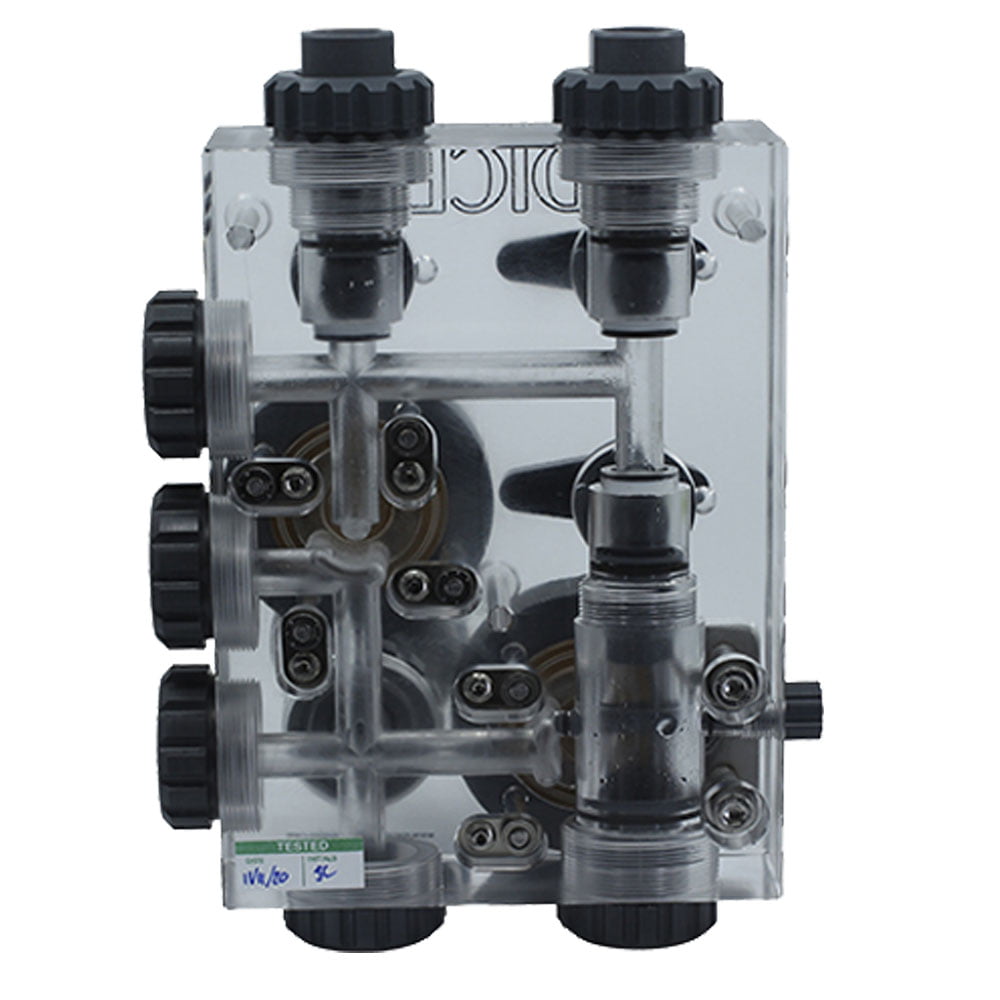

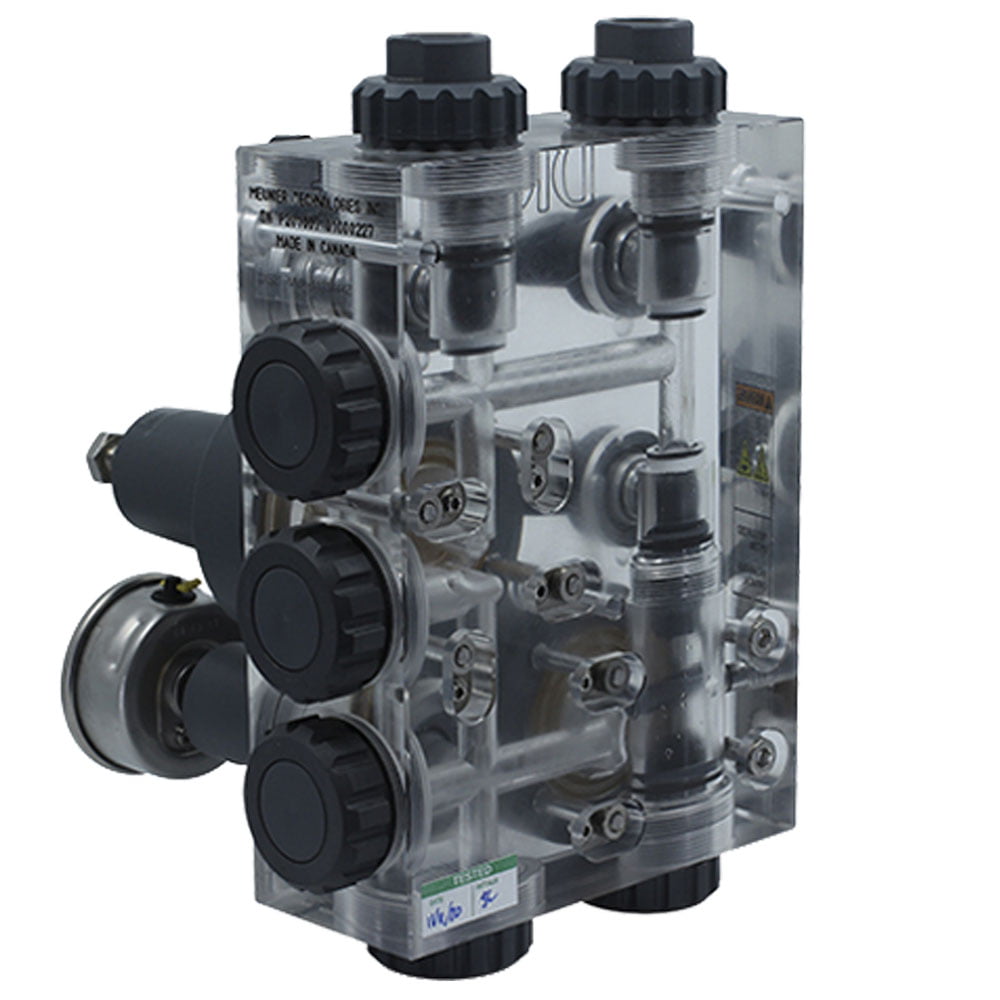

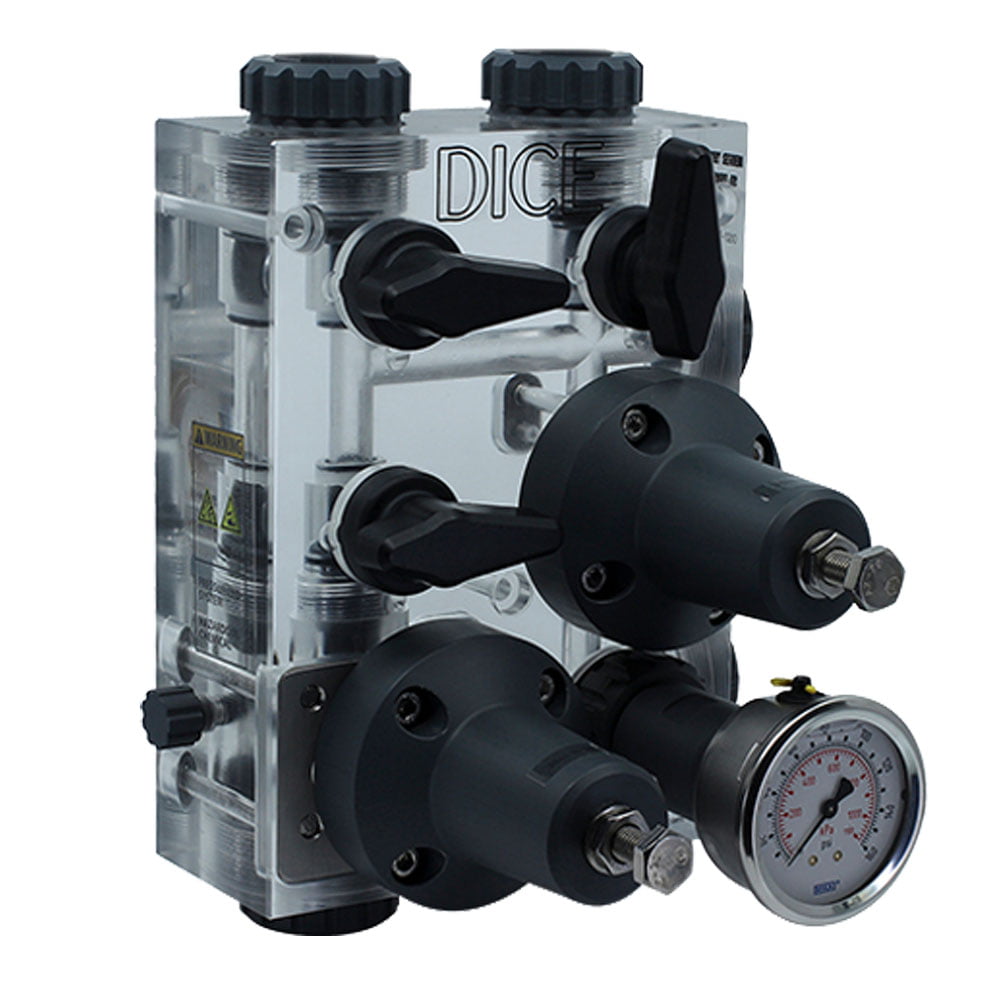

• Standard configuration: 1/2″, 150 psi max, Transparent Acrylic Body, PVC parts

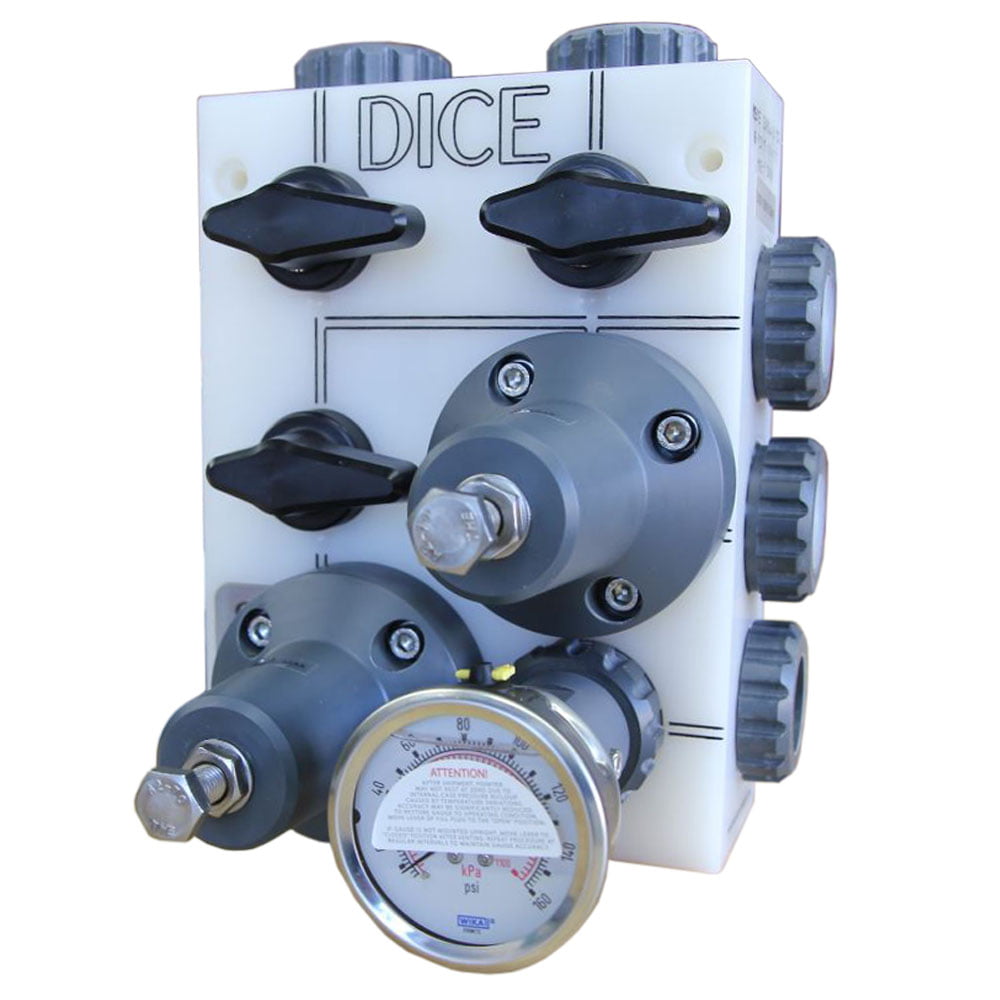

• On request: 1″, 250 psi max, Block in PVC or PVDF
• O-ring options: Viton or EPDM
• Multiple port configurations available: Solvent Weld, NPT Female, BSP or NPT male for hose connection kit
• Possibility of having only 1 dosing module for 3 pumps
• Patented Design – Meunier Technologies

The DICE system also supports flooded suction configurations offering reliability and versatility in various chemical dosing applications.
