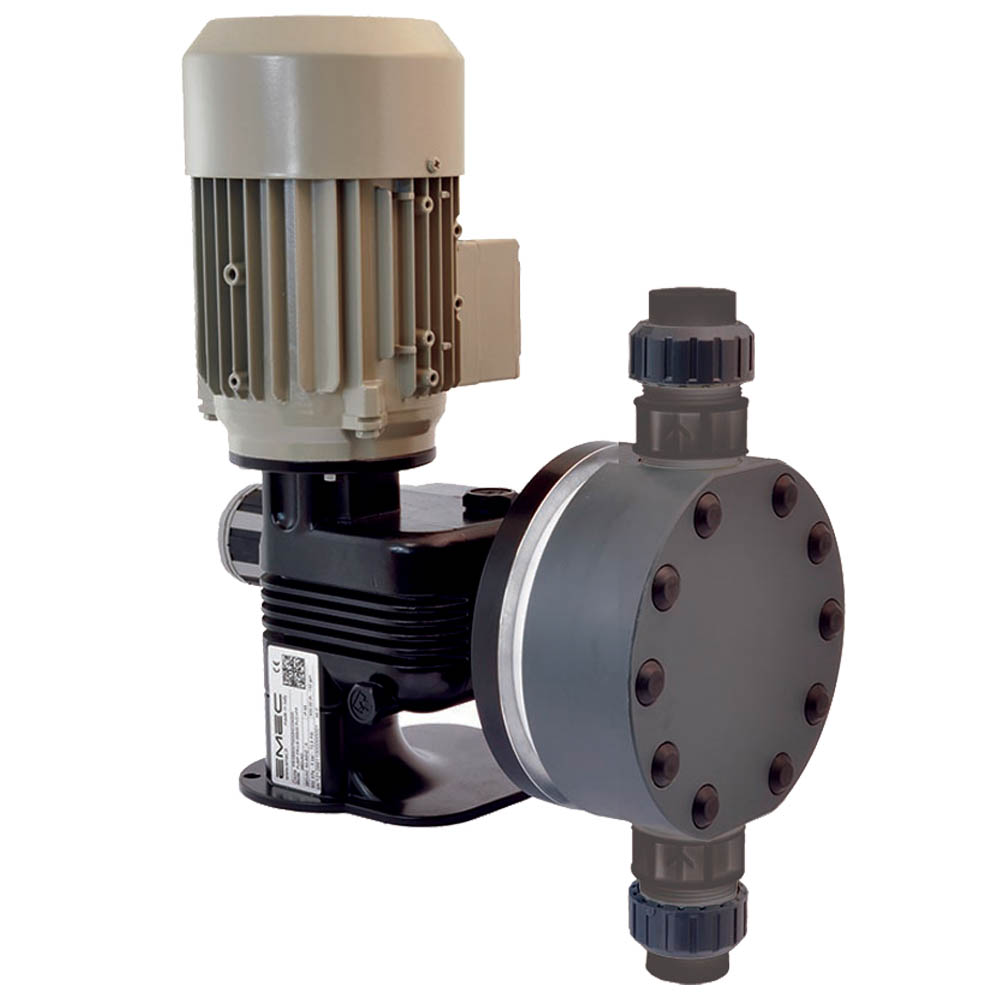

EMEC PRIUS PD 005 530 Motor Driven dosing pump (530l/hr @ 5bar)

  • 530 l/hr @ 5 bar
  • PP or PVDF head with Glass Balls
  • PP head with SS balls
  • All Heads incorporate automatic pressure relief valve
  • 175 spm (50Hz)
  • 415VAC 0.37kW 3Ph Motor (240VAC 1Ph motor available on request)
  • G 1-1/2 inch barrel unions with 1 inch FBSP ports
Compare
SKU: EMEC PD 005 530 Category: Tag: Brand:

Description

EMEC PD 005 530 PD12 SS_PD18 SS_PDMF PD12 SS Spare Parts Exploded Rev 01
EMEC PD 005 530 PV12_PV18_PDMF PV12 Spare Parts Exploded Rev 01
EMEC PD Data Sheet R1-04-16
EMEC PRIUS PD Instruction Manual R1-07-17
EMEC PRIUS Pumps Catalogue
EMEC Pump Delivery Curves PRIUS D rev R2-11-21
EMEC PD 005 530 PD12 SS_PD18 SS_PDMF PD12 SS Spare Parts Exploded Rev 01
EMEC PD 005 530 PV12_PV18_PDMF PV12 Spare Parts Exploded Rev 01
EMEC PD Data Sheet R1-04-16
EMEC PRIUS PD Instruction Manual R1-07-17
EMEC PRIUS Pumps Catalogue
EMEC Pump Delivery Curves PRIUS D rev R2-11-21
Name

Additional information

Configuration

Foot Mount

Port Size

1 inch BSP Female

Process Connection

1 inch BSP Female

Materials

EPDM O-rings, FKM B Viton O-rings, Glass Balls, PTFE Diaghragm/s, PVC Head, PVC Valve Bodies

IP Rating

IP55

Models/ Part Numbers

  • Add FP to Product Code for Viton seals
  • Add EP to Product Code for EPDM seals
