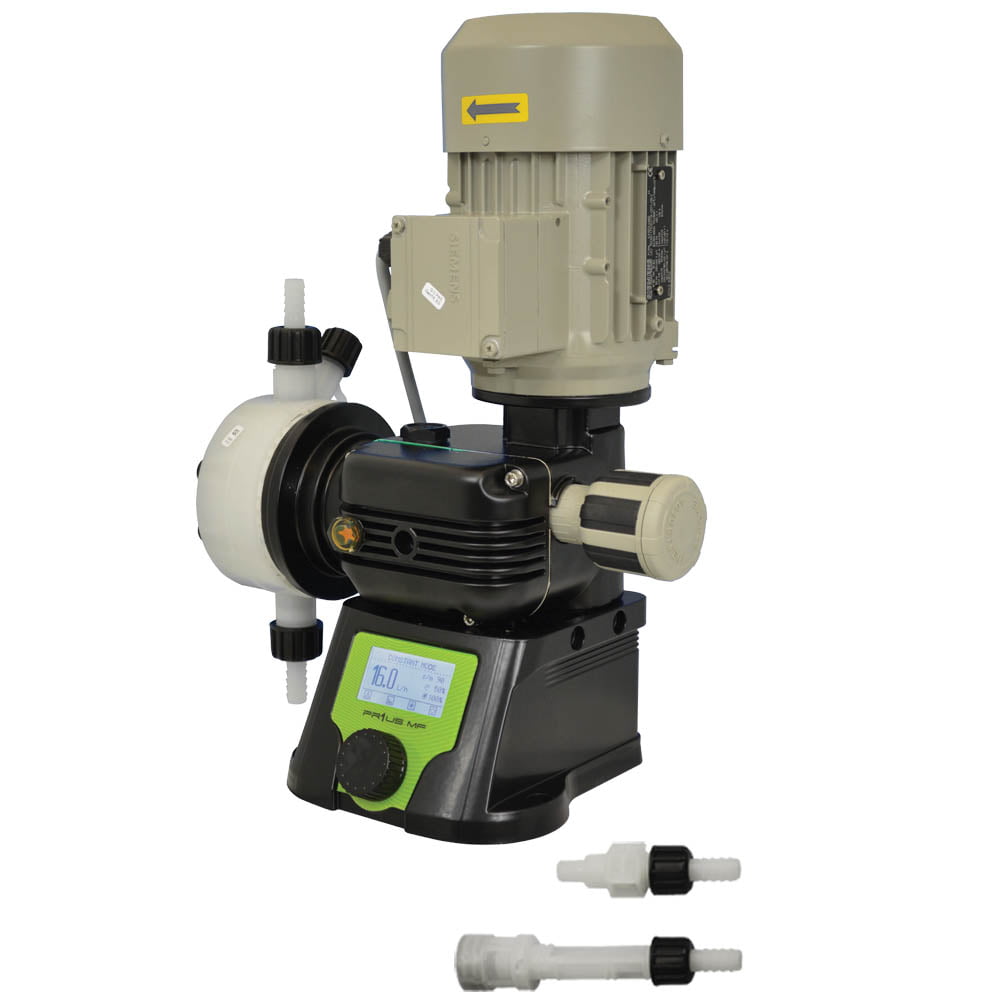

EMEC PDMF 007 160 Motor Driven dosing pump (160 l/hr @ 7 bar) 1
EMEC PRIUS PDMF 007 160 Motor Driven dosing pump (160 l/hr @ 7 bar)
- Working modes: Constant, ppm, %, mlq, pause-work, weekly timer, 4-20mA, pulse, Volt and Batch
- Output alarms and Standby input
- 160 l/hr @ 7 bar
- PVDF head
- Ceramic balls
- 175 spm (50Hz)
- 240VAC Power Supply
- 3/4 inch connections for 13x16mm hose
- Hose/Tube connections via Hose barb and hose clamp
- Includes installation kit – Foot valve, tubing and 3/4 inch Injection valve
- Solvent weld PVC suction/delivery fittings optional
SKU: EMEC PDMF 007 160
Category: Multi Function Digital Motor Driven Pumps
Tag: emec pumps
Brand: emec
Description
EMEC PD 007 160 KV19_KV12_PDMF KV12 Spare Parts Exploded Rev 01
EMEC PD 007 160 PD19 SS_PD12 SS_PDMF PD12 SS Spare Parts Exploded Rev 01
EMEC PRIUS PDMF Data Sheet R11-19 2022
EMEC PRIUS PDMF Instruction Manual R1-09-17
EMEC PRIUS Pumps Catalogue
EMEC Pump Delivery Curves PRIUS D rev R2-11-21
| Name |
|---|
|
EMEC PD 007 160 KV19_KV12_PDMF KV12 Spare Parts Exploded Rev 01
|
|
EMEC PD 007 160 PD19 SS_PD12 SS_PDMF PD12 SS Spare Parts Exploded Rev 01
|
|
EMEC PRIUS PDMF Data Sheet R11-19 2022
|
|
EMEC PRIUS PDMF Instruction Manual R1-09-17
|
|
EMEC PRIUS Pumps Catalogue
|
|
EMEC Pump Delivery Curves PRIUS D rev R2-11-21
|
Additional information
| Configuration | Foot Mount |
|---|---|
| Inputs | 4-20mA, Pulse, Standby Dry Contact, Tank Level Dry Contact, Water Meter Make-up Pulses |
| Process Connection | 3/4 inch BSP Male |
| Materials | Ceramic Balls, EPDM O-rings & Seats, FKM B O-rings & Seats, PTFE Diaghragm/s, PVDF Head, PVDF Valve Bodies |
| IP Rating | IP55 |
| Install Kit Included | 13x16mm hose, injection valve & foot valve |
| Optional Tube Size | Solvent weld fittings for 1/2 inch BS pipe |
Models / Part Numbers
- Add FP to Product Code for Viton seals
- Add EP to Product Code for EPDM seals
