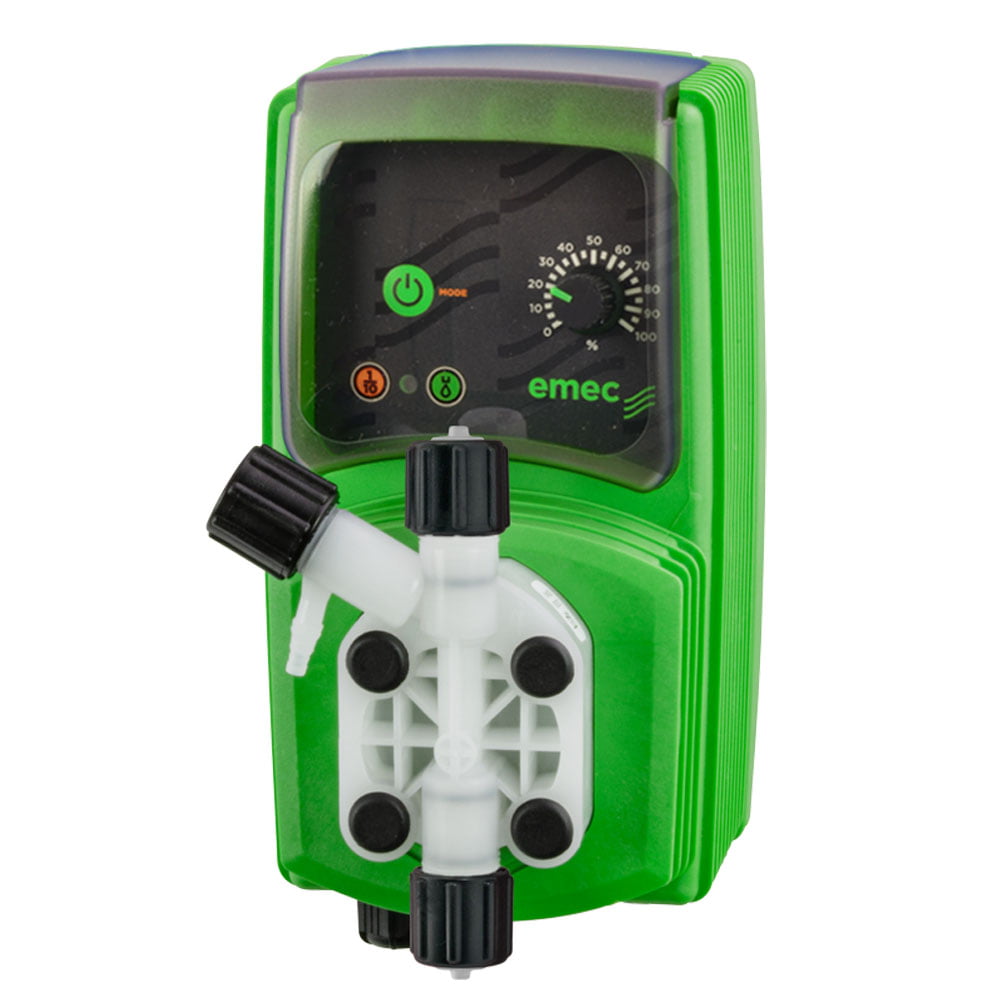

EMEC VCO & VACO Constant Mode Pumps (1 l/hr to 15 l/hr)

  • Includes Installation Kit, i.e. foot valve, injection valve, 2m of Suction tube and 2m of Delivery tube
  • Standard head: PVDF with Viton Seals (suitable for Acid or Chlorine)
  • Head for Caustic: PP with EPDM seals and SS Balls
  • Speed adjustment (1-100%) for varying dose rate
  • Additional turndown with 10:1 speed divider
  • Double ball check valves in foot valve, suction & delivery valves
  • Long lasting Solid Teflon diaphragm
  • Reliable & accurate dosing
  • Wall mounting with only 2 screws
  • TIP:  see available Models / Part Numbers below
Compare
SKU: EMEC VCO / EMEC VACO Category: Tag: Brand:

Description

EMEC Chemical Compatibility Table April 2013
EMEC VACO Spare Parts Exploded Rev 02
EMEC VACO Data Sheet R1-05-10
EMEC VCO 0215_0217 FP Spare Parts Exploded Rev 01
EMEC VCO 0215_0217 PP EP SS Spare Parts Exploded Rev 01
EMEC VCO 1502_0706_0310 EP Spare Parts Exploded Rev 01
EMEC VCO 1502_0706_0310 FP Spare Parts Exploded Rev 02
EMEC VCO 1502_0706_0310 PP EP SS Spare Parts Exploded Rev 01
EMEC VCO Data Sheet R1-07-13
EMEC VCO-VACO Instruction Manual R2-09-20
EMEC Chemical Compatibility Table April 2013
EMEC VACO Spare Parts Exploded Rev 02
EMEC VACO Data Sheet R1-05-10
EMEC VCO 0215_0217 FP Spare Parts Exploded Rev 01
EMEC VCO 0215_0217 PP EP SS Spare Parts Exploded Rev 01
EMEC VCO 1502_0706_0310 EP Spare Parts Exploded Rev 01
EMEC VCO 1502_0706_0310 FP Spare Parts Exploded Rev 02
EMEC VCO 1502_0706_0310 PP EP SS Spare Parts Exploded Rev 01
EMEC VCO Data Sheet R1-07-13
EMEC VCO-VACO Instruction Manual R2-09-20
Name

Additional information

Configuration

Wall Mount

Max Flow / Pressure (Head)

15 l/hr @ 2 bar, 1 l/hr @ 5 bar, 10 l/hr @ 10 bar, 10 l/hr @ 3 bar, 2 l/hr @ 15 bar, 6 l/hr @ 7 bar

Process Connection

1/2 inch BSP Male

Materials

Ceramic Balls, EPDM O-rings & Seats, FKM B O-rings & Seats, PP Head, PP Valve Bodies, PTFE Diaghragm/s, PVDF Head, PVDF Valve Bodies, SS Balls

Max Viscosity

100 cps, 600 cps with optional SS balls

IP Rating

IP65

Install Kit Included

4x6mm tube (<12 l/hr) or 6x8mm tube (12 l/hr or more), injection valve & foot valve

Optional Tube Size

1/4 inch, 3/8 inch, 5×8 or 6x9mm

Models / Part Numbers

  • EMEC VCO 05 01 for max 1 l/hr @ 5 bar
  • EMEC VCO 15 02 for max 2 l/hr @ 15 bar
  • EMEC VCO 07 06 for max 6 l/hr @ 7 bar
  • EMEC VCO 10 10 for max 10 l/hr @ 10 bar
  • EMEC VCO 03 10 for max 10 l/hr @ 3 bar
  • EMEC VCO 02 15 for max 15 l/hr @ 2 bar
  • Add FP to Product Code above for PVDF head, Viton seals & CE Balls
  • Add EP to Product Code above for PVDF head, EPDM seals & CE Balls
  • Add PP EP SS to Product Code above for PP head, EPDM seals & SS Balls



Chlorine Pumps

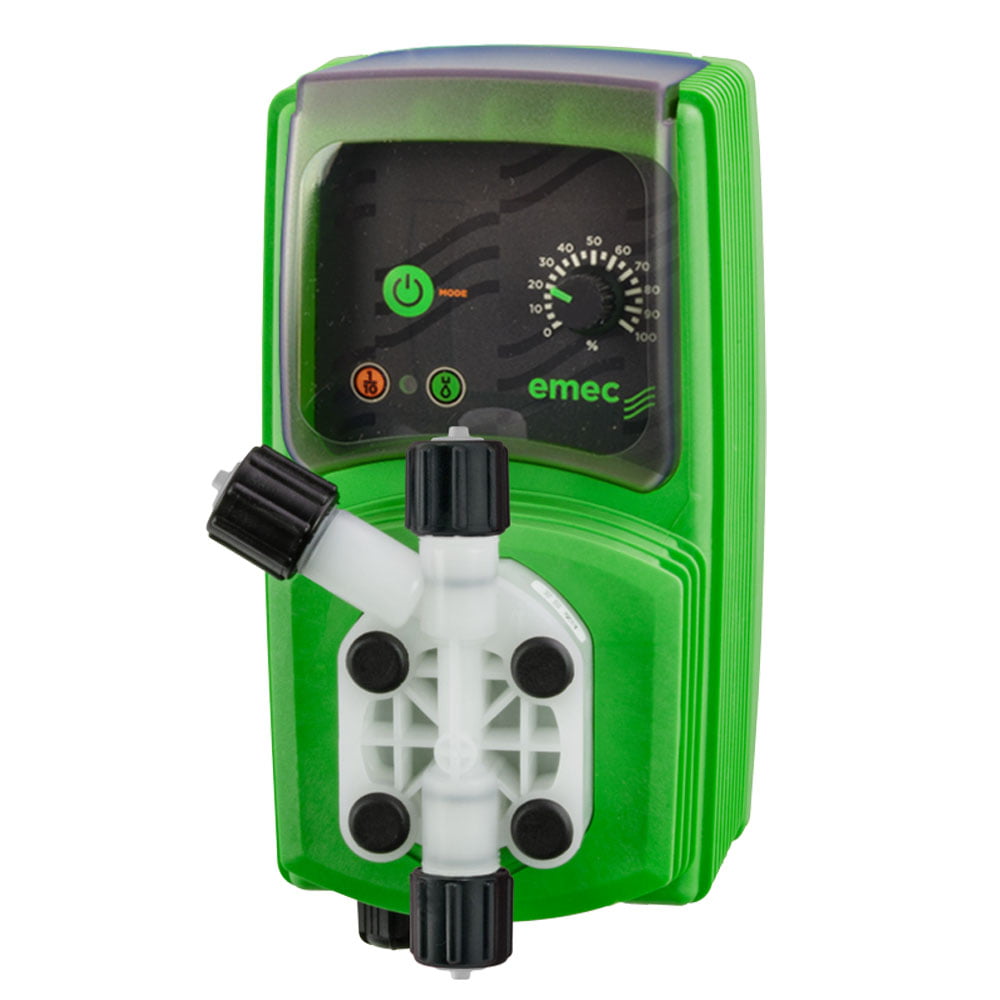

  • EMEC VACO 10 02 FP for max 2 l/hr @ 10 bar (PVDF degassing head)
  • EMEC VACO 07 04 FP for max 4 l/hr @ 7 bar (PVDF degassing head)
  • EMEC VACO 03 07 FP for max 7 l/hr @ 3 bar (PVDF degassing head)
  • EMEC VACO 02 12 FP for max 12 l/hr @ 2 bar (PVDF degassing head)
