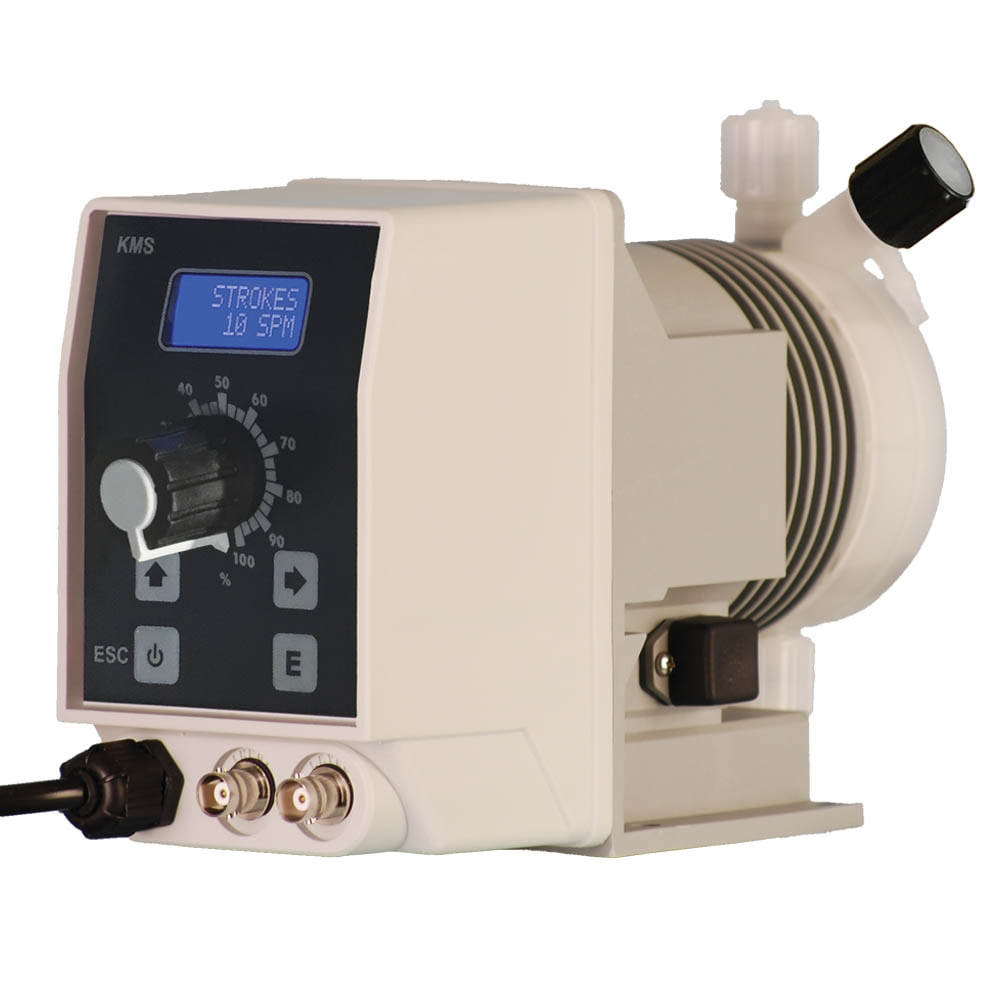

EMEC KMSPH Pump with pH Control (10l/hr @ 5 bar)

  • Includes foot valve, Injection valve, 2M of Suction tubing and 2M of Discharge tubing
  • Reliable & accurate dosing
  • Float on foot valve stops pump dosing when chemical level in tank is low
  • Speed adjustment automatic (demand dependent)
  • Double ball check valves in foot valve, suction & discharge valves
  • Solid Teflon diaphragm prevents wear
  • Pump enable/standby input
  • Spring loaded injection valve with ceramic ball
  • Simple mounting
  • PVDF head – PP available for strong Caustic
Compare
SKU: EMEC KMSPH Category: Tag: Brand:

Description

EMEC-Chemical-Compatibility-Table-April-2013.pdf
EMEC-KMF-KAMF-Data-Sheet-R1-11-15.pdf
EMEC-KMS.pdf
EMEC-Chemical-Compatibility-Table-April-2013.pdf
EMEC-KMF-KAMF-Data-Sheet-R1-11-15.pdf
EMEC-KMS.pdf
Name

Additional information

Configuration

Foot Mount

Variables Measured

Level, pH

Inputs

pH Probe, Standby Dry Contact, Tank Level Dry Contact

Max Flow / Pressure (Head)

10 l/hr @ 5 bar

Process Connection

1/2 inch BSP Male

Materials

Ceramic Balls, EPDM O-rings & Seats, FKM B O-rings & Seats, PP Head, PP Valve Bodies, PTFE Diaghragm/s, PVDF Head, PVDF Valve Bodies, SS Balls

Max Viscosity

100 cps, 600 cps with optional SS balls

IP Rating

IP65

Install Kit Included

4x6mm tube, injection valve & foot valve with level float

Optional Tube Size

1/4 inch, 3/8 inch, 5×8 or 6x9mm

Models / Part Numbers

  • EMEC KMSPH 05 10 for max 10/hr @ 5 bar
  • Add FP to Product Code for Viton seals (Acid)
  • Add EP to Product Code for EPDM seals (Caustic)
