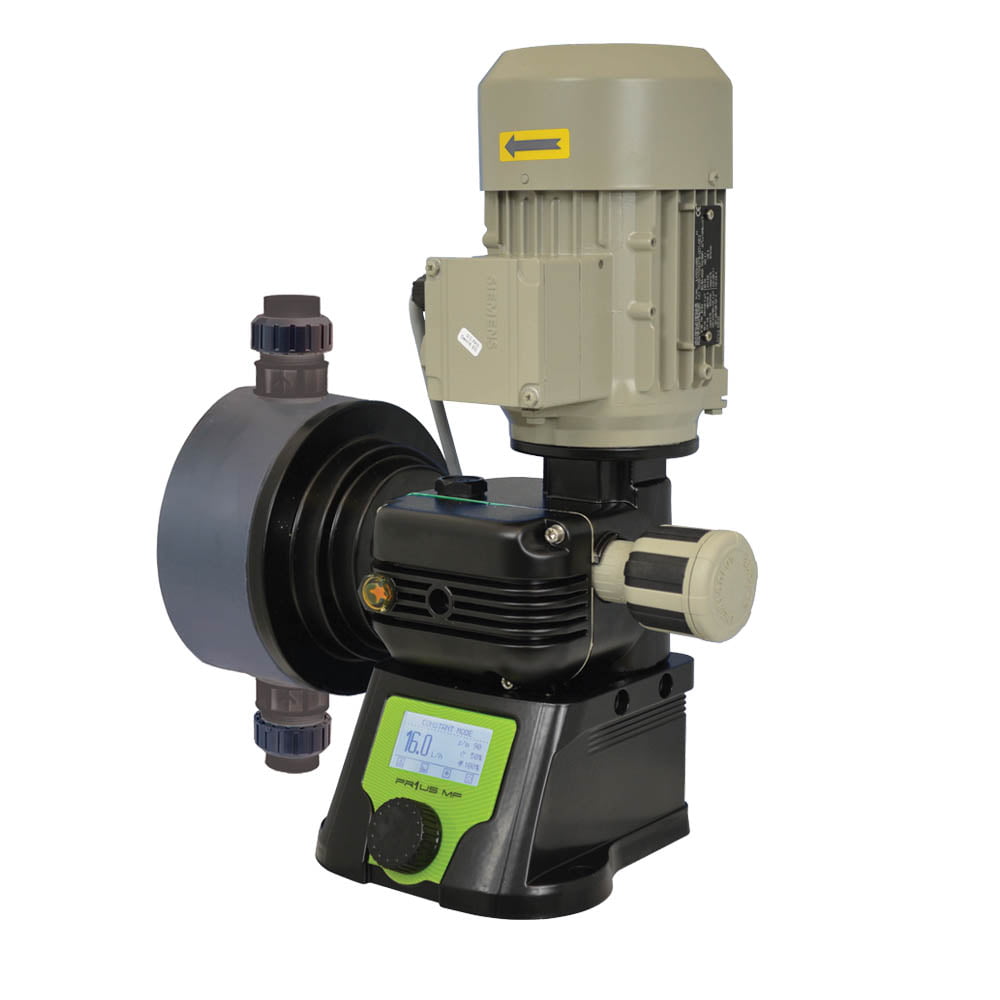

EMEC PDMF 005 530 Motor Driven dosing pump (530l/hr @ 5bar) 1
EMEC PRIUS PDMF 005 530 Motor Driven dosing pump (530l/hr @ 5bar)
- Working modes: Constant, ppm, %, mlq, pause-work, weekly timer, 4-20mA, pulse, Volt and Batch
- Output alarms and Standby input
- 530 l/hr @ 5 bar
- PP or PVDF head with Glass Balls
- PP head with SS balls
- All Heads incorporate automatic pressure relief valve
- 175 spm (50Hz)
- 240VAC Power Supply
- G 1-1/2 inch barrel unions with 1 inch FBSP ports
SKU: EMEC PDMF 005 530
Category: Multi Function Digital Motor Driven Pumps
Tag: emec pumps
Brand: emec
Description
EMEC PD 005 530 PD12 SS_PD18 SS_PDMF PD12 SS Spare Parts Exploded Rev 01
EMEC PD 005 530 PV12_PV18_PDMF PV12 Spare Parts Exploded Rev 01
EMEC PRIUS PDMF Data Sheet R11-19 2022
EMEC PRIUS PDMF Instruction Manual R1-09-17
EMEC PRIUS Pumps Catalogue
EMEC Pump Delivery Curves PRIUS D rev R2-11-21
| Name |
|---|
|
EMEC PD 005 530 PD12 SS_PD18 SS_PDMF PD12 SS Spare Parts Exploded Rev 01
|
|
EMEC PD 005 530 PV12_PV18_PDMF PV12 Spare Parts Exploded Rev 01
|
|
EMEC PRIUS PDMF Data Sheet R11-19 2022
|
|
EMEC PRIUS PDMF Instruction Manual R1-09-17
|
|
EMEC PRIUS Pumps Catalogue
|
|
EMEC Pump Delivery Curves PRIUS D rev R2-11-21
|
Additional information
| Configuration | Foot Mount |
|---|---|
| Inputs | 4-20mA, Pulse, Standby Dry Contact, Tank Level Dry Contact, Water Meter Make-up Pulses |
| Port Size | 1 inch BSP Female |
| Process Connection | 1 inch BSP Female |
| Materials | EPDM O-rings, FKM B Viton O-rings, Glass Balls, PTFE Diaghragm/s, PVC Head, PVC Valve Bodies |
| IP Rating | IP55 |
Models / Part Numbers
- Add FP to Product Code for Viton seals
- Add EP to Product Code for EPDM seals
