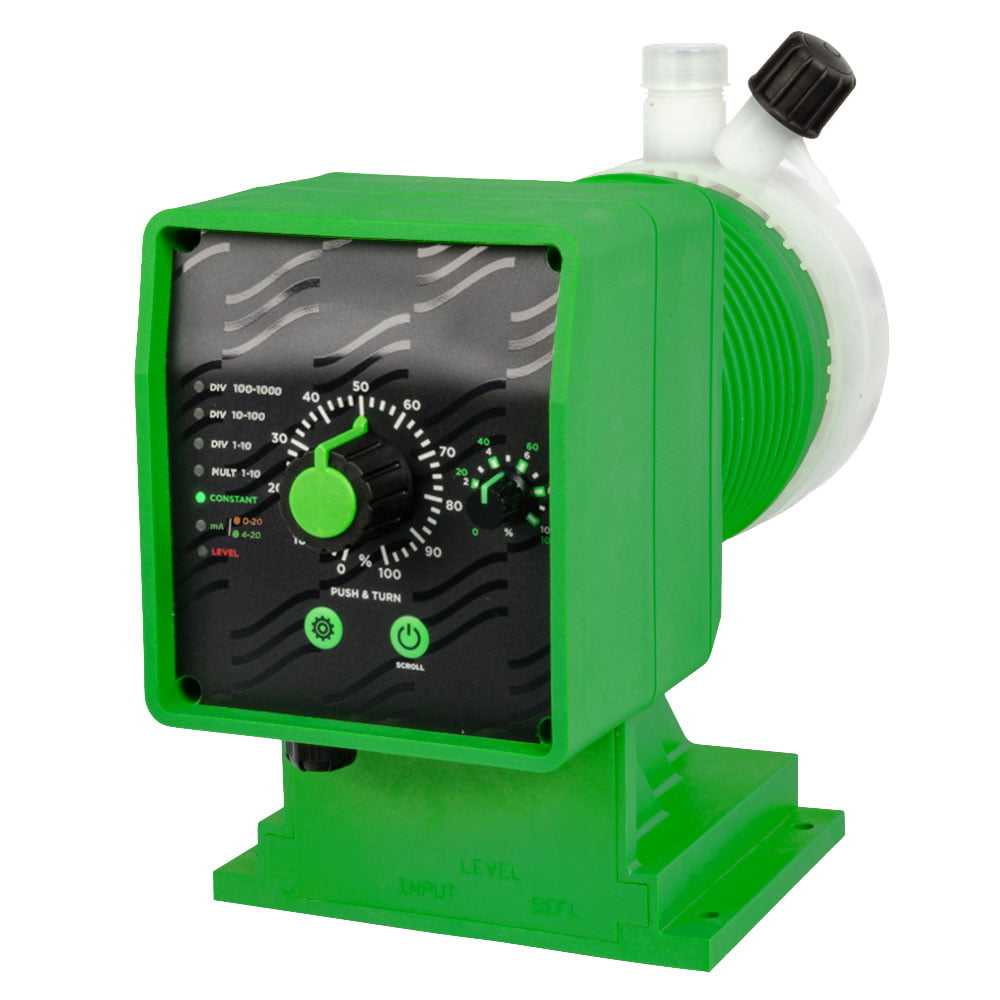

EMEC AMSPLUS Pump - Constant/Proportional Dosing

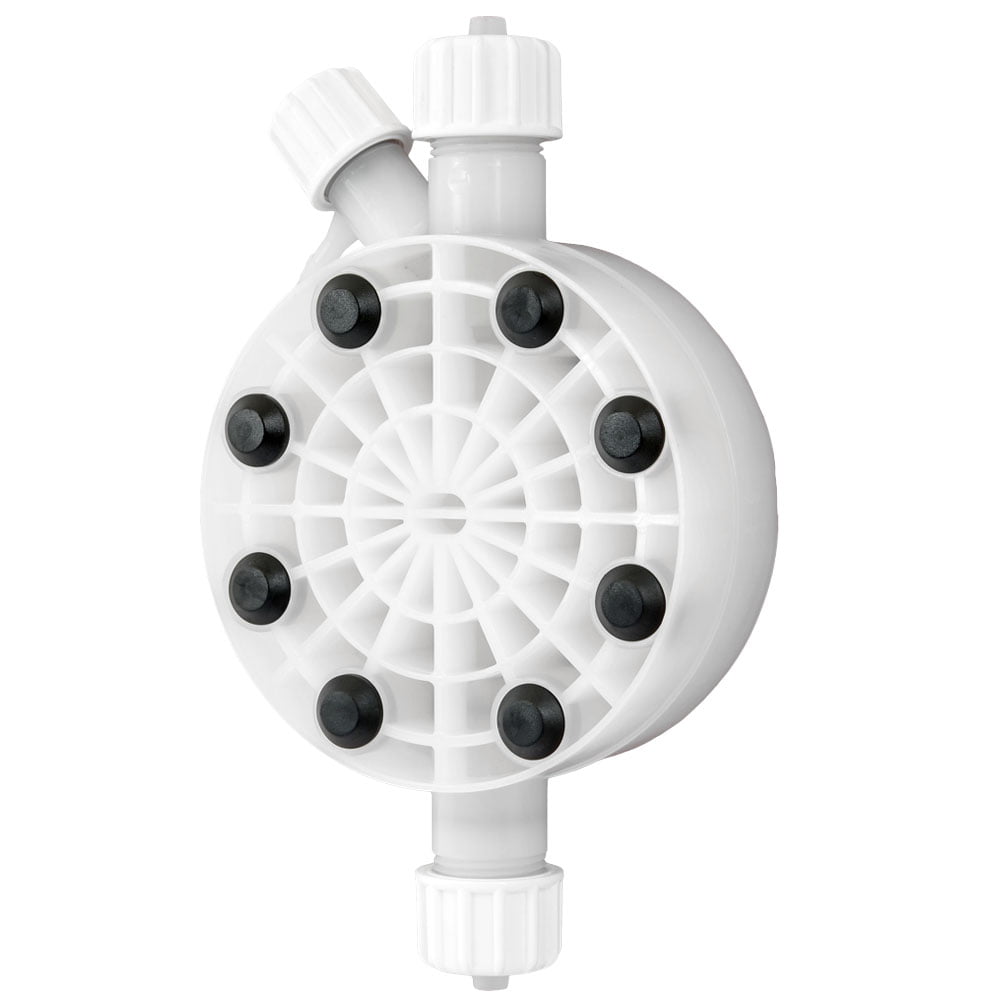

PP Head for EMEC A Series Pumps
EMEC AMSPLUS & AMSAPLUS Constant/Pulse/mA Mode Pumps (5 l/hr to 60 l/hr)
- Includes Installation Kit, i.e. foot valve, injection valve, 2m of Suction tube and 2m of Delivery tube
- Selectable Modes: Constant, Pulse with Multiply/Divide, mA
- Standard head: PVDF with Viton Seals
- Head for Caustic: PP with EPDM seals and SS Balls
- Degassing (self-venting) head for Chlorine: AMSAPLUS models only
- High Viscosity heads for Polymer: AMSPLUS LPV models only (8000 cps max.)
- Adjustable stroke length (10-100%)
- Float on foot valve stops pump dosing when chemical level in tank is low
- Double ball check valves in foot valve, suction & deliver valves
- Long lasting Solid Teflon diaphragm
- Reliable & accurate dosing
- Simple mounting with optional Front or Side Mount Bracket
- TIP: see available Models / Part Numbers below
SKU: EMEC AMSPLUS / EMEC AMSAPLUS
Category: Adjustable Stroke Length Solenoid Pumps
Tag: emec pumps
Brand: emec
Description
EMEC-AMSAPLUS_AMSAMF-0330-PMMA-Spare-Parts-Exploded-Rev-01.pdf
EMEC-AMSAPLUS_AMSAMF-0713-PMMA-Spare-Parts-Exploded-Rev-01.pdf
EMEC-AMSCOPLUS_AMSPLUS-1015_0340_0720-LPV-FP-Spare-Parts-Exploded-Rev-01.pdf
EMEC-AMSPLUS-AMSAPLUS-AMSCOPLUS-Data-Sheet-R1-07-15.pdf
EMEC-AMSPLUS-AMSAPLUS-AMSCOPLUS-incl-LPV-Instruction-Manual-R1-11-13.pdf
EMEC-AMSPLUS_AMSCOPLUS-0260-LPV-FP-Spare-Parts-Exploded-Rev-01.pdf
EMEC-AMSPLUS_AMSMF-0260_0340-FP-Spare-Parts-Exploded-Rev-01.pdf
EMEC-AMSPLUS_AMSMF-0260_0340-PP-EP-SS-Spare-Parts-Exploded-Rev-01.pdf
EMEC-AMSPLUS_AMSMF-0720-FP-Spare-Parts-Exploded-Rev-02.pdf
EMEC-AMSPLUS_AMSMF-0720-PP-EP-SS-Spare-Parts-Exploded-Rev-01.pdf
EMEC-AMSPLUS_AMSMF-2505-EP-4x6-Spare-Parts-Exploded-Rev-01.pdf
EMEC-AMSPLUS_AMSMF-2505-FP-4x6-Spare-Parts-Exploded-Rev-01.pdf
EMEC-Chemical-Compatibility-Table-April-2013.pdf
| Name |
|---|
|
EMEC-AMSAPLUS_AMSAMF-0330-PMMA-Spare-Parts-Exploded-Rev-01.pdf
|
|
EMEC-AMSAPLUS_AMSAMF-0713-PMMA-Spare-Parts-Exploded-Rev-01.pdf
|
|
EMEC-AMSCOPLUS_AMSPLUS-1015_0340_0720-LPV-FP-Spare-Parts-Exploded-Rev-01.pdf
|
|
EMEC-AMSPLUS-AMSAPLUS-AMSCOPLUS-Data-Sheet-R1-07-15.pdf
|
|
EMEC-AMSPLUS-AMSAPLUS-AMSCOPLUS-incl-LPV-Instruction-Manual-R1-11-13.pdf
|
|
EMEC-AMSPLUS_AMSCOPLUS-0260-LPV-FP-Spare-Parts-Exploded-Rev-01.pdf
|
|
EMEC-AMSPLUS_AMSMF-0260_0340-FP-Spare-Parts-Exploded-Rev-01.pdf
|
|
EMEC-AMSPLUS_AMSMF-0260_0340-PP-EP-SS-Spare-Parts-Exploded-Rev-01.pdf
|
|
EMEC-AMSPLUS_AMSMF-0720-FP-Spare-Parts-Exploded-Rev-02.pdf
|
|
EMEC-AMSPLUS_AMSMF-0720-PP-EP-SS-Spare-Parts-Exploded-Rev-01.pdf
|
|
EMEC-AMSPLUS_AMSMF-2505-EP-4x6-Spare-Parts-Exploded-Rev-01.pdf
|
|
EMEC-AMSPLUS_AMSMF-2505-FP-4x6-Spare-Parts-Exploded-Rev-01.pdf
|
|
EMEC-Chemical-Compatibility-Table-April-2013.pdf
|
Additional information
| Configuration | Foot Mount, Wall Mount with Optional Bracket |
|---|---|
| Variables Measured | Level |
| Inputs | 4-20mA, Pulse, Tank Level Dry Contact, Water Meter Make-up Pulses |
| Max Flow / Pressure (Head) | 15 l/hr @ 10 bar, 20 l/hr @ 7 bar, 40 l/hr @ 3 bar, 60 l/hr @ 2 bar |
| Process Connection | 1/2 inch BSP Male, 3/4 inch BSP Male |
| Materials | Ceramic Balls, EPDM O-rings & Seats, FKM B O-rings & Seats, PP Head, PTFE Diaghragm/s, PVDF Head, PVDF Valve Bodies, SS Balls |
| Max Viscosity | 100 cps, 600 cps with optional SS balls, 8000 cps in LPV Models |
| IP Rating | IP65 |
| Install Kit Included | 4x6mm tube (<12 l/hr), 6x8mm tube (20 l/hr) or 8x12mm tube (>30 l/hr), injection valve & foot valve with level float |
| Optional Tube Size | 3/8 inch, 1/2 inch, 5×8, 6×9 or 9x12mm |
Models / Part Numbers
- EMEC AMSPLUS 25 05 for max 5 l/hr @ 25 bar
- EMEC AMSPLUS 15 10 for max 10 l/hr @ 15 bar
- EMEC AMSPLUS 10 15 for max 15 l/hr @ 10 bar
- EMEC AMSPLUS 07 20 for max 20 l/hr @ 7 bar
- EMEC AMSPLUS 03 40 for max 40 l/hr @ 3 bar
- EMEC AMSPLUS 02 60 for max 60 l/hr @ 2 bar
- Add FP to Product Code above for PVDF head, Viton seals & CE Balls
- Add PP EP SS to Product Code above for PP head, EPDM seals & SS Balls
- Add LPV FP PMMA to Product above for high viscosity head
Chlorine Pumps
- EMEC AMSAPLUS 15 06 PMMA for max 6 l/hr @ 15 bar (PMMA degassing head)
- EMEC AMSAPLUS 10 10 PMMA for max 10 l/hr @ 10 bar (PMMA degassing head)
- EMEC AMSAPLUS 07 13 PMMA for max 13 l/hr @ 7 bar (PMMA degassing head)
- EMEC AMSAPLUS 03 30 PMMA for max 30 l/hr @ 3 bar (PMMA degassing head)
