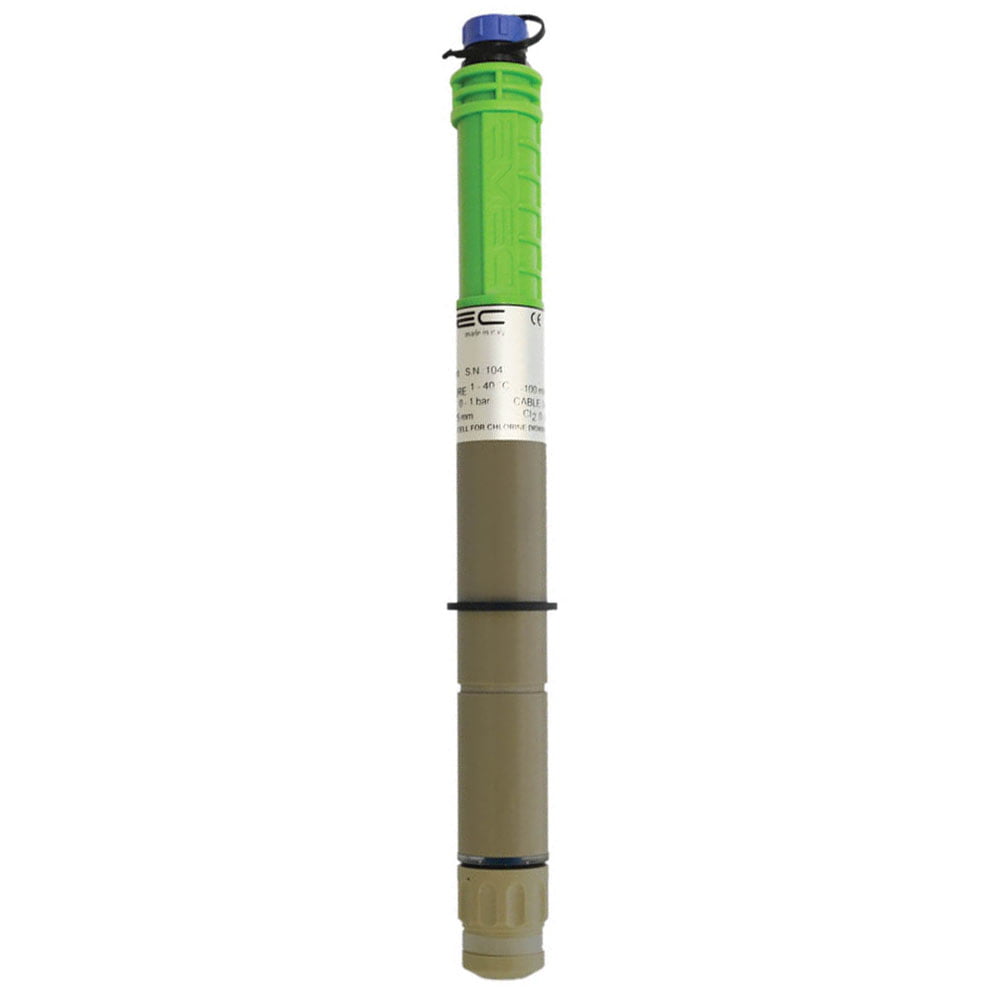

EMEC SCL18/SVCL18 Free Chlorine Amperometric Sensors (Auto Cleaning)

  • Free (Available) Chlorine Measurement for Sodium Hypochlorite
  • Self Cleaning
  • Probes available for measuring ranges of 0-2mg/L or 0-20mg/L
  • Sensor is not pH compensated/buffered. Use pH compensation if pH varies
  • Temperature Compensated for 5-70°C Operation
  • 8 Bar Max Pressure
  • Range of 5-9 pH
  • Digital interface to controller, i.e auto sensor and range detect (SCL only)
  • Analogue interface to controller (SVCL only)
  • TIP:  see available Models / Part Numbers below
Compare

Description

EMEC-SCL-Data-Sheet-R11-19
EMEC SCL17 & SCL18 Instruction Manual R3-05-21
EMEC-SVCL-Data-Sheet-R1-12-16
EMEC-SVCL-Instruction-Manual-R2-09-18
EMEC-SCL-Data-Sheet-R11-19
EMEC SCL17 & SCL18 Instruction Manual R3-05-21
EMEC-SVCL-Data-Sheet-R1-12-16
EMEC-SVCL-Instruction-Manual-R2-09-18
Name

Additional information

Variables Measured

Cl2, Temperature

Max Pressure / Temp

8 bar @ 70°C

IP Rating

IP65

Interface

Analogue, Digital

Models / Part Numbers

  • EMEC SCL18/2 Digital probe for LDSCL/LDSCLP/Centurio controller (0-2 ppm)
  • EMEC SCL18/20 Digital probe for LDSCL/LDSCLP/Centurio controller (0-20 ppm)
  • EMEC SVCL18/2 Analogue probe for LDCL controller (0-2 ppm)
  • EMEC SVCL18/20 Analogue probe for LDCL controller (0-20 ppm)
  • EMEC SVCL18/2 supersedes EMEC ECL18/2
  • EMEC SVCL18/20 supersedes EMEC ECL18/10
