EMEC-LDSCL-PLUS

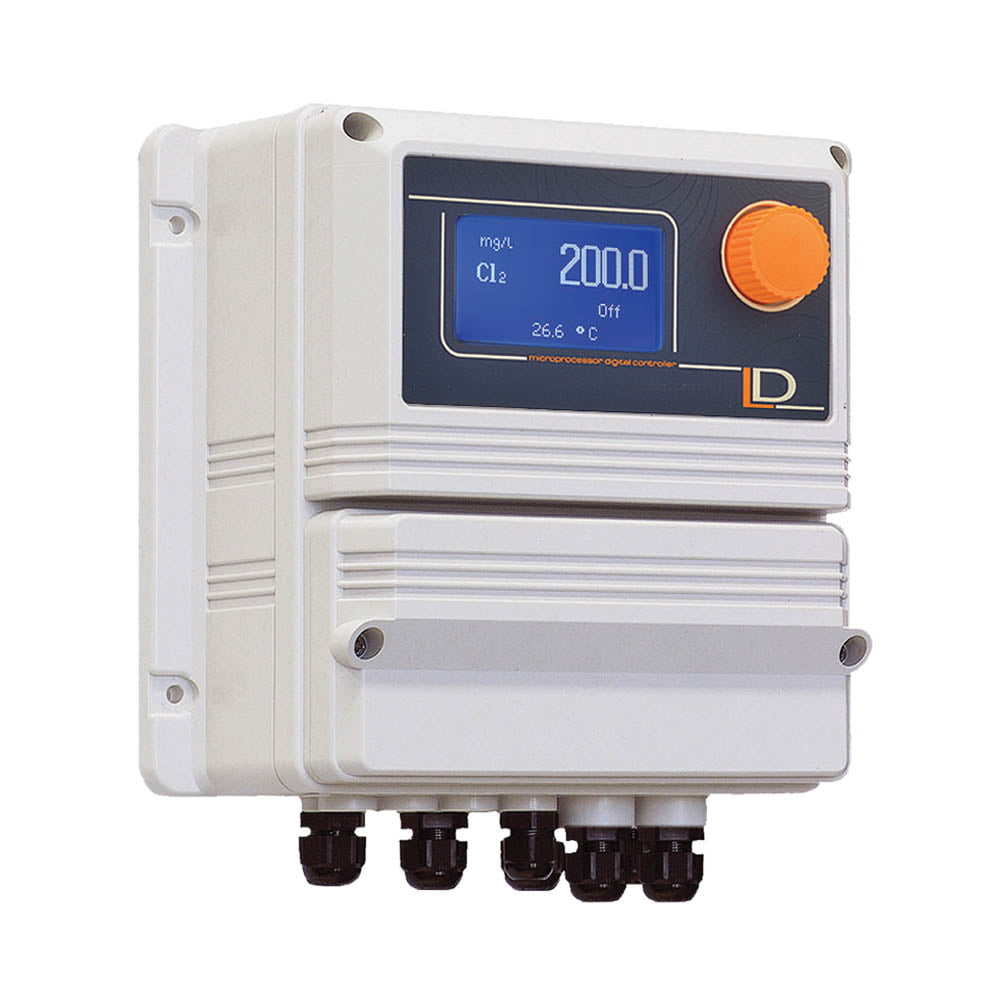

EMEC LDSCL PLUS PID CL2 Controller for SCL Amperometric Sensors
- PID CL2 Controller
- Encoder wheel menu
- 2 Pulse, 2 Relay & 1 PID 4-20mA control outputs
- 4-20mA outputs for ppm, Temp & PID control
- Alarm & cleaning relays
- mA or pulse water meter input for Feedforward control (SCL probes & flow cell optional)
- Communication via ermes Webserver or Modbus
- EMEC LDSCL PLUS-4G includes 4G connection to ermes Webserver
- EMEC LDSCL PLUS-LAN includes ethernet connection to ermes Webserver
- EMEC LDSCL PLUS-MODBUS includes modbus RTU interface
Description
EMEC LDS & LDS PLUS Data Sheet
EMEC LDSCL PLUS Instruction Manual R7-03-19
| Name |
|---|
|
EMEC LDS & LDS PLUS Data Sheet
|
|
EMEC LDSCL PLUS Instruction Manual R7-03-19
|
Additional information
| Configuration | Wall Mount |
|---|---|
| Variables Measured | Cl2, CLO2, Flow Status, Temperature |
| Inputs | Amperometric Sensor, Flow Switch Contact, mA or pulse Flow Input, Standby Dry Contact, Tank Level Dry Contact |
| Outputs | 4-20mA, Alarm Relay, Pulse, Switched Relays For Optional Pumps/Valves |
| IP Rating | IP65 |
| Remote Comms | Via Optional LAN card, Via Optional Modbus, Via Optional Modem |
