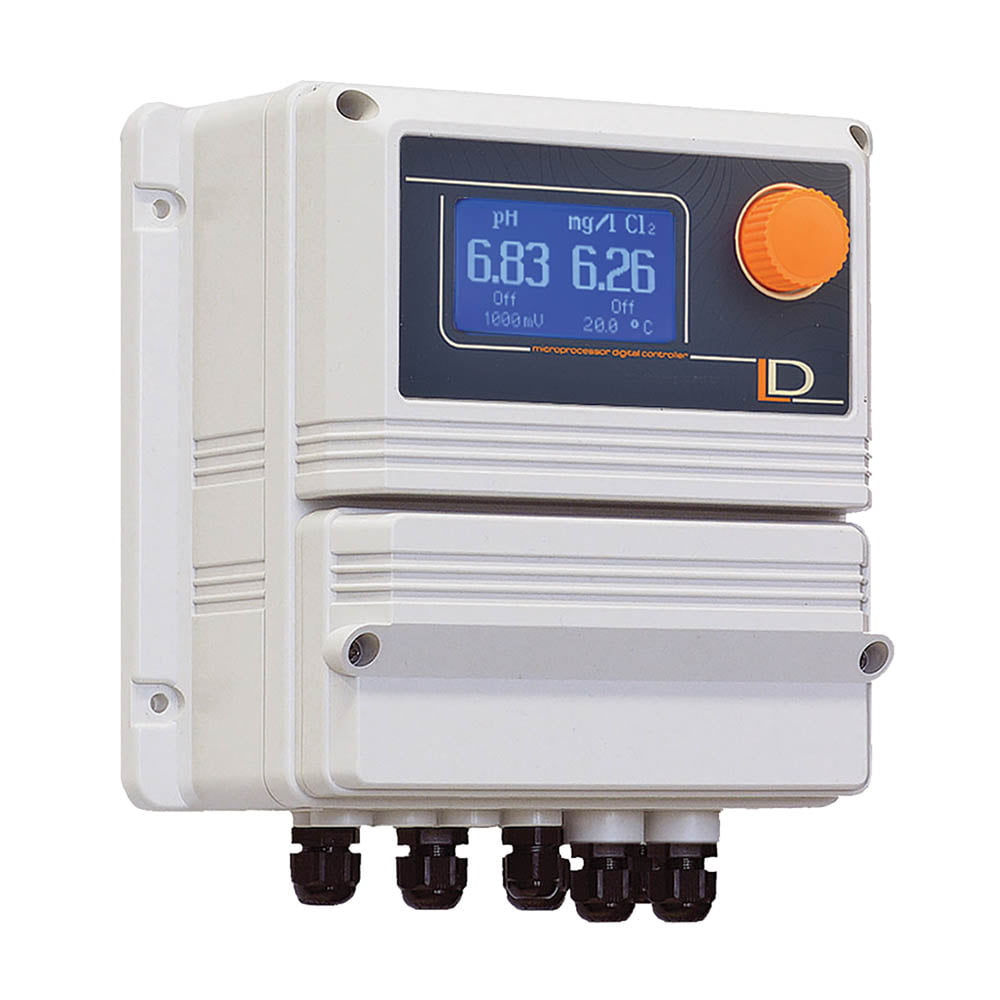

EMEC LDPRC pH & CL2 Controller with ORP Monitoring for SCL Amperometric Sensors

  • Programmable for dosing Acid and Chlorine
  • Proportional or On/Off Control for pH and Chlorine
  • Outputs: 1 x pH 240Vac Relay, 2 x pH Pulse, 1 x Cl2 240Vac Relay, 1 x Cl2 Pulse, 3 x mA for pH, Cl2 & Temp,
  • Tanks level inputs: 2 x pH, 1 x Cl2
  • Other I/O: 1 x Standby I/P, 1 x 240Vac Alarm Relay O/P, 1 x RS485 O/P
  • LCD display shows measured pH, ORP and Chlorine (mg/L)
  • Manual/Automatic Temperature Compensation (for pH only)
  • Max dosing alarms
  • High/Low ORP, pH and CL2 alarms available
  • Optional GSM/GPRS modem or Ethernet/LAN card for remote connectivity via webserver and alarming via SMS/e-mail
  • ERMES Ready – Remote access via 4G, WiFi, Ethernet with live readings
Compare
SKU: EMEC LDPRC Categories: , Tag: Brand:

Description

EMEC LD Dual & LD Dual PLUS Data Sheet R2-06-20
EMEC LDPRC Data Sheet
EMEC LDPRC Instruction Manual
EMEC LD Dual & LD Dual PLUS Data Sheet R2-06-20
EMEC LDPRC Data Sheet
EMEC LDPRC Instruction Manual
Name

Additional information

Configuration

Wall Mount

Variables Measured

Cl2, Flow Status, ORP, pH, Temperature

Inputs

Amperometric Sensor, Flow Switch Contact, pH Probe, Standby Dry Contact, Tank Level Dry Contact

Outputs

4-20mA, Alarm Relay, Optional Modbus, Pulse, Switched Relays For Optional Pumps/Valves

Remote Comms

Via Optional LAN card, Via Optional Modbus, Via Optional Modem

IP Rating

IP65
