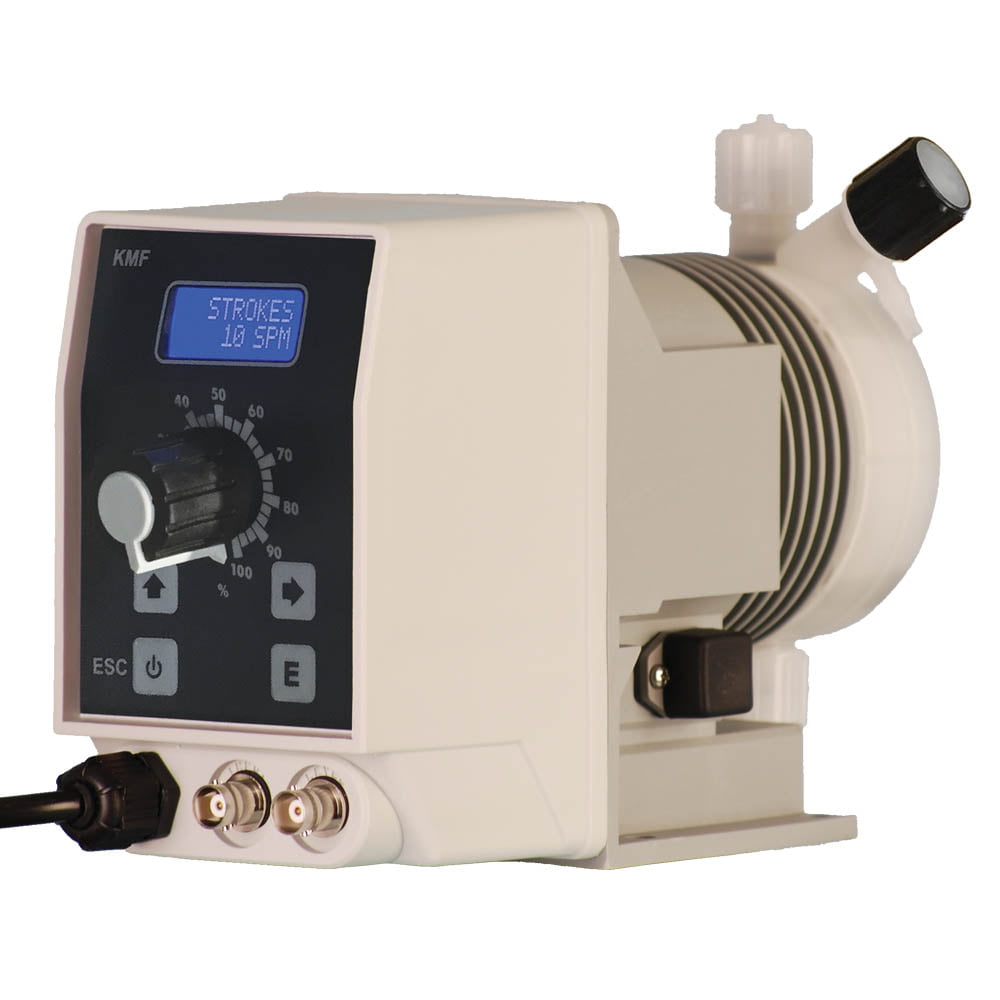

EMEC KAMF 15 03 EP PTFE Peracetic Acid Pump (2 l/hr, 15 bar)

  • Includes foot valve, Injection valve, 2M of Suction tubing and 2M of Discharge tubing
  • Reliable & accurate dosing with self venting (de-gassing) PVDF head
  • Suitable for dosing Peracetic Acid with PVDF head, EPDM Static O-rings, Ceramic balls, & PTFE teflon seats
  • Backlit LCD Display of Strokes/Min, L/HR, PPM, etc
  • Programmable modes: Constant, Divide, Multiply, PPM, Batch, Volt, Milliamps
  • Adjustable stroke length (10-100%)
  • Optional SEFL Flow Switch alarms if pump loses prime
  • Programmable alarm relay output
  • Pump enable/standby input
  • Float on foot valve stops pump dosing when chemical level in tank is low
  • Double ball check valves in foot valve, suction & discharge valves
  • Solid Teflon diaphragm prevents wear
  • Spring loaded injection valve with ceramic ball
  • Simple mounting
Compare
SKU: EMEC KAMF 15 03 EP PTFE Category: Tag: Brand:

Description

EMEC Chemical Compatibility Table April 2013
EMEC KMF-KAMF Data Sheet R1-11-15
EMEC KMF-KAMF Instruction Manual R1-01-17
EMEC Chemical Compatibility Table April 2013
EMEC KMF-KAMF Data Sheet R1-11-15
EMEC KMF-KAMF Instruction Manual R1-01-17
Name

Additional information

Configuration

Foot Mount, Wall Mount with Optional Bracket

Variables Measured

Level

Inputs

4-20mA, Pulse, SEFL Flow Sensor, Standby Dry Contact, Tank Level Dry Contact, Water Meter Make-up Pulses

Outputs

Alarm Relay

Max Flow / Pressure (Head)

3 l/hr @ 15 bar

Process Connection

1/2 inch BSP Male

Materials

Ceramic Balls, EPDM O-rings, PTFE Diaghragm/s, PTFE Teflon Seats, PVDF Head, PVDF Valve Bodies

Max Viscosity

100 cps

IP Rating

IP65

Install Kit Included

4x6mm tube, injection valve & foot valve with level float

Optional Tube Size

1/4 inch, 3/8 inch, 5×8 or 6x9mm
