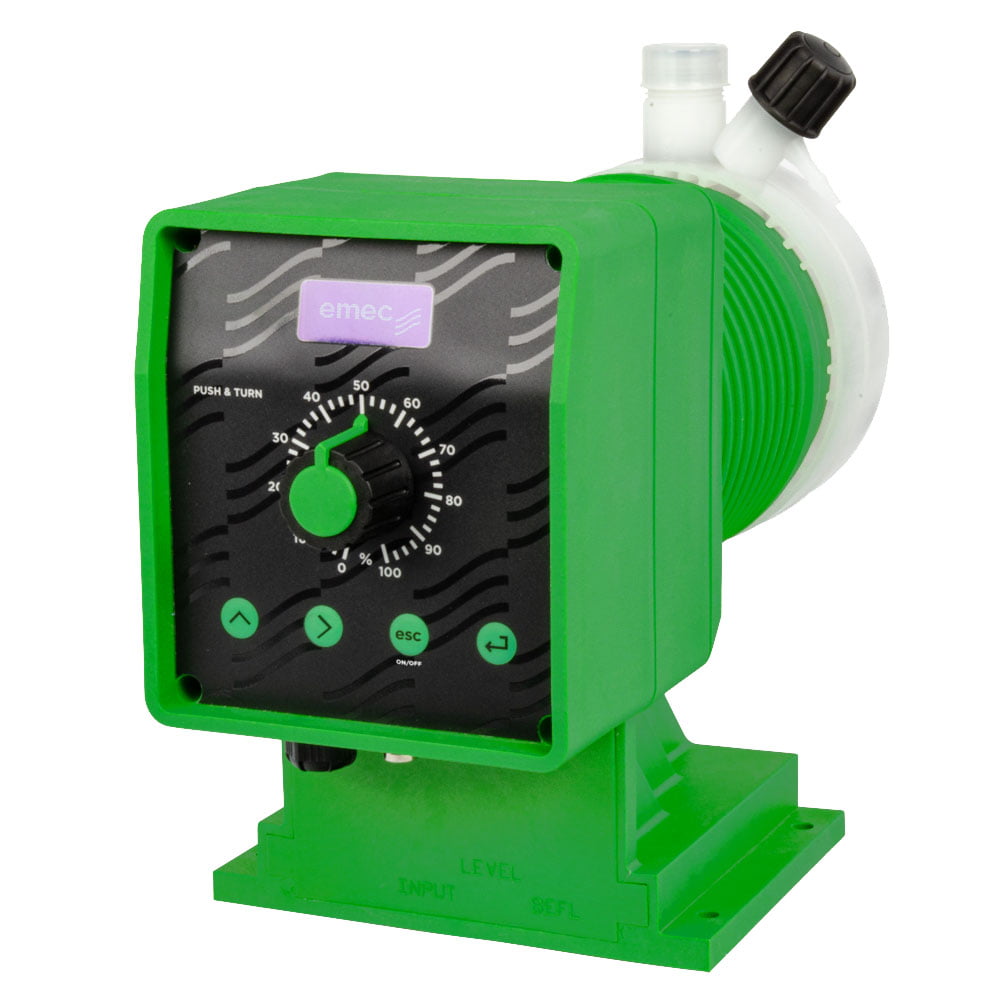

EMEC AMSMF Pump - Constant/Proportional Dosing with Multifunction
PP Head for EMEC A Series Pumps
EMEC AMSMF & AMSAMF Digital Multi Function Pumps (5 l/hr to 60 l/hr)
- Includes Installation Kit, i.e. foot valve, injection valve, 2m of Suction tube and 2m of Delivery tube
- Programmable Modes: Constant, Pulse with Multiply/Divide, PPM, Percentage, Batch, Volt, mA
- Standard head: PVDF with Viton Seals
- Head for Caustic: PP with EPDM seals and SS Balls
- Degassing (self-venting) head for Chlorine: AMSAMF models only
- High Viscosity heads for Polymer: AMSMF LPV models only (8000 cps max.)
- Adjustable stroke length (10-100%)
- Backlit LCD Display of Strokes/Min, L/HR, PPM, etc
- Optional SEFL Flow Switch alarms if pump loses prime
- Programmable alarm relay output
- Pump enable/standby input
- Float on foot valve stops pump dosing when chemical level in tank is low
- Double ball check valves in foot valve, suction & deliver valves
- Long lasting Solid Teflon diaphragm
- Reliable & accurate dosing
- Wall Mount with optional Front or Side Mount Bracket
- TIP: see available Models / Part Numbers below
SKU: EMEC AMSMF / EMEC AMSAMF
Category: Adjustable Stroke Length Solenoid Pumps
Tag: emec pumps
Brand: emec
Description
EMEC AMSAPLUS_AMSAMF 0330 PMMA Spare Parts Exploded Rev 01
EMEC AMSAPLUS_AMSAMF 0713 PMMA Spare Parts Exploded Rev 01
EMEC AMSCOPLUS_AMSPLUS 1015_0340_0720 LPV FP Spare Parts Exploded Rev 01
EMEC AMSMF-AMSAMF Data Sheet R1-07-15
EMEC AMSMF-AMSAMF-AMSACMF Instruction Manual R1-08-14
EMEC AMSPLUS_AMSCOPLUS 0260 LPV FP Spare Parts Exploded Rev 01
EMEC AMSPLUS_AMSMF 0260_0340 FP Spare Parts Exploded Rev 01
EMEC AMSPLUS_AMSMF 0260_0340 PP EP SS Spare Parts Exploded Rev 01
EMEC AMSPLUS_AMSMF 0720 FP Spare Parts Exploded Rev 02
EMEC AMSPLUS_AMSMF 0720 PP EP SS Spare Parts Exploded Rev 01
EMEC AMSPLUS_AMSMF 2505 EP 4x6 Spare Parts Exploded Rev 01
EMEC AMSPLUS_AMSMF 2505 FP 4x6 Spare Parts Exploded Rev 01
EMEC Chemical Compatibility Table April 2013
| Name |
|---|
|
EMEC AMSAPLUS_AMSAMF 0330 PMMA Spare Parts Exploded Rev 01
|
|
EMEC AMSAPLUS_AMSAMF 0713 PMMA Spare Parts Exploded Rev 01
|
|
EMEC AMSCOPLUS_AMSPLUS 1015_0340_0720 LPV FP Spare Parts Exploded Rev 01
|
|
EMEC AMSMF-AMSAMF Data Sheet R1-07-15
|
|
EMEC AMSMF-AMSAMF-AMSACMF Instruction Manual R1-08-14
|
|
EMEC AMSPLUS_AMSCOPLUS 0260 LPV FP Spare Parts Exploded Rev 01
|
|
EMEC AMSPLUS_AMSMF 0260_0340 FP Spare Parts Exploded Rev 01
|
|
EMEC AMSPLUS_AMSMF 0260_0340 PP EP SS Spare Parts Exploded Rev 01
|
|
EMEC AMSPLUS_AMSMF 0720 FP Spare Parts Exploded Rev 02
|
|
EMEC AMSPLUS_AMSMF 0720 PP EP SS Spare Parts Exploded Rev 01
|
|
EMEC AMSPLUS_AMSMF 2505 EP 4x6 Spare Parts Exploded Rev 01
|
|
EMEC AMSPLUS_AMSMF 2505 FP 4x6 Spare Parts Exploded Rev 01
|
|
EMEC Chemical Compatibility Table April 2013
|
Additional information
| Configuration | Foot Mount, Wall Mount with Optional Bracket |
|---|---|
| Variables Measured | Level |
| Inputs | 4-20mA, Pulse, SEFL Flow Sensor, Standby Dry Contact, Tank Level Dry Contact, Water Meter Make-up Pulses |
| Outputs | Alarm Relay |
| Max Flow / Pressure (Head) | 15 l/hr @ 10 bar, 20 l/hr @ 7 bar, 40 l/hr @ 3 bar, 60 l/hr @ 2 bar |
| Process Connection | 1/2 inch BSP Male, 3/4 inch BSP Male |
| Materials | Ceramic Balls, EPDM O-rings & Seats, FKM B O-rings & Seats, PP Head, PTFE Diaghragm/s, PVDF Head, PVDF Valve Bodies, SS Balls |
| Max Viscosity | 100 cps, 600 cps with optional SS balls, 8000 cps in LPV Models |
| IP Rating | IP65 |
| Install Kit Included | 4x6mm tube (<12 l/hr), 6x8mm tube (20 l/hr) or 8x12mm tube (>30 l/hr), injection valve & foot valve with level float |
| Optional Tube Size | 3/8 inch, 1/2 inch, 5×8, 6×9 or 9x12mm |
Models / Part Numbers
- EMEC AMSMF 25 05 for max 5 l/hr @ 25 bar
- EMEC AMSMF 15 10 for max 10 l/hr @ 15 bar
- EMEC AMSMF 10 15 for max 15 l/hr @ 10 bar
- EMEC AMSMF 07 20 for max 20 l/hr @ 7 bar
- EMEC AMSMF 03 40 for max 40 l/hr @ 3 bar
- EMEC AMSMF 02 60 for max 60 l/hr @ 2 bar
- Add FP to Product Code above for PVDF head, Viton seals & CE Balls
- Add PP EP SS to Product Code above for PP head, EPDM seals & SS Balls
- Add LPV FP PMMA to Product above for high viscosity head
Chlorine Pumps
- EMEC AMSAMF 15 06 PMMA for max 6 l/hr @ 15 bar (PMMA degassing head)
- EMEC AMSAMF 10 10 PMMA for max 10 l/hr @ 10 bar (PMMA degassing head)
- EMEC AMSAMF 07 13 PMMA for max 13 l/hr @ 7 bar (PMMA degassing head)
- EMEC AMSAMF 03 30 PMMA for max 30 l/hr @ 3 bar (PMMA degassing head)
