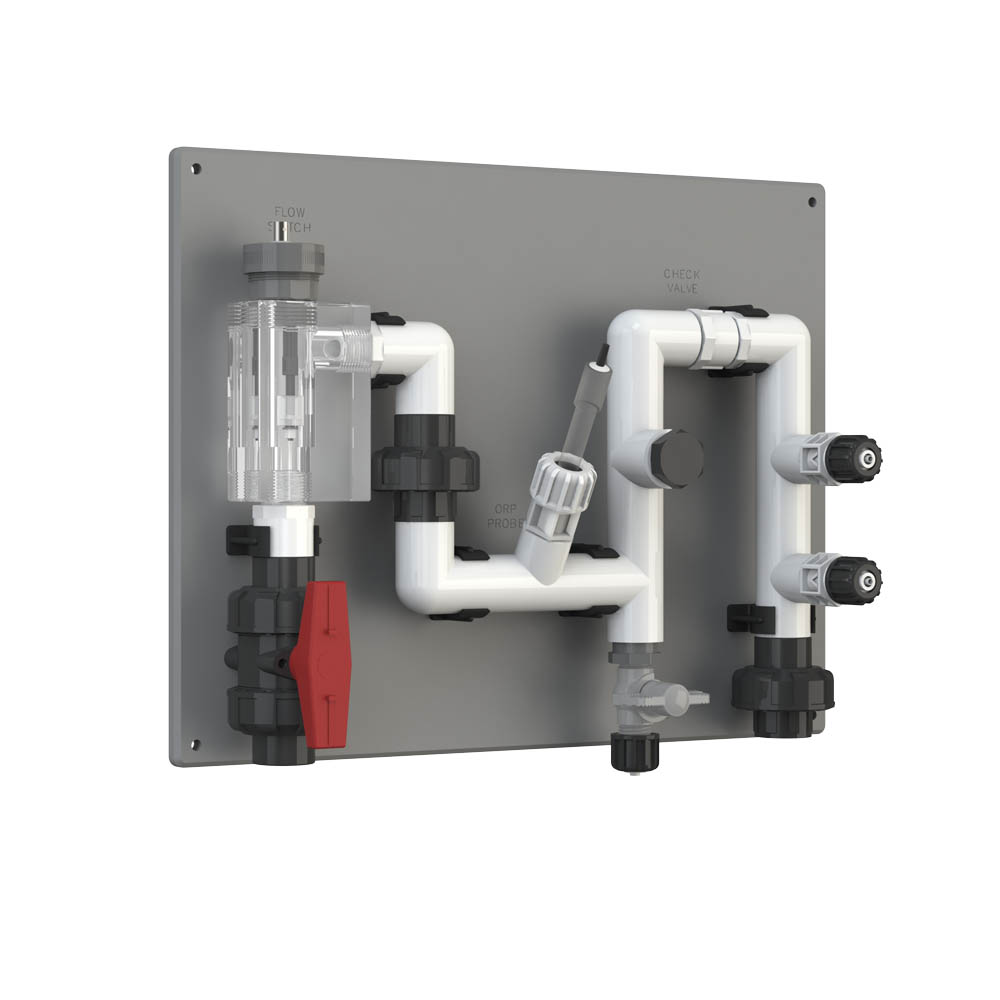

MAN RX-PRB-12mm
MAN RX-PRB-12mm (for 12mm diameter Probe)
- Manifold 3/4 inch (20mm) on PVC backboard Inlet to Outlet: True union Ball valve, Flow Switch, 1/2 inch Ports with compression fittings for optional 12mm diameter ORP or pH Probe, Sample Point, 3/4 inch port for optional Solution Ground Probe with blanking plug, check valve and 2 ports for optional injection valves. Excludes pH, ORP and Ground Probes
- Variables Measured: ORP or pH (with 12mm diameter Plastic body Probes – Not suitable for glass)
- Applications: ORP Control (with ORP probe), pH Control of Acid and/or Base (with pH probe)
- Compatible Controllers: refer Brochure in Downloads for details
- Note: some optional parts included in Product Image (refer Brochure in Downloads for details)
- Backboard: 450mm (W) x 345mm (H) x 10mm (D)
Description
