MAN RX-PRB-3/4 (for 3/4 inch MNPT Probe)

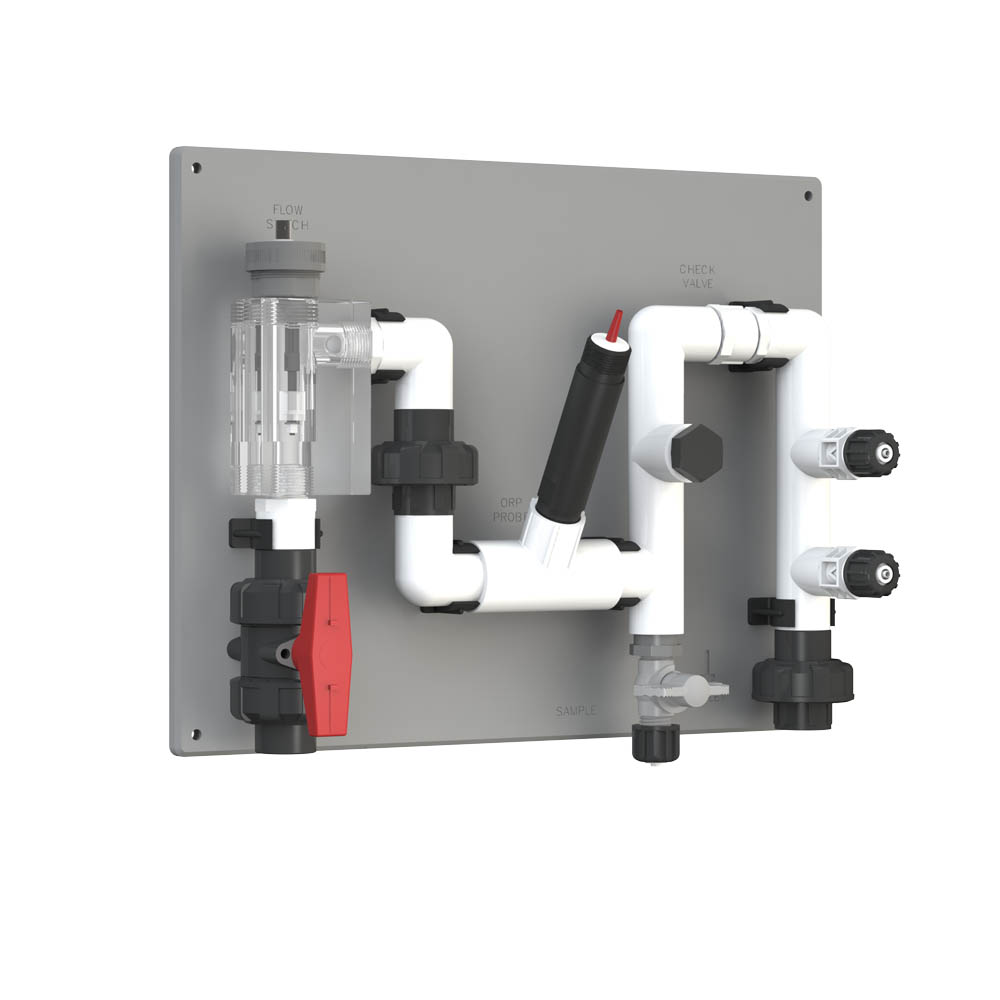

  • Manifold 3/4 inch (20mm) on PVC backboard Inlet to Outlet: True union Ball valve, Flow Switch, 3/4 inch Port for optional ORP or pH Probe, Sample Point, 3/4 inch port for optional Solution Ground Probe with blanking plug, check valve and 2 ports for optional injection valves. Excludes pH, ORP and Ground Probes
  • Variables Measured: pH or ORP (with 3/4 inch threaded probe)
  • Applications: ORP Control (with ORP probe), pH Control of Acid and/or Base (with pH probe)
  • Compatible Controllers: refer Brochure in Downloads for details
  • Note: some optional parts included in Product Image (refer Brochure in Downloads for details)
  • Backboard: 450mm (W) x 345mm (H) x 10mm (D)
Compare
SKU: MAN RX-PRB-3/4 Category:
