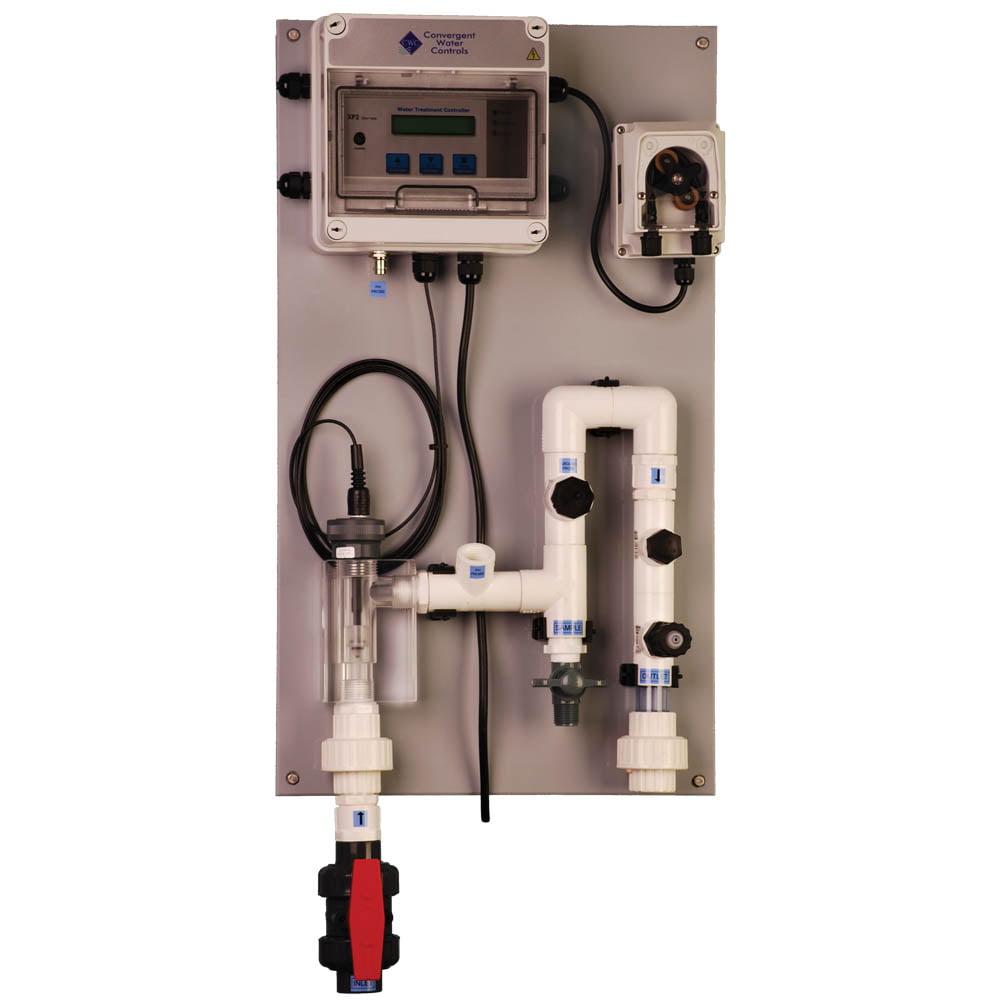

DCON-PH2-P pH Control System with peristaltic pump 1
DCON-PH2-P pH Control System with peristaltic pump
- On-board data logging
- NEW Black EPDM based squeeze tube with better chemical compatibility & longer tube life
- pH controlled via peristaltic pump (disabled on no-flow)
- Self priming peristaltic pump (1.3l/hr,3bar)
- Fail-safe alarm relay with remote power failure detection
- Options & variations available – download data sheet
Description
DCON-PH2 & PH-XP2 Data Sheet v3.1
DCON-PH2 & PH-XP2 Instruction Manual M1-ver-1.2
DCON-PH2-P Assembly Diagram
DCON-PH2-P Spare Parts v1.1
DCON-RX2-P or similar Installation Instructions v1.0
| Name |
|---|
|
|
|
DCON-PH2 & PH-XP2 Data Sheet v3.1
|
|
DCON-PH2 & PH-XP2 Instruction Manual M1-ver-1.2
|
|
DCON-PH2-P Assembly Diagram
|
|
DCON-PH2-P Spare Parts v1.1
|
|
DCON-RX2-P or similar Installation Instructions v1.0
|
Additional information
| Configuration | Wall Mount, PVC Backboard Mounted |
|---|---|
| Variables Measured | pH |
| Inputs | Flow Switch Contact, pH Probe |
| Outputs | Alarm Relay, pH Pump Via Relay |
| Data Logging | Included |
| Max Pressure / Temp | 2.7 bar @ 50°C |
| Port Size | 3/4" BSP Female |
| Materials | PVC Manifold |
| IP Rating | IP55 |
