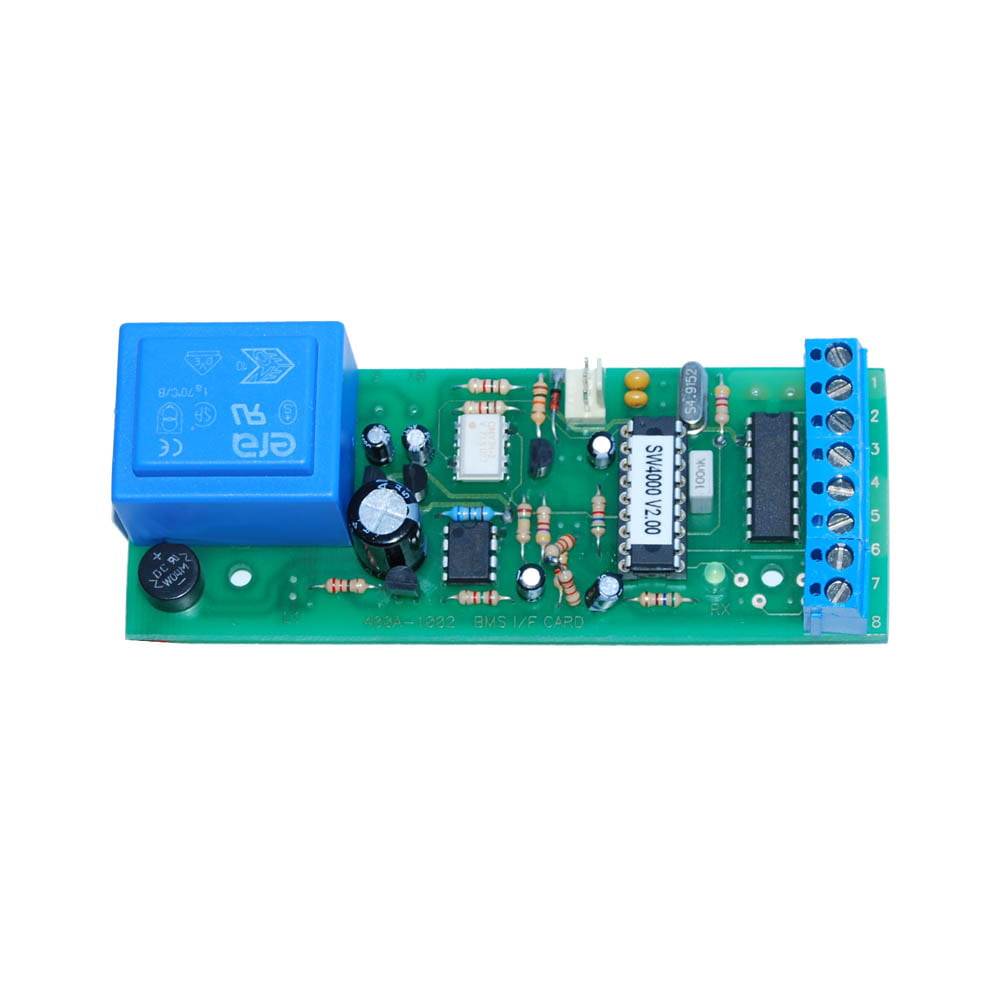

AF10B-XP2 BMS Output Card (incl 4-20mA) for PH-XP2 Controllers 1
AF10B-XP2 BMS Output Card (incl 4-20mA) for PH-XP2 Controllers
- Provides isolated 4-20mA Ouput as well as NPN Open Collector Outputs for Power Failure, Alarm, and Individual Pump Status
- 4-20mA = 0-14 pH
- 4-20mA Signal can be converted to 1-5Vdc Output via 250 Ohm Resistor
- Max 4-20mA Output Impedance: 500 Ohm
- On-board LED indicates card is operating
- C-tick EMC Approval rating
Description
AF10-BMS-Card-Instruction-Manual-M1-v2.2.pdf
| Name |
|---|
|
AF10-BMS-Card-Instruction-Manual-M1-v2.2.pdf
|
Additional information
| Outputs | 4-20mA, NPN For Logic Status |
|---|---|
| IP Rating | N/A |
