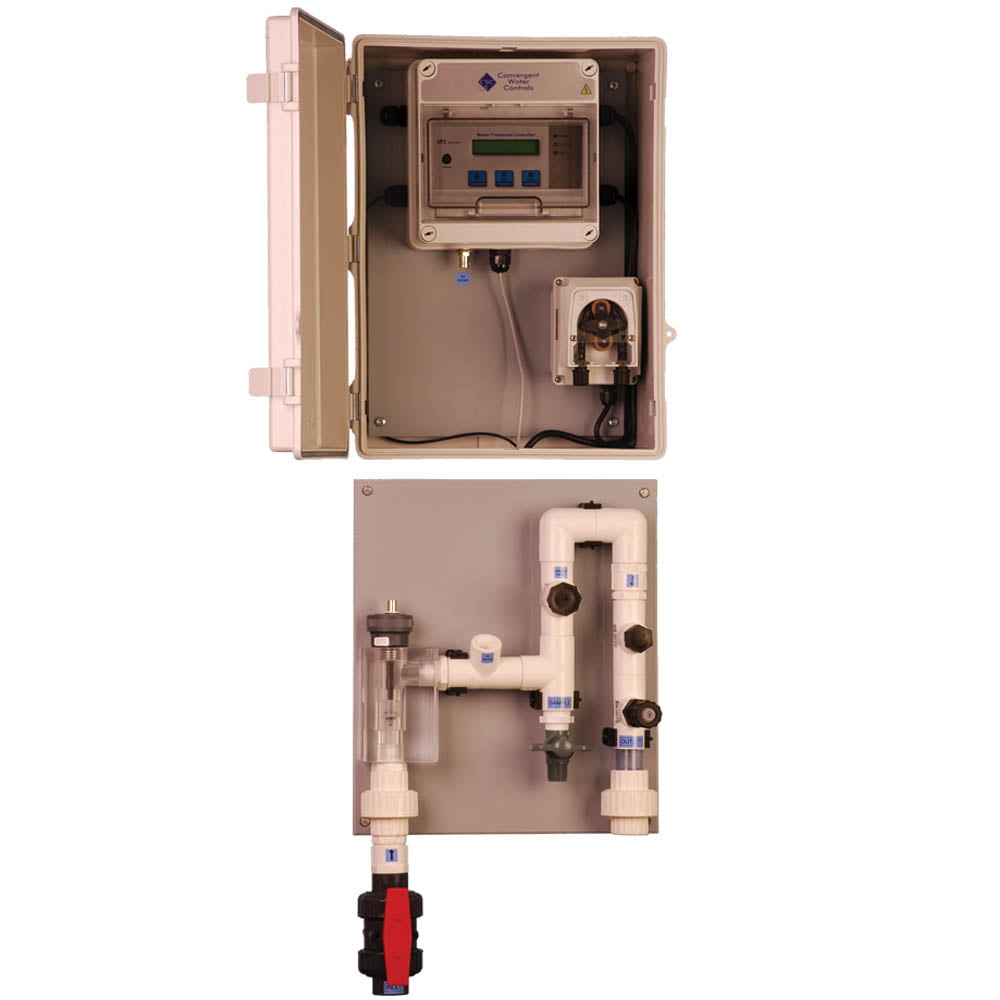

DCON-PH2-P-CABG pH Control System with Peristaltic Pump 1
DCON-PH2-P-CABG pH Control System with Peristaltic Pump
- On-board data logging
- NEW Black EPDM based squeeze tube with better chemical compatibility & longer tube life
- pH controlled via peristaltic pump (disabled on no-flow)
- Self priming peristaltic pump (1.3l/hr,3bar)
- Fail-safe alarm relay with remote power failure detection
- Options & variations available – download data sheet
Description
DCON-PH2-P-CABG-Assembly-Diagram-v2.2.pdf
DCON-PH2-P-Spare-Parts-v1.1.pdf
DCON-PH2-PH-XP2-Instruction-Manual-M1-ver-1.2.pdf
DCON-PH2-PH-XP2-pH-Systems-v3.1.pdf
DCON-RX2-P-or-DCON-PH2-P-Installation-Instructions-v1.0.pdf
| Name |
|---|
|
|
|
DCON-PH2-P-CABG-Assembly-Diagram-v2.2.pdf
|
|
DCON-PH2-P-Spare-Parts-v1.1.pdf
|
|
DCON-PH2-PH-XP2-Instruction-Manual-M1-ver-1.2.pdf
|
|
DCON-PH2-PH-XP2-pH-Systems-v3.1.pdf
|
|
DCON-RX2-P-or-DCON-PH2-P-Installation-Instructions-v1.0.pdf
|
Additional information
| Configuration | Controller & Pumps Mounted In Cabinet, Wall Mount |
|---|---|
| Variables Measured | pH |
| Inputs | Flow Switch Contact, pH Probe |
| Outputs | Alarm Relay, pH Pump Via Relay |
| Data Logging | Included |
| Max Pressure / Temp | 2.7 bar @ 50°C |
| Port Size | 3/4" BSP Female |
| Materials | PVC Manifold |
| IP Rating | IP65 |
