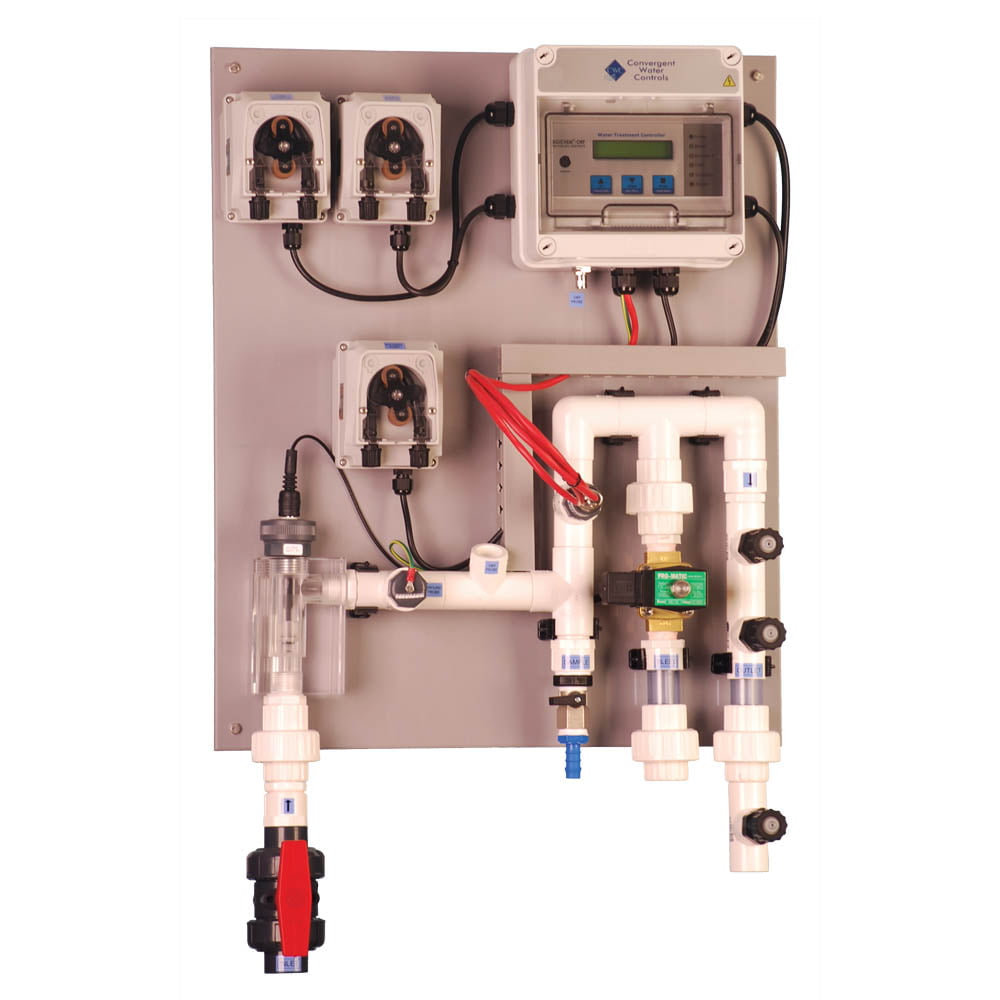

DIGI-AB2RX2A-P (Bleed, Inhibr, BioA, ORP via Chlorine Pump)

  • Supersedes DIGICHEM-AB2RX2A-P
  • On-board data logging
  • NEW Black EPDM based squeeze tube with better chemical compatibility & longer tube life
  • Digital controllers, pumps & manifold mounted on PVC back panels
  • Bleed Control – via solenoid valve
  • Inhibitor Dosing – reduces corrosion
  • Dual Biocide Dosing for system disinfection
  • Primary (oxidising) biocide dosing – ORP controlled via peristaltic pump (disabled on no-flow)
  • Secondary (non-oxidising) biocide dosing via 10 x 28-day timer programs with Pre-bleed & Bleed Lock-out
  • Self priming peristaltic pumps (1.3l/hr,3bar)
  • Condenser pump override facility during secondary biocide dosing with delay-off timer
  • Fail-safe alarm relays with remote power failure detection
  • Options & variations available – download data sheet
Compare
SKU: DIGI-AB2RX2A-P Category: Tag:

Description

DIGI-AB2RX2A-DIGI-ORP-XP2-Data-Sheet-v2.1.pdf
DIGI-AB2RX2A-DIGI-ORP-XP2-Instruction-Manual-v2.0.pdf
DIGI-AB2RX2A-P-Assembly-Diagram-v1.1.pdf
DIGI-AB2RX2A-Spare-Parts-v1.1.pdf
DP-CAPHP-RXP-Installation-Instructions-v1.1.pdf
DIGI-AB2RX2A-DIGI-ORP-XP2-Data-Sheet-v2.1.pdf
DIGI-AB2RX2A-DIGI-ORP-XP2-Instruction-Manual-v2.0.pdf
DIGI-AB2RX2A-P-Assembly-Diagram-v1.1.pdf
DIGI-AB2RX2A-Spare-Parts-v1.1.pdf
DP-CAPHP-RXP-Installation-Instructions-v1.1.pdf
Name

Additional information

Configuration

Wall Mount, PVC Backboard Mounted

Variables Measured

Conductivity, ORP, TDS, Temperature

Inputs

Conductivity Probe with Electrodes & 47K NTC, Flow Switch Contact, ORP Probe, Water Meter Make-up Pulses

Outputs

Alarm Relay, Bio A Pump Via Relay, Bleed Valve Via Relay, Inhibitor Pump Via Relay, ORP Chlorine Pump Via Relay

Data Logging

Included

Max Pressure / Temp

2.7 bar @ 50°C

Port Size

20mm Solvent Weld

Materials

PVC Manifold, Solenoid valves brass

IP Rating

IP55
