AF10/10A-XP2 BMS Output Card (incl 4-20mA) for DIGICHEM-ORP-XP2 1

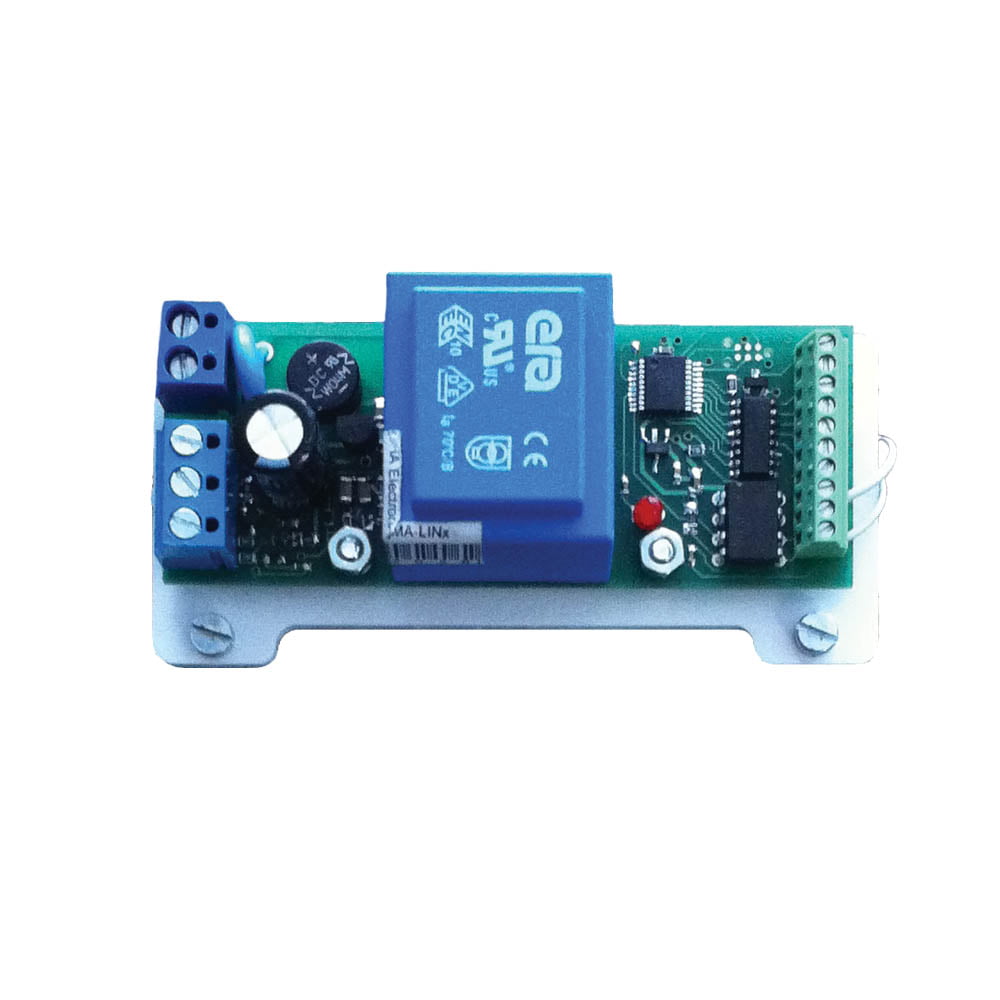

AF10/10A-XP2 BMS Output Card (incl 4-20mA) for DIGICHEM-ORP-XP2
- Provides isolated 4-20mA Ouptuts for measured TDS/uS and for ORP
- 4-20mA = 0-5000 TDS
- 4-20mA = 0-1000 mV
- 4-20mA Signal can be converted to 1-5Vdc Output via 250 Ohm Resistor
- Max 4-20mA Output Impedance: 500 ohm
- On-board LED indicates card is operating
- C-tick EMC Approval rating
Description
AF10-10A-XP2-BMS-Card-Instruction-Manual-M1-v1.0.pdf
| Name |
|---|
|
AF10-10A-XP2-BMS-Card-Instruction-Manual-M1-v1.0.pdf
|
Additional information
| Outputs | 4-20mA, NPN For Logic Status |
|---|---|
| IP Rating | N/A |
