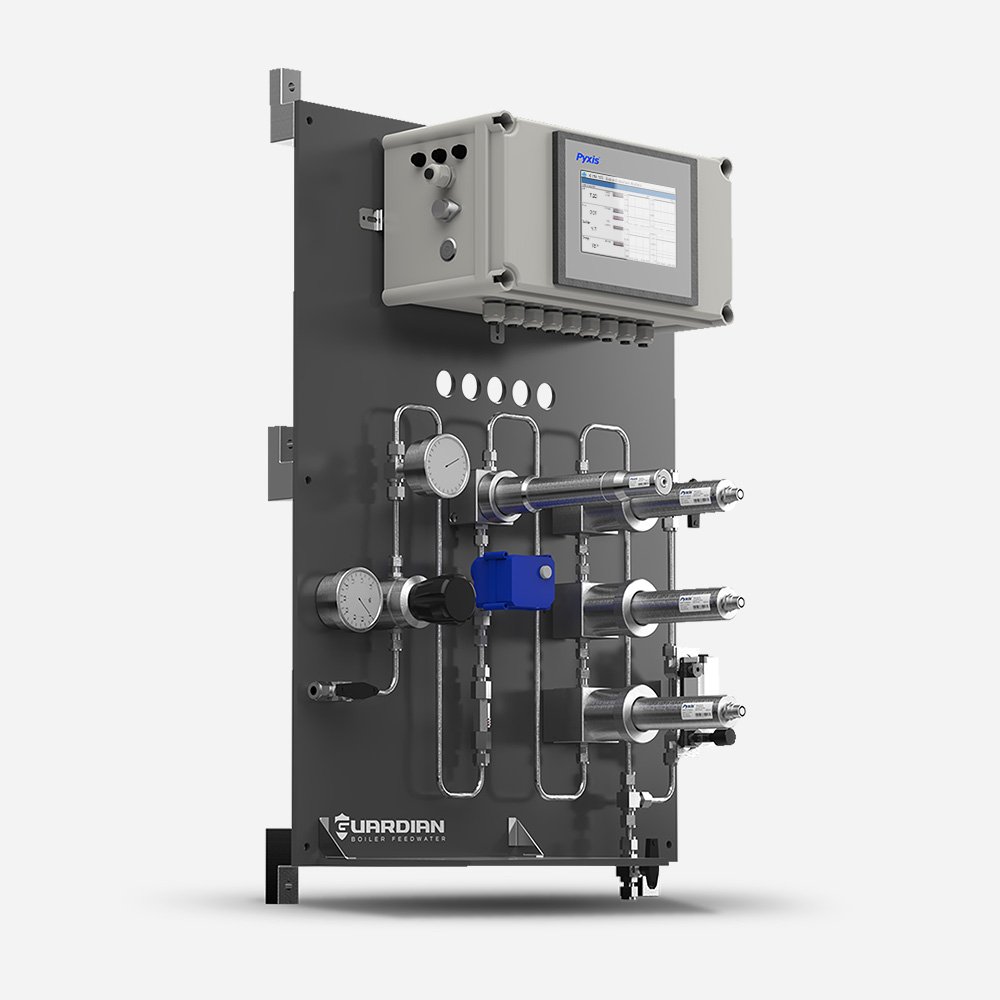

Pyxis IK2000 Oblique View

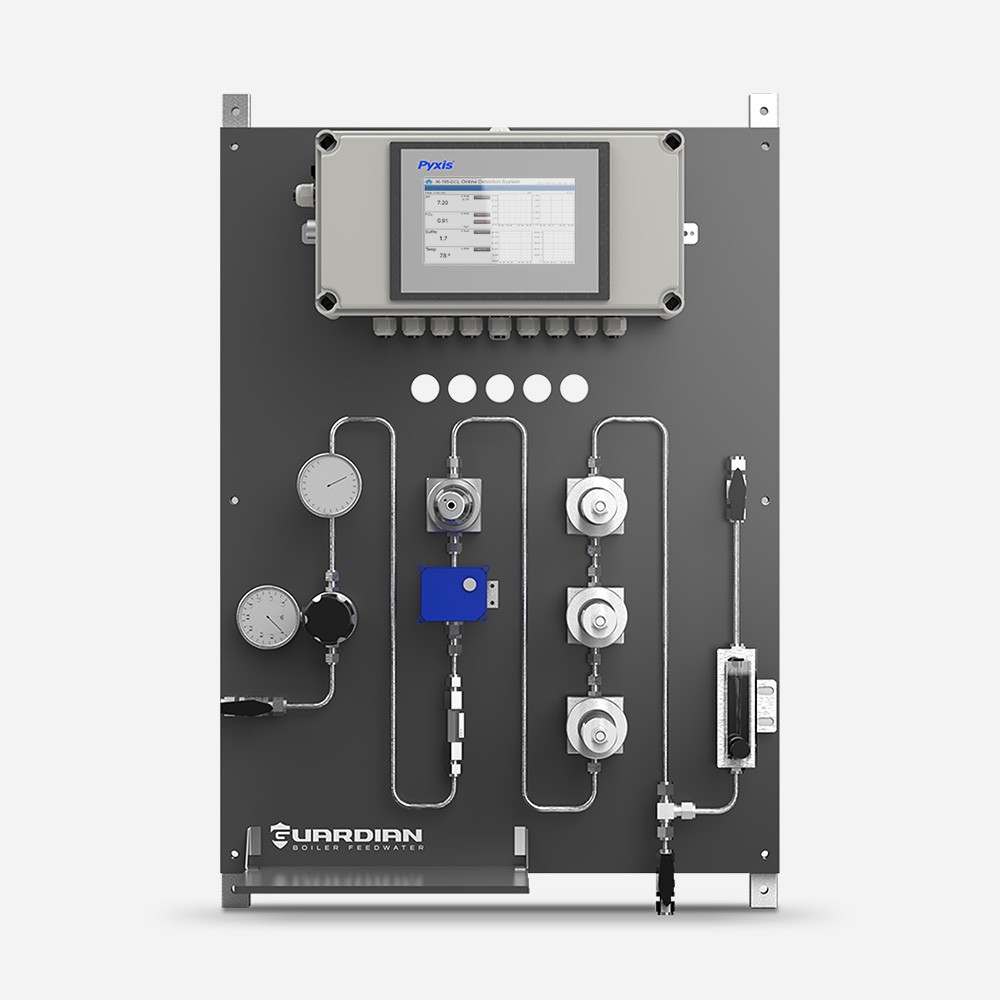

Pyxis IK2000 Front View
Pyxis Guardian Boiler Feedwater Analyser
- Display and data-logging of sample water Dissolved Oxygen (ppb), Temperature (ºC/ºF), pH, ORP (mV), Sulfite (ppm), Conductivity (µS/cm), Total Dissolved Solids (ppm) and Sample Flow Rate (mL/Min)
- Stainless Steel manifold to be installed downstream of sample cooler
- Pre-Plumbed in fully Stainless Steel ¼-inch Tubing with Compression Fittings
- Wetted Materials: Hastelloy/304SS/316SS/Glass/Gold/Platinum/CPVC/PTFEPOM/ABS/PEEK/PET/NBR/PCB
- Color Touch Screen Display & Data-Logging Terminal
- Pre-Configured Firmware to enable up to Four (4) Pyxis Lab® Smart Sensors
- Pre-Configured CloudLink™ 4G Wireless Gateway with Global SIM Card – Activated Upon User Enrolment
- Integrated Digital Sample Flow Meter and Manual Rotameter
- Integrated ST-774 Ultralow Dissolved Oxygen Sensor with Flow Cell
- Integrated Stainless Steel Solenoid Isolation Valve for Sample Lockout on Temperature Alarm
- Three (3) Integrated ST-007 Stainless Steel Inline Tee Assemblies for up to Three (3) more Pyxis Sensors
- Plug-N-Play Sensor Installation with Pre-wired Pigtails for future Sensor Addition
- Integrated Sensor Calibration & Maintenance Shelf for User Convenience
- TIP: see available Models / Part Numbers below
Description
Guardian Boiler Feedwater Analyzer Series Data Sheet
Guardian Boiler Feedwater IK-2000 Series User Manual Ver 1.0
| Name |
|---|
|
Guardian Boiler Feedwater Analyzer Series Data Sheet
|
|
Guardian Boiler Feedwater IK-2000 Series User Manual Ver 1.0
|
Additional information
| Configuration | Wall Mount |
|---|---|
| Process Connection | 1/4 inch NPT |
| Materials | Stainless Steel 316 |
Models / Part Numbers
- Pyxis IK-2000 DO
- Pyxis IK-2010 DO, pH, ORP, Sulphite
- Pyxis IK-2020 DO, pH, ORP, Sulphite, Fluorescein
- Pyxis IK-2030 DO, pH, ORP, Sulphite, Fluorescein, Conductivity
