STEN-S50-Peristaltic-Pump

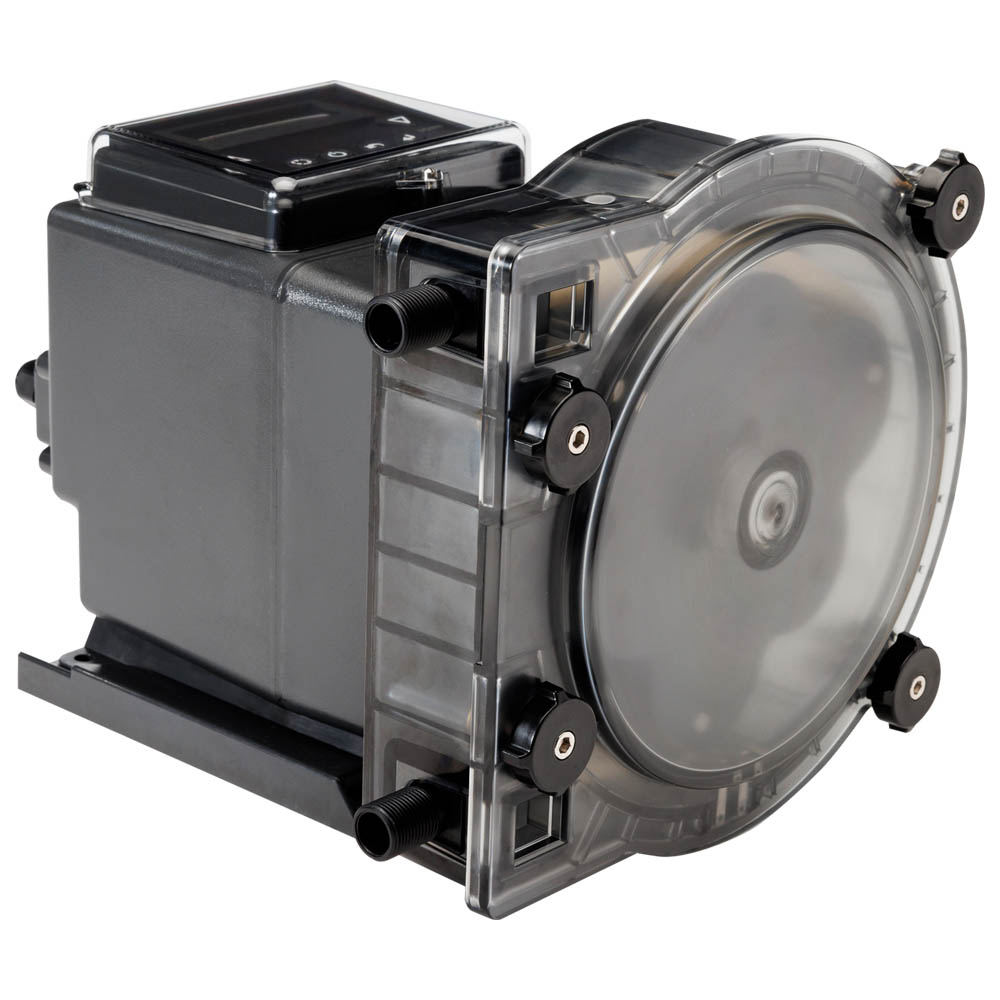

STEN S50 Peristaltic Pump, Variable Speed, 49.68 L/Hr, 6.9 Bar Max
- Digital keypad with OLED display
- Brushless motor – designed for continuous operation
- Tube leak detector
- Tube life timer
- Multiple modes
- Self priming up to 7.6m suction
- Does not lose prime or vapour lock
- Easy maintenance
- Santoprene squeeze tube (2 included) requires no lubrication
- Pump tube: Santoprene, FDA Approved (Versilon optional)
- Suction/Discharge tubing, Ferrules: PE, FDA Approved
- Injection check valve – FKM seal, Ceramic ball, Tantalum spring
- Reliable & Accurate Dosing
- 250 VAC 50Hz
Description
STEN S Series FW 4.01.02 Instruction Manual
STEN S Series Quick Start Guide FW_3.01.01
Stenner Ball Check Valve Instructions
Stenner S Series Spec Sheet rev 091222
Stenner-S-Series-Brochure
| Name |
|---|
|
STEN S Series FW 4.01.02 Instruction Manual
|
|
STEN S Series Quick Start Guide FW_3.01.01
|
|
Stenner Ball Check Valve Instructions
|
|
Stenner S Series Spec Sheet rev 091222
|
|
Stenner-S-Series-Brochure
|
Additional information
| Configuration | Foot Mount |
|---|---|
| Materials | PE Suction and discharge tubing & ferrules, Santoprene Squeeze tube & check valve duckbill, Tube & Injection fittings Type 1 PVC or PP |
| Max Viscosity | 1500 cps |
| IP Rating | IP65 |
| Install Kit Included | 3/8 inch tubing, spare squeeze tube, injection valve & suction filter weight |
| Inputs | 4-20mA, Pulse |
Models / Part Numbers
- STEN S505G for 0.50 to 49.68 l/hr @ 1.7 bar
- STEN S507G for 0.20 to 19.72 l/hr @ 6.9 bar
