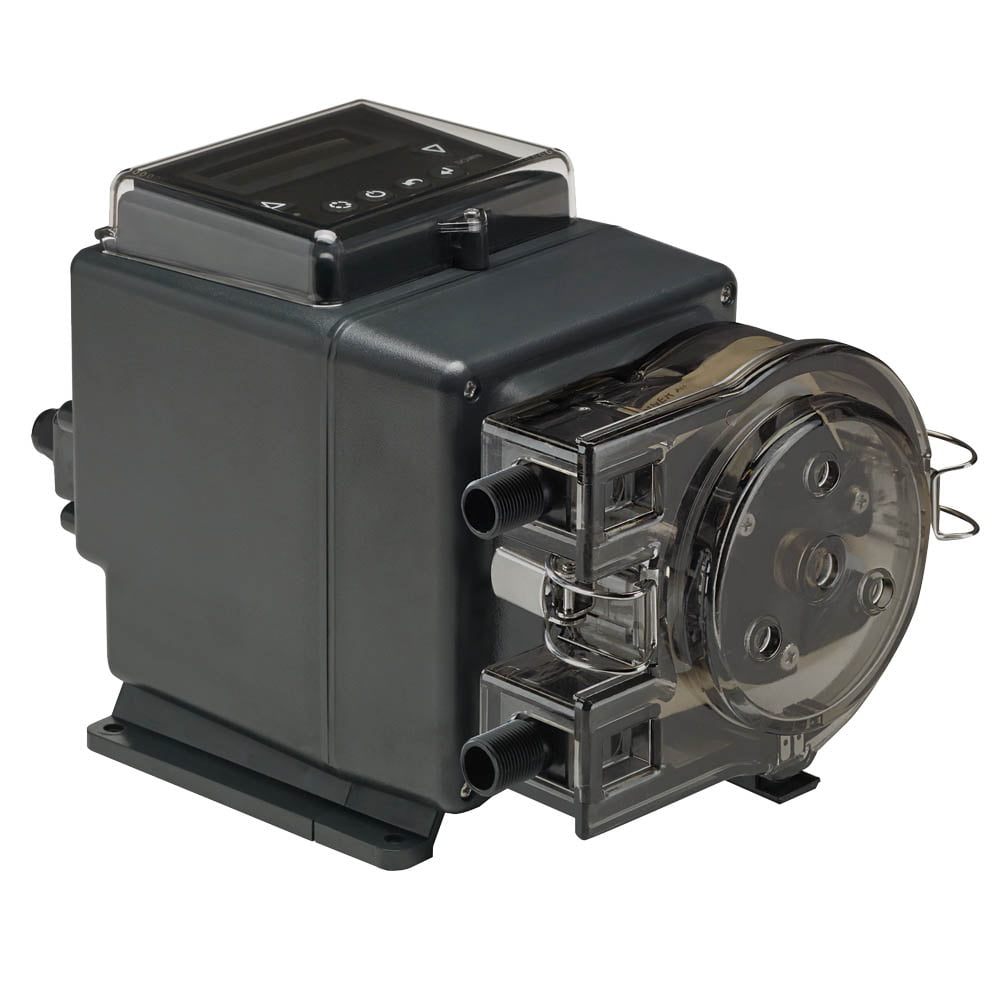

STEN S40 Peristaltic Pump, Variable Speed, 23.66 L/Hr, 6.9 Bar Max

  • Digital keypad with OLED display
  • Brushless motor – designed for continuous operation
  • Tube leak detector
  • Tube life timer
  • Multiple modes
  • Self priming up to 7.6m suction
  • Does not lose prime or vapour lock
  • Easy maintenance
  • Santoprene or Versilon squeeze tube (2 included) requires no lubrication
  • Pump tube & Check Valve Duckbill:  Santoprene, FDA Approved
  • Suction/Discharge tubing, Ferrules:  PE, FDA Approved
  • Reliable & Accurate Dosing
  • 250 VAC 50Hz



  • Model STEN S405X for 0.24 to 23.66 l/hr @ 1.7 bar
  • Model STEN S407X for 0.09 to 9.46 l/hr @ 6.9 bar



Compare
SKU: STEN S40 Category: Brand:

Description

STEN S Series Manual FW_3.01.01
STEN S Series Quick Start Guide FW_3.01.01
STEN S Series S30-S40 Sales Brochure
STEN S Series Spec Sheet
Stenner Ball Check Valve Instructions
Stenner Chemical Resistance Chart
STEN S Series Manual FW_3.01.01
STEN S Series Quick Start Guide FW_3.01.01
STEN S Series S30-S40 Sales Brochure
STEN S Series Spec Sheet
Stenner Ball Check Valve Instructions
Stenner Chemical Resistance Chart
Name

Additional information

Configuration

Foot Mount

Max Flow / Pressure (Head)

0.008 – 6.31 l/hr @ 6.9 bar

Materials

PE Suction and discharge tubing & ferrules, Santoprene Squeeze tube & check valve duckbill, Tube & Injection fittings Type 1 PVC or PP

Max Viscosity

1500 cps

IP Rating

IP65

Install Kit Included

3/8 inch tubing, spare squeeze tube, injection valve & suction filter weight

Inputs

4-20mA, Pulse
