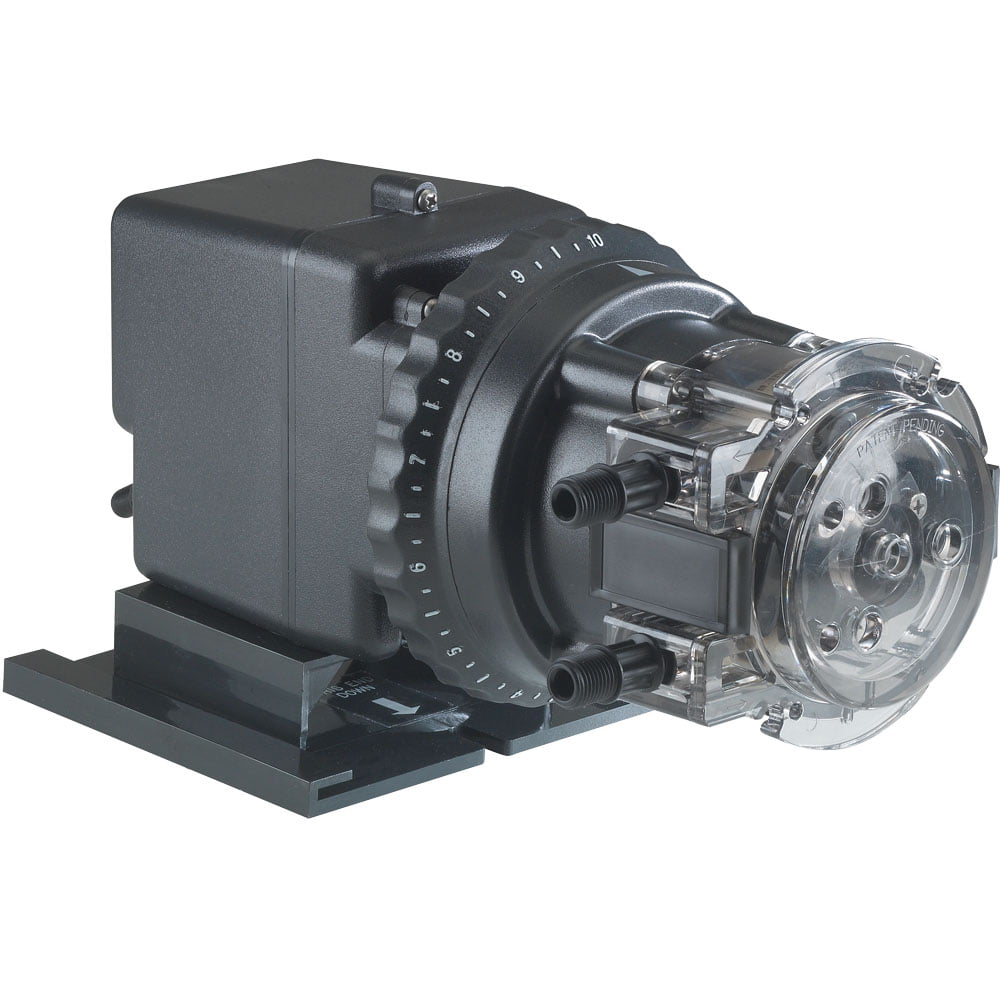

STEN 45 Series Peristaltic Pump, Adjustable Dose Rate 0.14 – 2.78 l/hr, 6.9 bar

  • Designed for continuous operation
  • Self priming up to 8m suction
  • Does not lose prime or vapour lock
  • Output adjustment 5-100%
  • Easy maintenance
  • Santoprene squeeze tube requires no lubrication
  • Reliable & Accurate Dosing

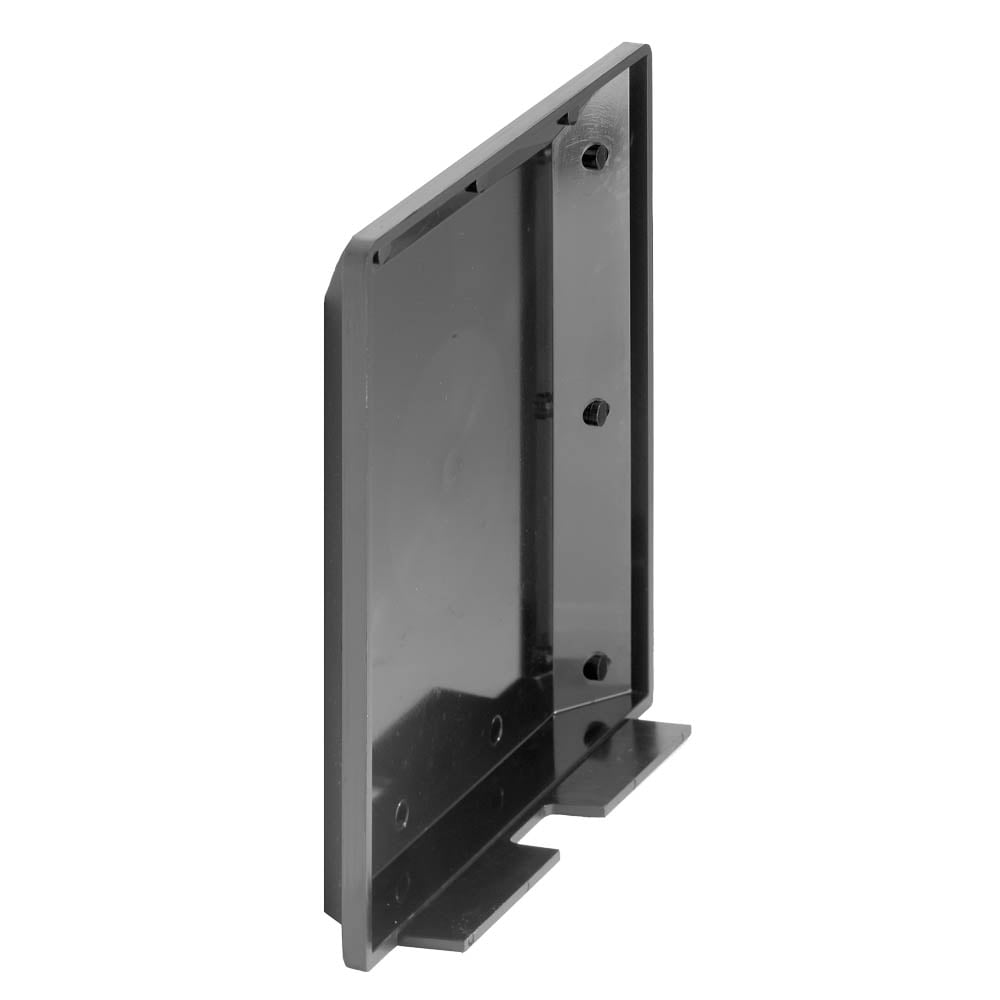

  • Rain cover optional
  • 240 VAC Power Supply
Compare
SKU: STEN 45M Category: Brand:

Description

STEN-45-85-Series-Installation-Instructions.pdf
STEN-45-Data-Sheet-0812P.pdf
STEN-Chemical-Resistance-Chart.pdf
STEN-Classic-Series-Instruction-Manual-Dec-16.pdf
STEN-45-85-Series-Installation-Instructions.pdf
STEN-45-Data-Sheet-0812P.pdf
STEN-Chemical-Resistance-Chart.pdf
STEN-Classic-Series-Instruction-Manual-Dec-16.pdf
Name

Additional information

Configuration

Foot Mount, Wall Mount

Max Flow / Pressure (Head)

2.78 l/hr @ 6.9 bar

Materials

Santoprene Squeeze Tube, PP & PVDF fittings

Max Viscosity

1500 cps

IP Rating

IPX4

Install Kit Included

1/4 inch tube, spare squeeze tube, injection valve & suction filter weight

Optional Tube Size

3/8 inch

You may also like…

  • Installation-Conversion-Kit-STEN-ADAPTKIT CE-138

    STEN ADAPTKIT CE-138 Installation Conversion Kit from 6mm to 3/8 inch Tubing

    Compare
  • Rain-cover-for-Classic-Series-Pumps-STEN-RAIN-COVER-HORIZ

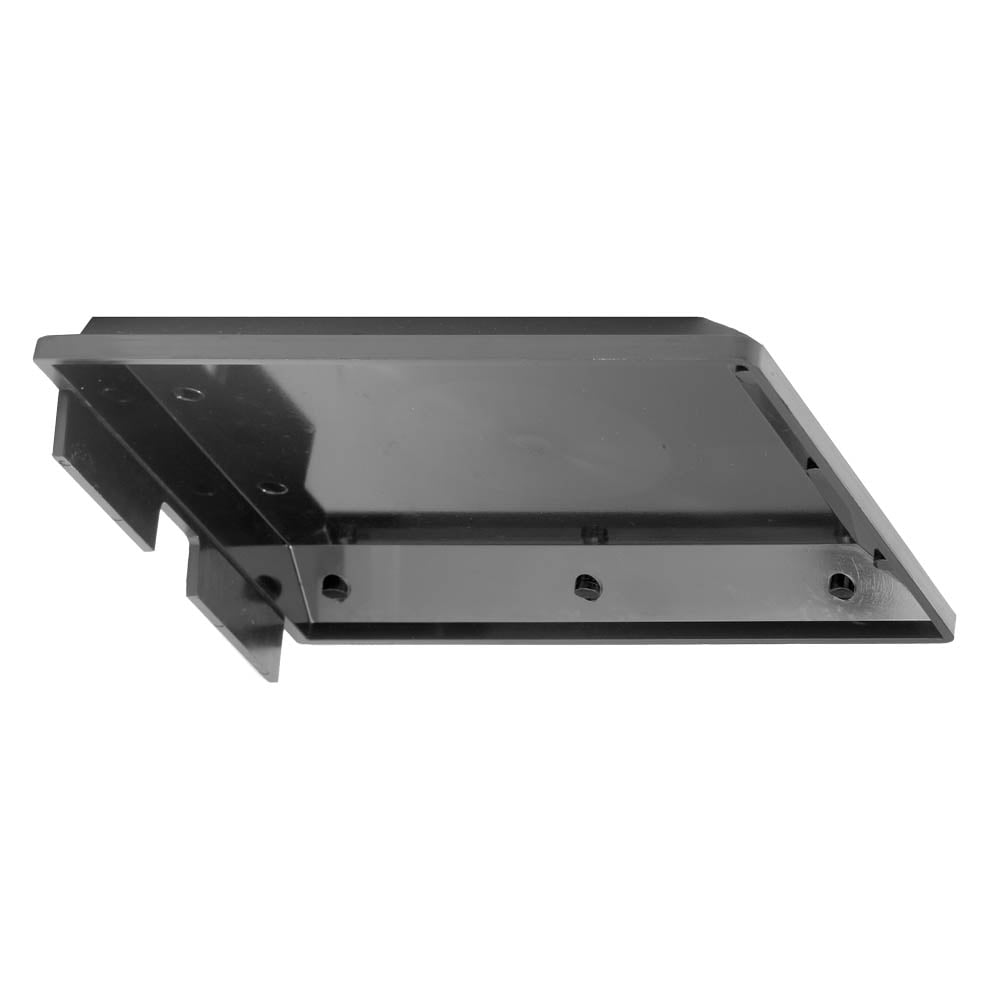

    STEN MP90000 Rain Cover for Classic Series Pumps
