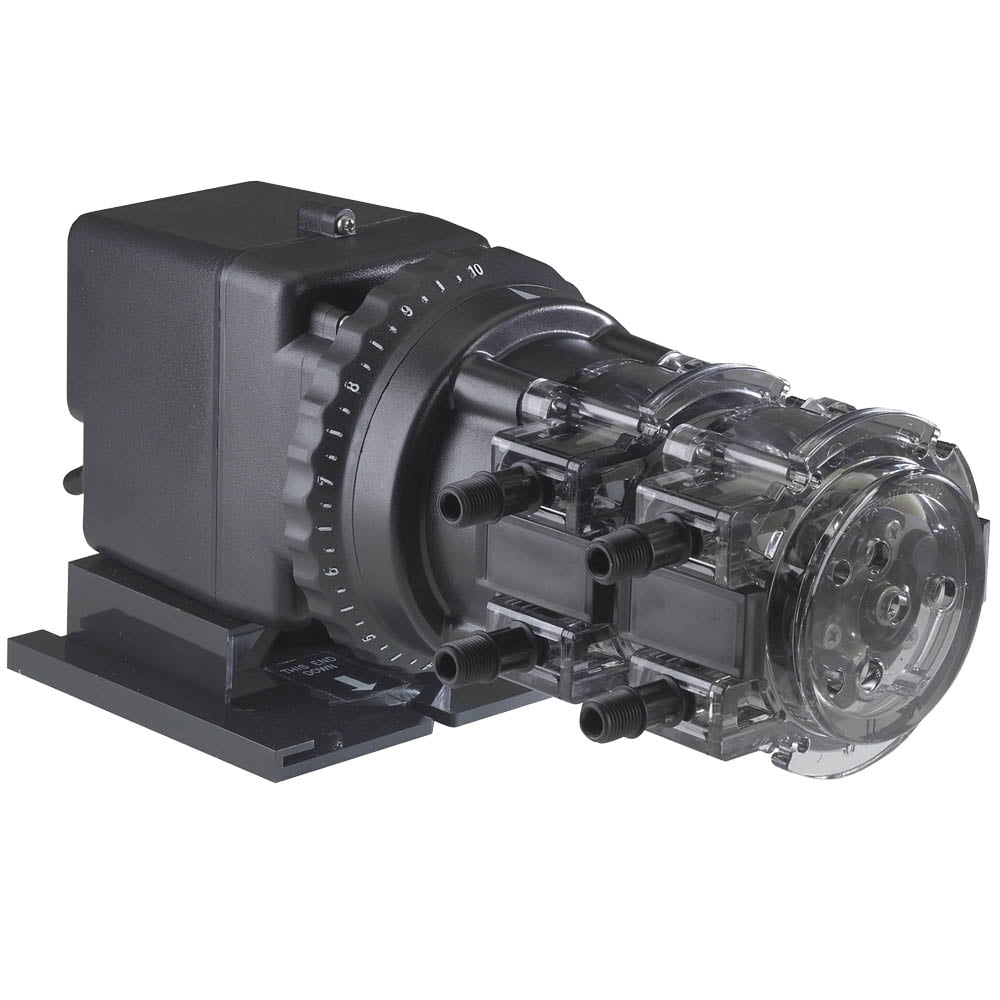

STEN 170 Series Peristaltic Pump, Double Head Adjustable Dose Rate 1 – 21 l/hr, 1.7 bar
- Designed for continuous operation
- Self priming up to 7.6m suction
- Does not lose prime or vapour lock
- Output adjustment 5-100%
- Easy maintenance
- Santoprene squeeze tube requires no lubrication
- Reliable & Accurate Dosing
- Rain cover optional
- 240 VAC Power Supply
Description
STEN-170JL-Double-Head-Adjustable-Spec-Sheet.pdf
STEN-170JL-Instruction-Manual.pdf
STEN-Chemical-Resistance-Chart.pdf
| Name |
|---|
|
STEN-170JL-Double-Head-Adjustable-Spec-Sheet.pdf
|
|
STEN-170JL-Instruction-Manual.pdf
|
|
STEN-Chemical-Resistance-Chart.pdf
|
Additional information
| Configuration | Foot Mount, Wall Mount |
|---|---|
| Max Flow / Pressure (Head) | 21.45 l/hr @ 1.7 bar |
| Materials | PE Suction and discharge tubing & ferrules, Santoprene Squeeze tube & check valve duckbill |
| Max Viscosity | 1500 cps |
| IP Rating | IPX4 |
| Install Kit Included | 1/4 inch tube, spare squeeze tube, injection valve & suction filter weight |
| Optional Tube Size | 3/8 inch |
