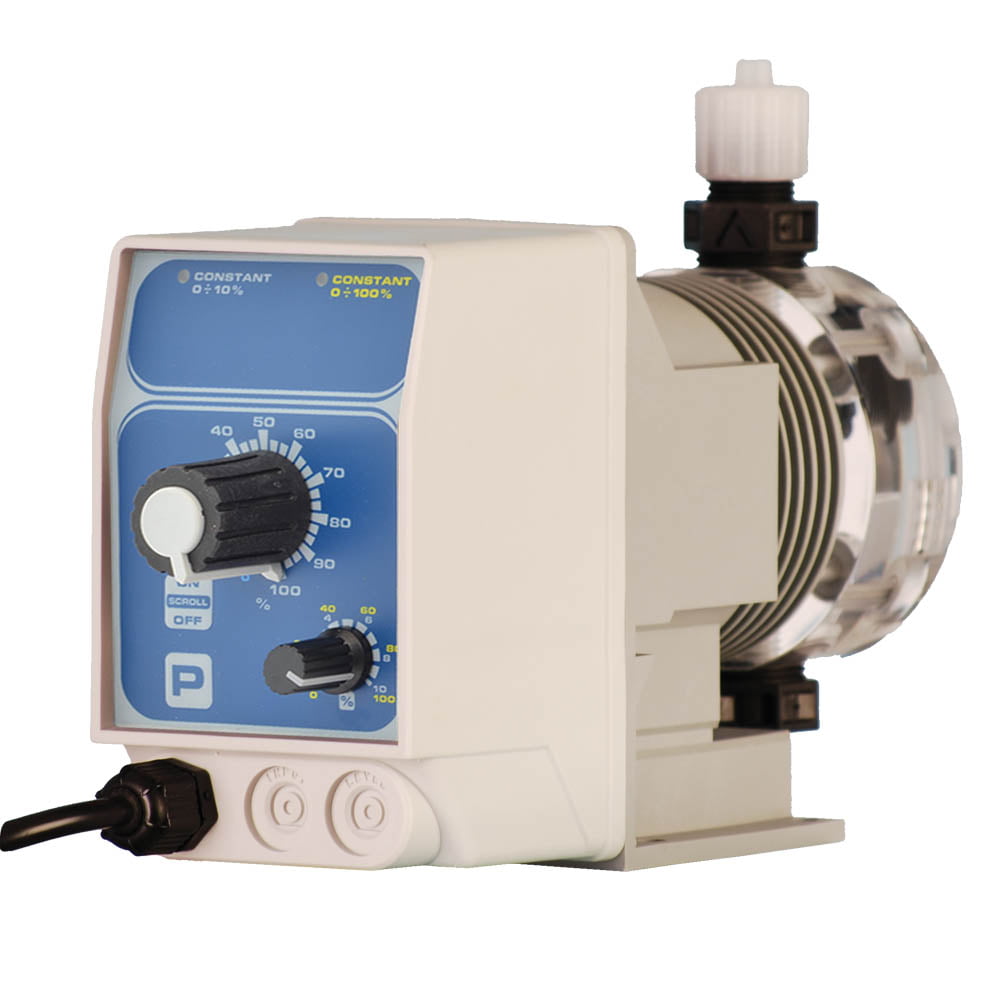

EMEC KCOPLUS LPV (Models 2 l/hr to 18 l/hr) High Viscosity Head
EMEC KCOPLUS LPV (Models 2 l/hr to 18 l/hr) High Viscosity Head
- Includes 3/4 inch Injection valve, 2M of Suction Hose and 2M of Discharge tubing
- Reliable & accurate dosing up to 8,000 cps
- Transparent Acrylic Head with 1/2 inch SS Balls
- 16x22mm Suction Hose and 8×12 Discharge Valve
- Adjustable stroke length (10-100%)
- Solid Teflon diaphragm prevents wear
- Spring loaded injection valve with ceramic ball
- Simple mounting
Description
EMEC Chemical Compatibility Table April 2013
EMEC KCOPLUS_KPLUS_KMF 1802_1005_0510_0218 LPV FP PMMA Spare Parts Exploded Rev 02
EMEC KPLUS-KAPLUS-KCOPLUS Data Sheet R1-17-15
EMEC KPLUS-KAPLUS-KCOPLUS incl LPV Instruction Manual R2-07-21
| Name |
|---|
|
|
|
EMEC Chemical Compatibility Table April 2013
|
|
EMEC KCOPLUS_KPLUS_KMF 1802_1005_0510_0218 LPV FP PMMA Spare Parts Exploded Rev 02
|
|
EMEC KPLUS-KAPLUS-KCOPLUS Data Sheet R1-17-15
|
|
EMEC KPLUS-KAPLUS-KCOPLUS incl LPV Instruction Manual R2-07-21
|
Additional information
| Configuration | Foot Mount, Wall Mount with Optional Bracket |
|---|---|
| Max Flow / Pressure (Head) | 2 l/hr @ 18 bar, 5 l/hr @ 10 bar |
| Process Connection | 3/4 inch BSP Male |
| Materials | FKM B Viton O-rings, PMMA Acrylic Transparent Head, PP Valve Bodies, PTFE Diaghragm/s, PTFE Teflon Seats, SS Balls |
| Max Viscosity | 8000 cps in LPV Models |
| IP Rating | IP65 |
| Install Kit Included | 16×22 suction hose, 8x12mm delivery tube & injection valve in LPV models |
Models / Part Numbers
- EMEC KCOPLUS 18 02 LPV FP PMMA for max 2 l/hr @ 18 bar
- EMEC KCOPLUS 10 05 LPV FP PMMA for max 5 l/hr @ 10 bar
- EMEC KCOPLUS 05 10 LPV FP PMMA for max 10 l/hr @ 5 bar
- EMEC KCOPLUS 02 18 LPV FP PMMA for max 18 l/hr @ 2 bar
