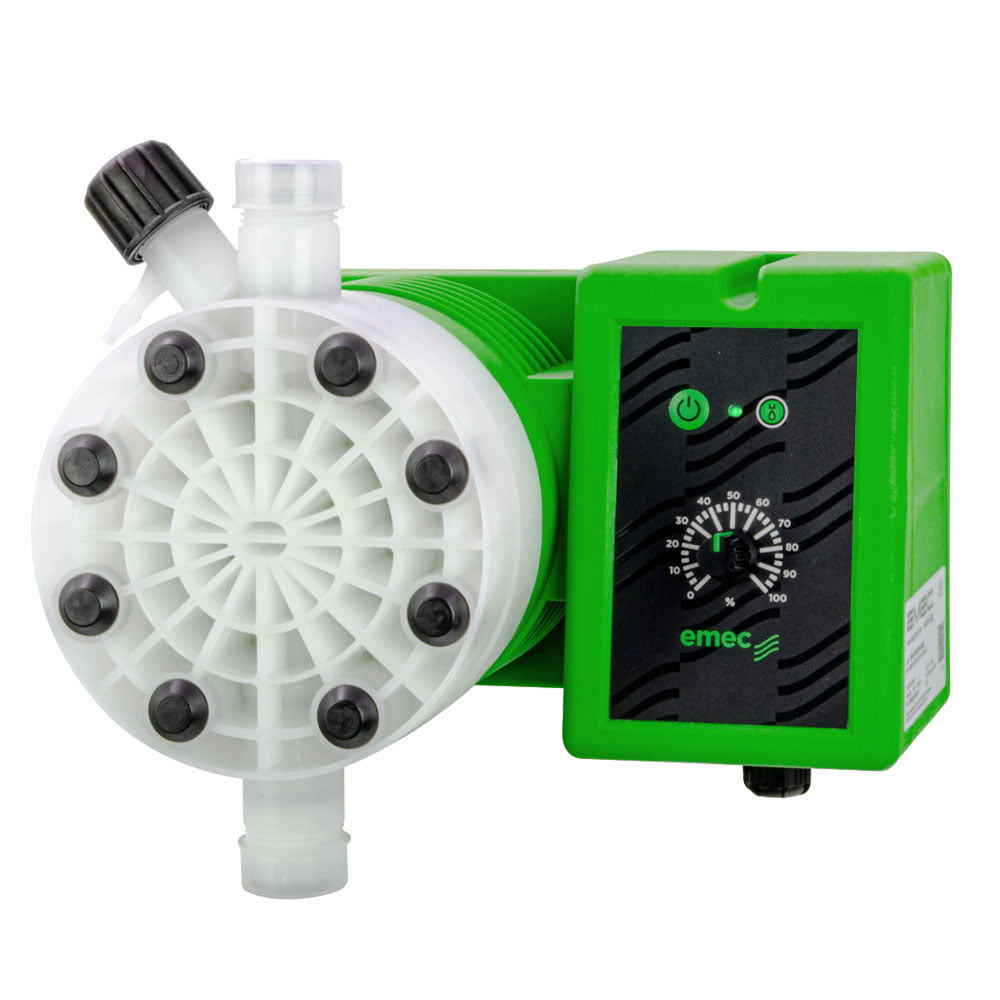

EMEC TCO Pump - Constant Dosing without Level Control
EMEC TCO Constant Mode Pumps (20 l/hr to 30 l/hr)
- Includes foot valve, Injection valve, 2m of Suction tube and 2m of Delivery tube
- Standard head: PVDF with Viton Seals (suitable for Acid or Chlorine)
- Head for Caustic: PP with EPDM seals and SS Balls
- Speed adjustment (1-100%) for varying dose rate
- Additional turndown with 10:1 speed divider
- Double ball check valves in foot valve, suction & discharge valves
- Long lasting Solid Teflon diaphragm
- Reliable & accurate dosing
- Wall mounting with only 2 screws
- TIP: see available Models / Part Numbers below
Description
EMEC Chemical Compatibility Table April 2013
EMEC TCO & TACO Instruction Manual R1-08-13
EMEC TCO Spare Parts v1
| Name |
|---|
|
EMEC Chemical Compatibility Table April 2013
|
|
EMEC TCO & TACO Instruction Manual R1-08-13
|
|
EMEC TCO Spare Parts v1
|
Additional information
| Configuration | Wall Mount |
|---|---|
| Max Flow / Pressure (Head) | 20 l/hr @ 4 bar, 30 l/hr @ 3 bar |
| Process Connection | 1/2 inch BSP Male |
| Materials | Ceramic Balls, EPDM O-rings & Seats, FKM B O-rings & Seats, PP Head, PTFE Diaghragm/s, PVDF Head, PVDF Valve Bodies, SS Balls |
| Max Viscosity | 100 cps, 600 cps with optional SS balls |
| IP Rating | IP65 |
| Install Kit Included | 6x8mm tube (20 l/hr) or 8x12mm tube (30 l/hr), injection valve & foot valve |
| Optional Tube Size | 3/8 inch, 1/2 inch, 5×8, 6×9 or 9x12mm |
Models / Part Numbers
- EMEC TCO 04 20 for max 20 l/hr @ 4 bar
- EMEC TCO 03 30 for max 30 l/hr @ 3 bar
- Add FP to Product Code above for PVDF head, Viton seals & CE Balls
- Add PP EP SS to Product Code above for PP head, EPDM seals & SS Balls
