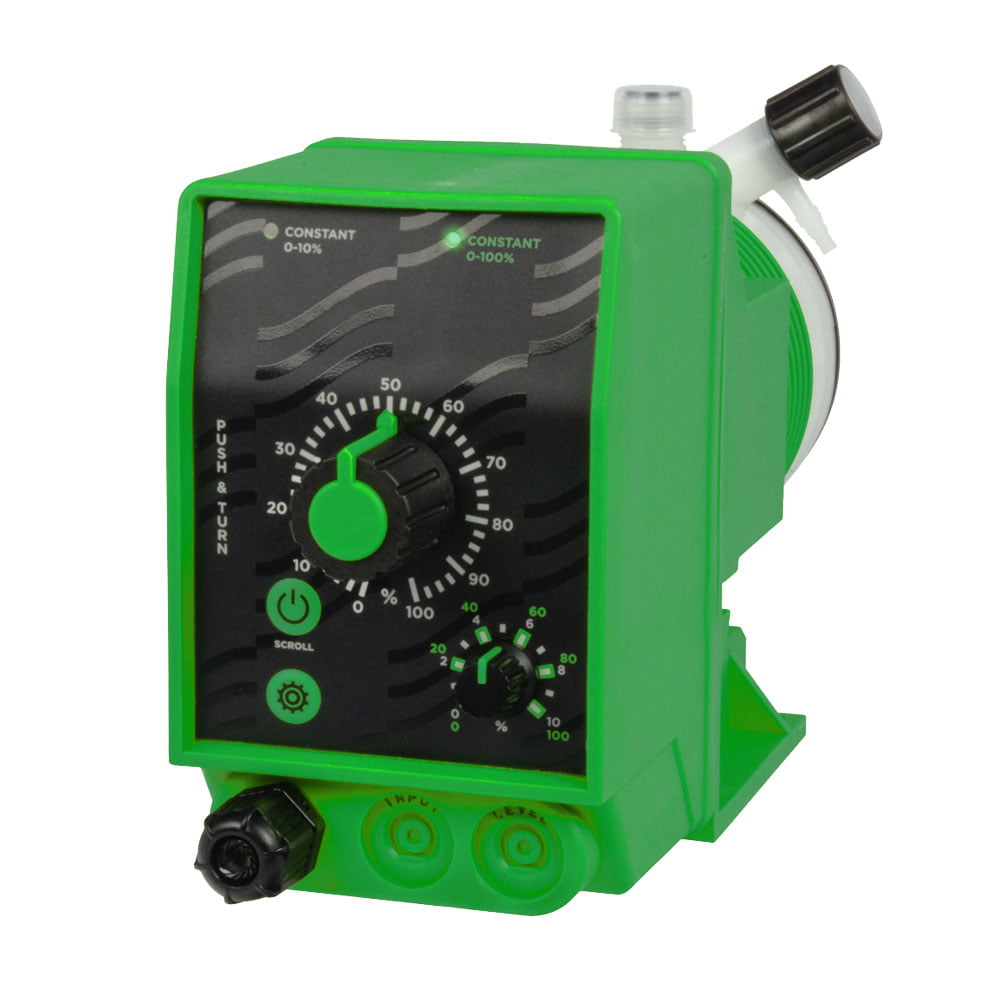

EMEC KCOPLUS Constant Mode Pumps (2 l/hr to 18 l/hr)

  • Includes Installation Kit, i.e. foot valve, injection valve, 2m of Suction tube and 2m of Delivery tube
  • Selectable Modes:  Constant, Constant divided by 10
  • Standard head: PVDF with Viton Seals
  • Head for Caustic: PP with EPDM seals and SS Balls
  • High Viscosity heads for Polymer: KCOPLUS LPV models only (8000 cps max.)
  • Adjustable stroke length (10-100%)
  • Double ball check valves in foot valve, suction & deliver valves
  • Long lasting Solid Teflon diaphragm
  • Reliable & accurate dosing
  • Wall Mount with optional Front or Side Mount Bracket
  • TIP:  see available Models / Part Numbers below
Compare
SKU: EMEC KCOPLUS Category: Tag: Brand:

Description

Superseded
EMEC Chemical Compatibility Table April 2013
EMEC KCOPLUS 1802_1005_0510 EP Spare Parts Exploded Rev 01
EMEC KCOPLUS 1802_1005_0510 FP Spare Parts Exploded Rev 01
EMEC KCOPLUS 1802_1005_0510 PP EP SS Spare Parts Exploded Rev 01
EMEC KCOPLUS_KPLUS_KMF 1802_1005_0510_0218 LPV FP PMMA Spare Parts Exploded Rev 02
EMEC KPLUS-KAPLUS-KCOPLUS Data Sheet R1-17-15
EMEC KPLUS-KAPLUS-KCOPLUS incl LPV Instruction Manual R2-07-21
Quick_guide_KCO_KCL_PLUS
Superseded
EMEC Chemical Compatibility Table April 2013
EMEC KCOPLUS 1802_1005_0510 EP Spare Parts Exploded Rev 01
EMEC KCOPLUS 1802_1005_0510 FP Spare Parts Exploded Rev 01
EMEC KCOPLUS 1802_1005_0510 PP EP SS Spare Parts Exploded Rev 01
EMEC KCOPLUS_KPLUS_KMF 1802_1005_0510_0218 LPV FP PMMA Spare Parts Exploded Rev 02
EMEC KPLUS-KAPLUS-KCOPLUS Data Sheet R1-17-15
EMEC KPLUS-KAPLUS-KCOPLUS incl LPV Instruction Manual R2-07-21
Quick_guide_KCO_KCL_PLUS
Name
Superseded

Additional information

Configuration

Foot Mount, Wall Mount with Optional Bracket

Max Flow / Pressure (Head)

10 l/hr @ 5 bar, 2 l/hr @ 18 bar, 5 l/hr @ 10 bar

Process Connection

1/2 inch BSP Male

Materials

Ceramic Balls, EPDM O-rings & Seats, FKM B O-rings & Seats, PP Head, PTFE Diaghragm/s, PVDF Head, PVDF Valve Bodies, SS Balls

Max Viscosity

100 cps, 600 cps with optional SS balls, 8000 cps in LPV Models

IP Rating

IP65

Install Kit Included

16×22 suction hose, 8x12mm delivery tube & injection valve in LPV models, 4x6mm tube, injection valve & foot valve

Optional Tube Size

1/4 inch, 3/8 inch, 5×8 or 6x9mm

Models / Part Numbers

  • EMEC KCOPLUS 18 02 for max 2 l/hr @ 18 bar
  • EMEC KCOPLUS 10 05 for max 5 l/hr @ 10 bar
  • EMEC KCOPLUS 05 10 for max 10 l/hr @ 5 bar
  • EMEC KCOPLUS 02 18 for max 18 l/hr @ 2 bar
  • Add FP to Product Code above for PVDF head, Viton seals & CE Balls
  • Add EP to Product Code above for PVDF head, EPDM seals & CE Balls
  • Add PP EP SS to Product Code above for PP head, EPDM seals & SS Balls
  • Add LPV FP PMMA to Product above for high viscosity head
