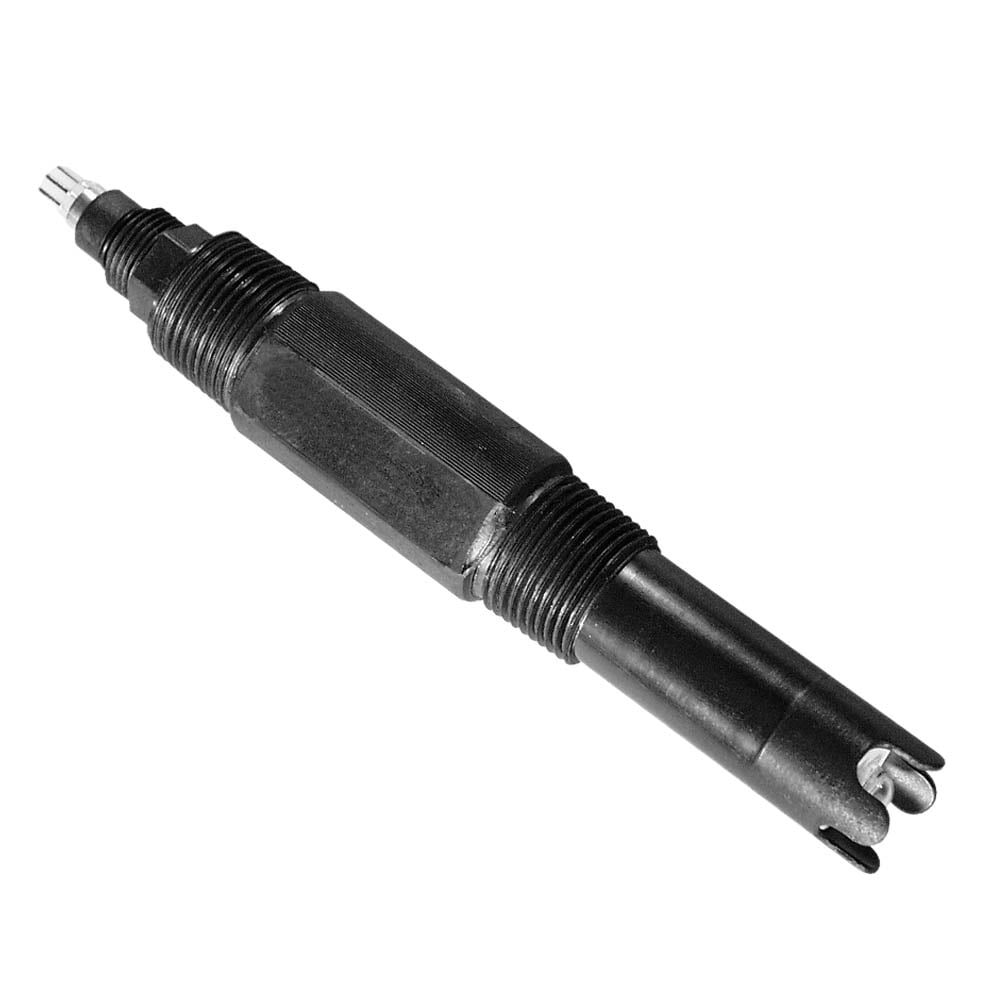

WA M-21-HPH Industrial DJ 3/4 inch MNPT pH Probe, Long Insertion Depth 1
WA M-21-HPH Industrial DJ 3/4 inch MNPT pH Probe, Long Insertion Depth
- 0-80° Operating Temperature
- Porous Teflon liquid junction resists fouling & chemical attacks
- Cast-In-Place solid reference electrolyte helps maintain a constant reference cell potential
- Internal plunger permits 360deg mounting
- Double junction reference cell increases service life in some applications
- Threaded 3/4 inch NPT ends allows submersion with submersible probe holder
- Long insertion depth of 58mm
- Optional Submersible Connector type probe with TOP68 cable of various lengths available
Description
AN040 pH & ORP Electrode Questionnaire
General Instructions for pH/ORP Probes
WA M-21-HPH Data Sheet
| Name |
|---|
|
AN040 pH & ORP Electrode Questionnaire
|
|
General Instructions for pH/ORP Probes
|
|
WA M-21-HPH Data Sheet
|
Additional information
| Variables Measured | pH |
|---|---|
| Outputs | pH |
| Max Pressure / Temp | 6.9 bar @ 80°C |
| Process Connection | 3/4 inch MNPT |
| Materials | FPM Viton O-rings, Ryton Body |
| IP Rating | IP65 |
