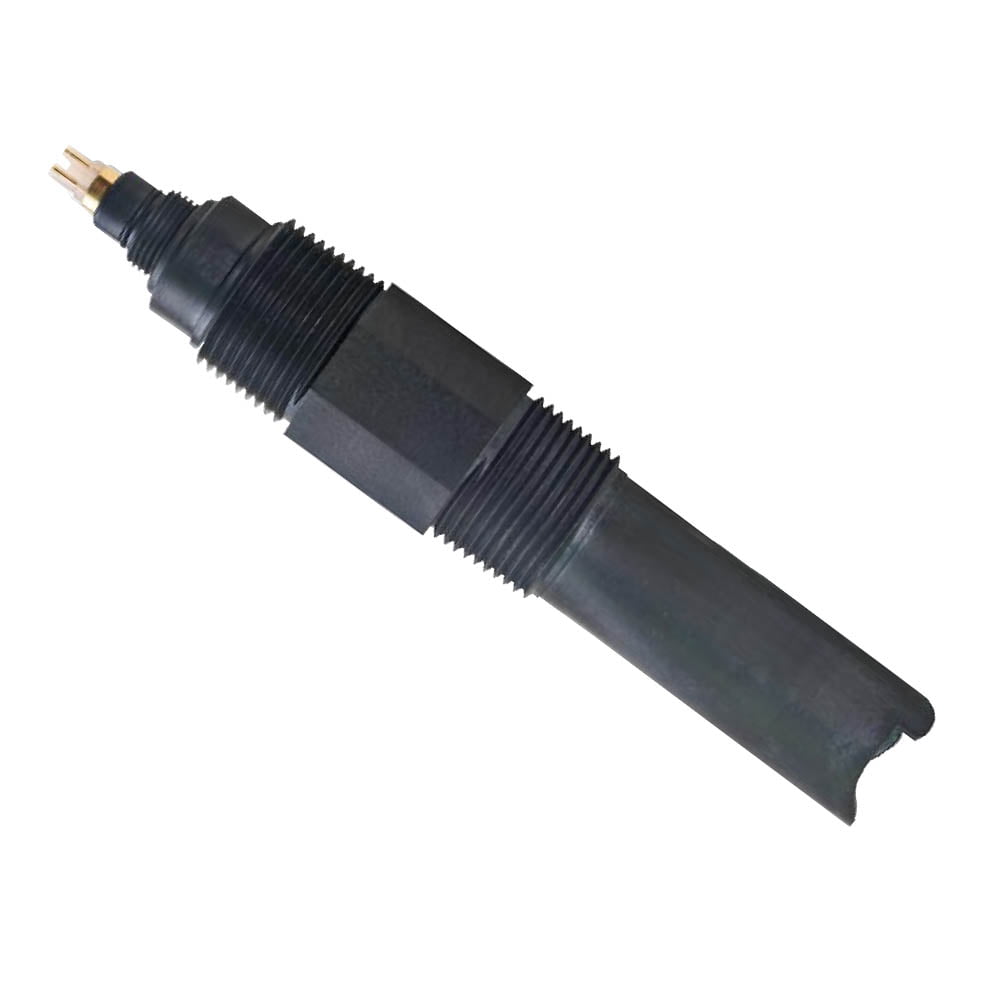

WA OPF19-LP12C8 Severe Service 1" NPT Triple Junction pH Probe 1
WA OPF19-LP12C8 Severe Service 1″ NPT Triple Junction pH Probe
- Triple Junction Non-fouling Reference Cell Minimizes Potential Poisoning
- 110°C at 10 Bar Max Operation
- Built-in Temperature Compensation
- Flat Surface Glass Membrane
- Scalloped guard to protect flat pH membrane & promote self cleaning-effect
- 1 inch NPT Process Connection
- Subermersible with TOP68/NEMA 6 Connector (Cable not included)
Description
AN040-pH-ORP-Electrode-Questionnaire-v1.0.pdf
WA-OPF19-Data-Sheet.pdf
pH-Sensors-Instruction-Manual.pdf
| Name |
|---|
|
AN040-pH-ORP-Electrode-Questionnaire-v1.0.pdf
|
|
WA-OPF19-Data-Sheet.pdf
|
|
pH-Sensors-Instruction-Manual.pdf
|
Additional information
| Variables Measured | pH, Temperature |
|---|---|
| Outputs | pH |
| Max Pressure / Temp | 10.3 bar @ 110°C |
| Process Connection | 1 inch MNPT |
| Materials | FPM Viton O-rings, Ryton Body |
| IP Rating | IP65 |
