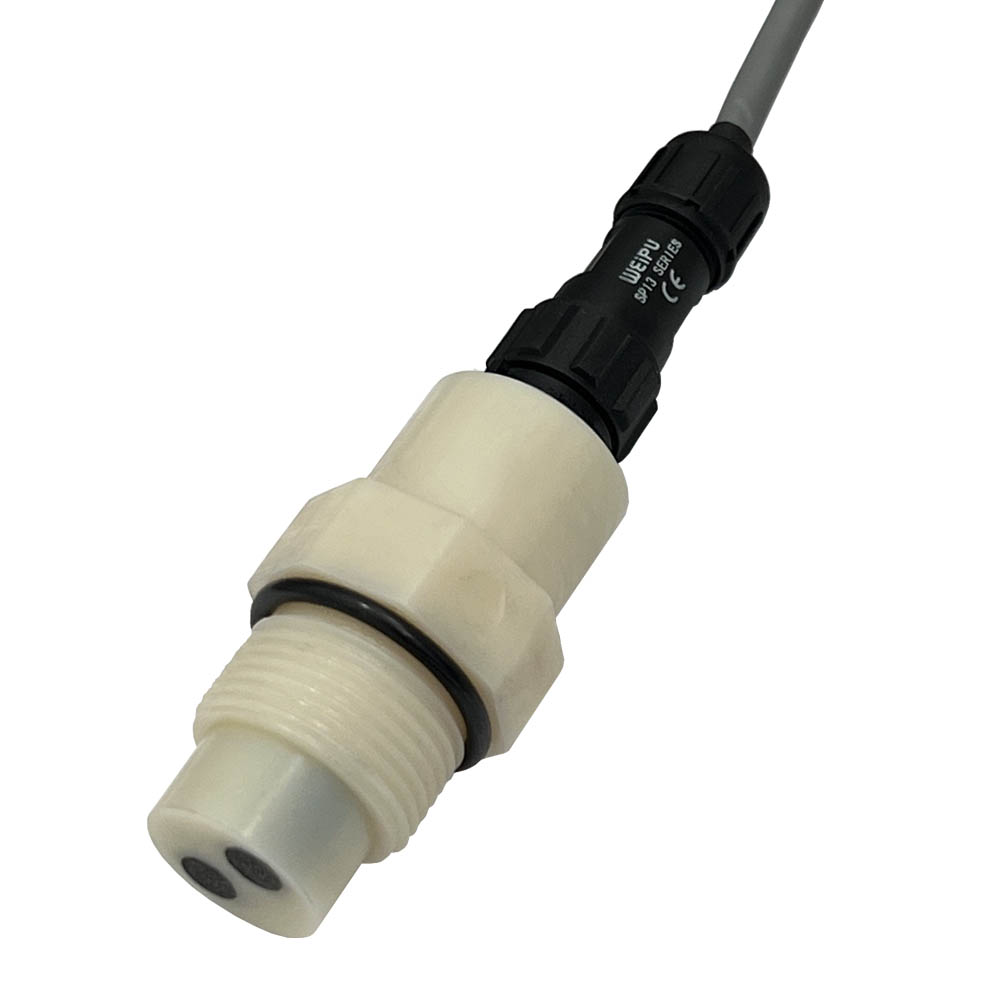

SP-DCON-PB10AT-P DIGICHEM TDS Probe, New Style with plastic connector and Lead

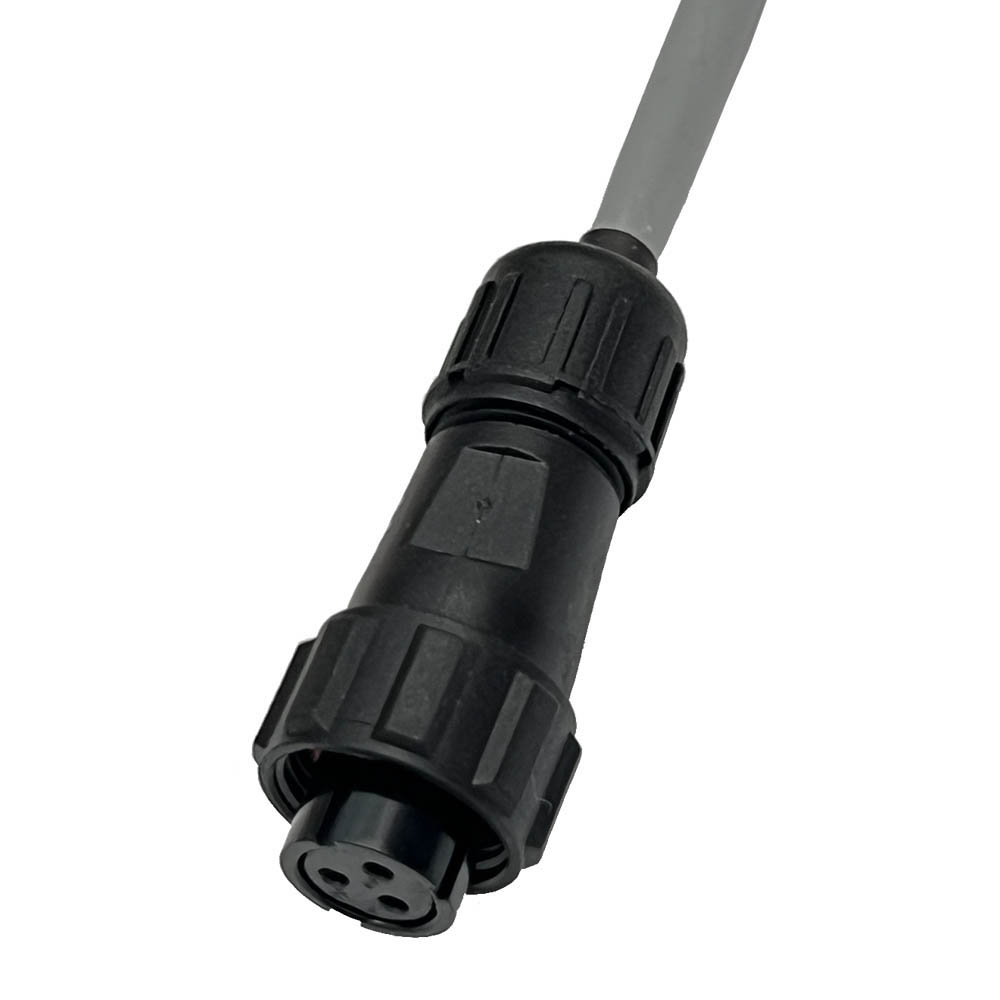

SP-DCON-PB10AT-PL Probe Lead for New Style Probe

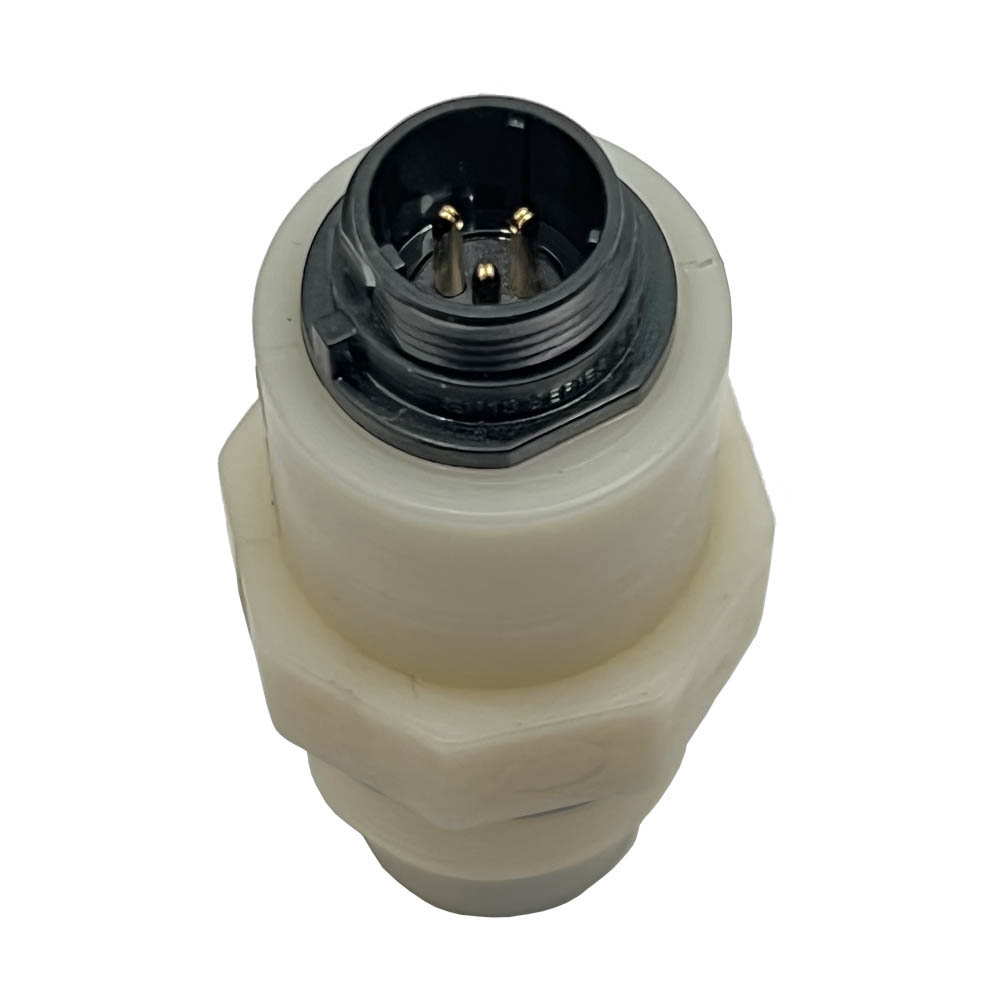

SP-DCON-PB10AT-P Connector at back of Probe

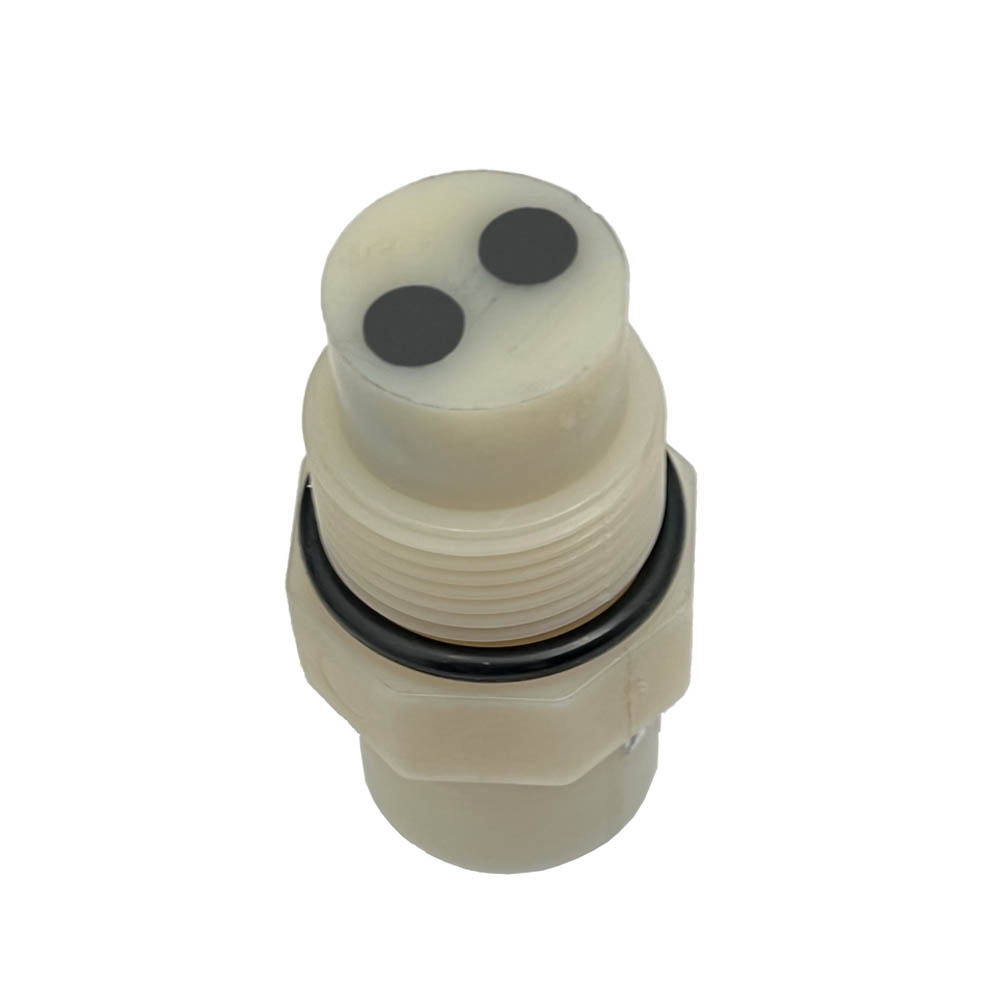

Conductivity Probe showing Carbon Electrodes
SP-DCON-PB10AT-P DIGICHEM TDS Probe, New Style with plastic connector
- 0 – 10,000 µS/cm
- One Piece Injection Moulded Body
- all-plastic non corroding plug connector
- Flush carbon electrodes
- 3/4 inch BSP
- 7.5 Bar at 40°C or 3 Bar at 50°C Max operation
- 47K ohm NTC Temperature compensation
- Only suitable for use with the following controllers; NANO-NC2, DIGICHEM, DIGICHEM Plus
- Does not include optional Lead (SP-DCON-PB10AT-PL)
Additional information
| Variables Measured | Conductivity, TDS |
|---|---|
| Max Pressure / Temp | 3 bar @ 50°C, 7.5 bar @ 40°C |
| Process Connection | 3/4 inch BSP Male |
| Materials | PVC Body |
| IP Rating | IP65 |
