SP-DCON-P10AT-P DIGICHEM TDS Probe, Old Style with metal connector and Probe Lead

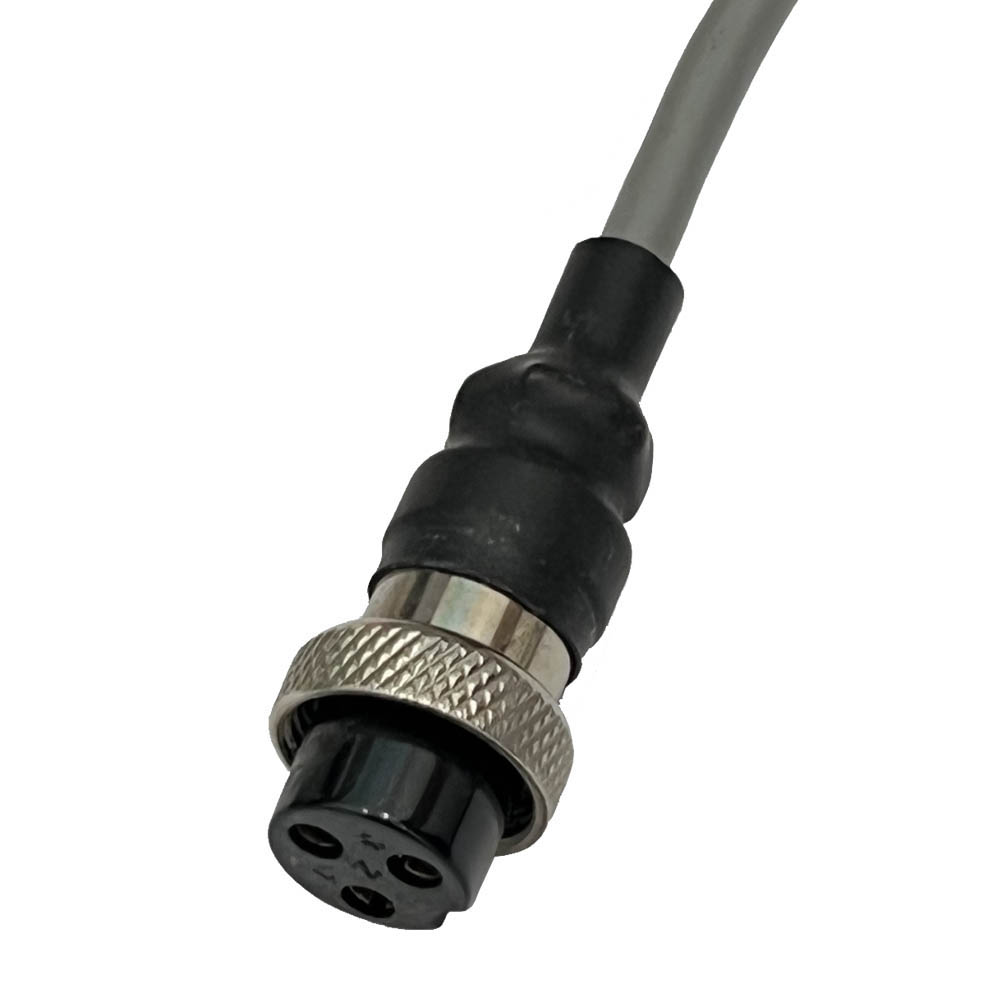

SP-DCON-P10AT-PL New Style Probe Lead

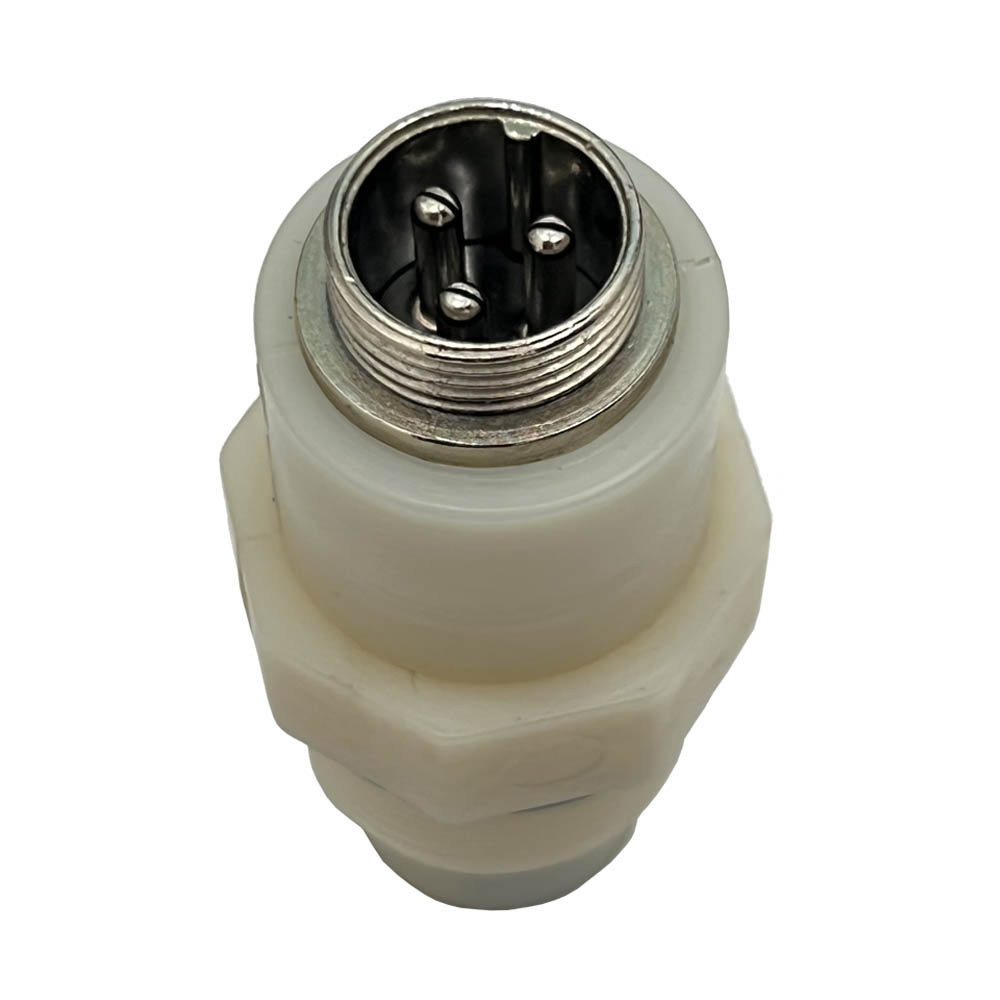

SP-DCON-P10AT-P Connector at back of Probe
Conductivity Probe showing Carbon Electrodes
SP-DCON-P10AT-P DIGICHEM TDS Probe, Old Style with metal connector
- 0 – 10,000 µS/cm
- Flush carbon electrodes
- 3/4 inch BSP
- 7.5 Bar at 40°C or 3 Bar at 50°C Max operation
- 47K ohm NTC Temperature compensation
- Only suitable for use with the following controllers; NANO-NC2, DIGICHEM, DIGICHEM Plus
- Does not include optional Lead (SP-DCON-P10AT-PL)
- Refer SP-DCON-PB10AT-P for new controllers that have blue all-plastic connectors on end of probe lead
Additional information
| Variables Measured | Conductivity, TDS |
|---|---|
| Max Pressure / Temp | 3 bar @ 50°C, 7.5 bar @ 40°C |
| Process Connection | 3/4 inch BSP Male |
| Materials | PVC Body |
| IP Rating | IP65 |
