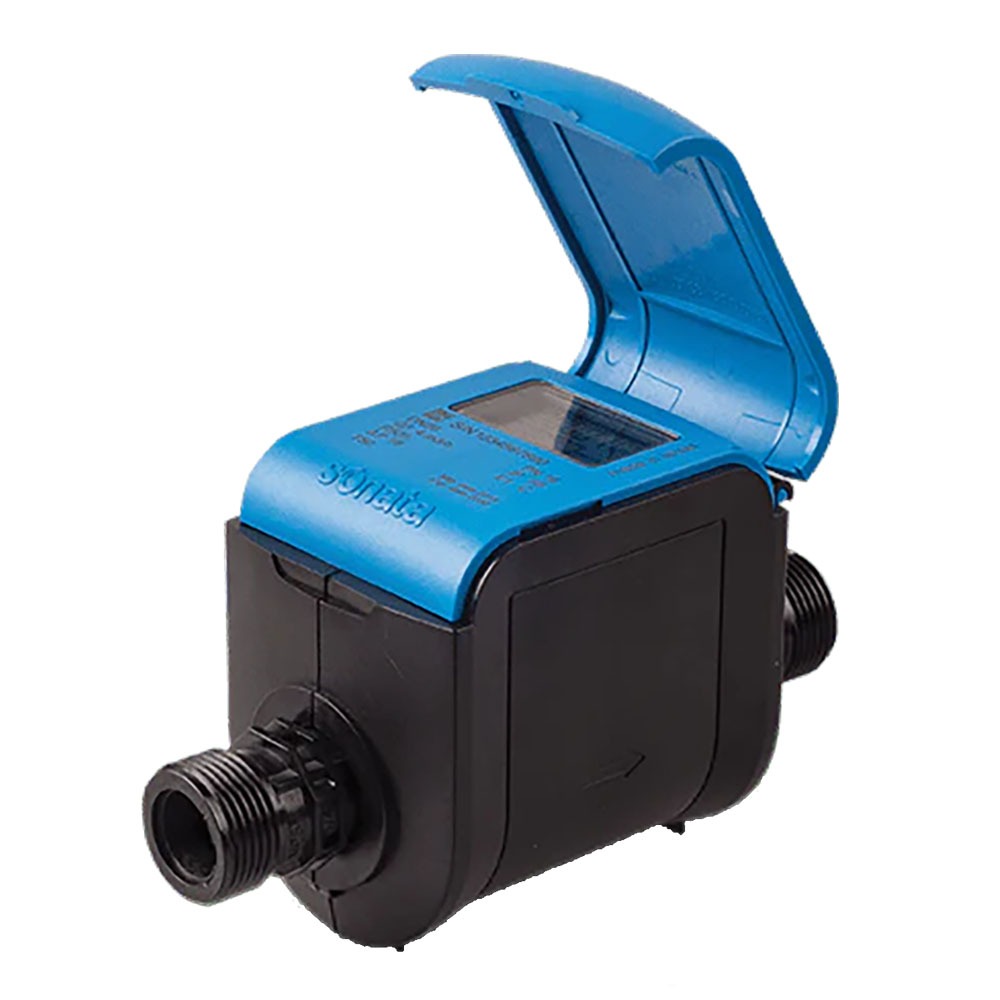

AD-SONATA-ARAD-ULTRASONIC-METER

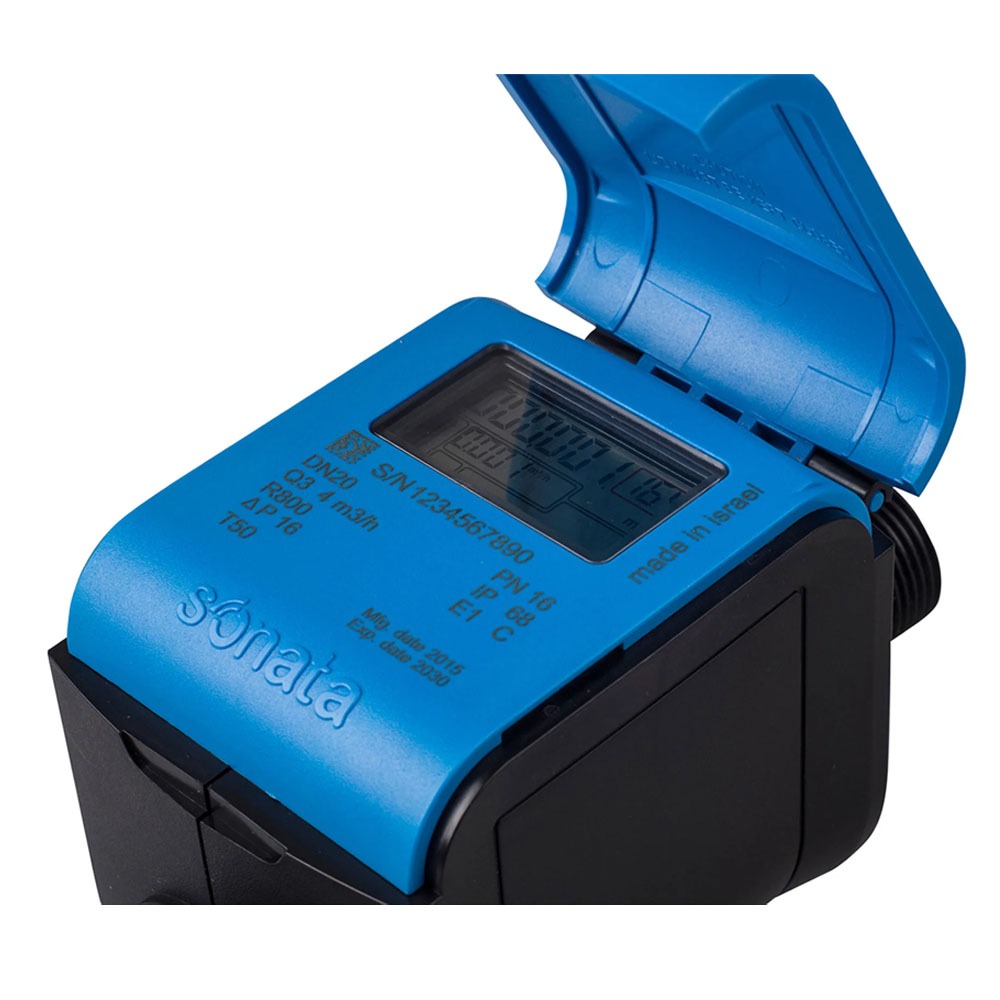

AD-SONATA-ARAD-ULTRASONIC-METER-FACE

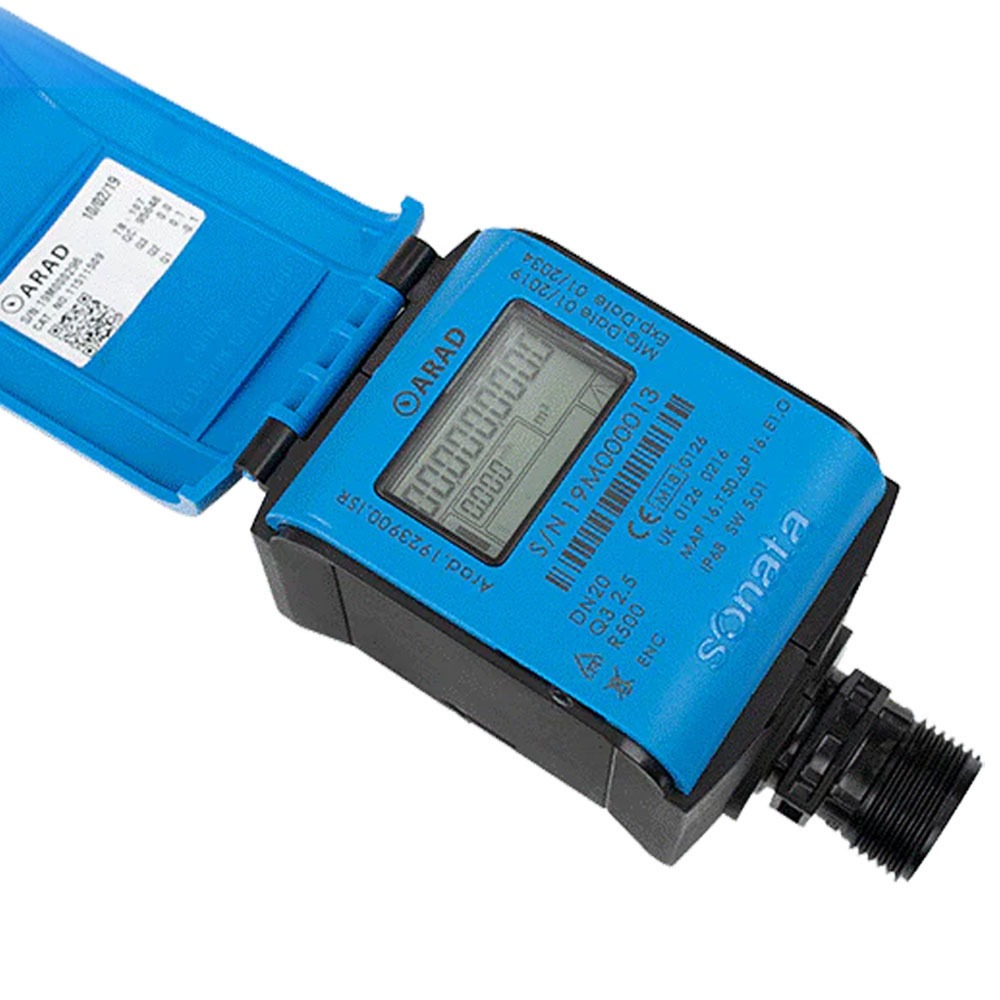

AD-SONATA-ARAD-ULTRASONIC-METER-FACE2

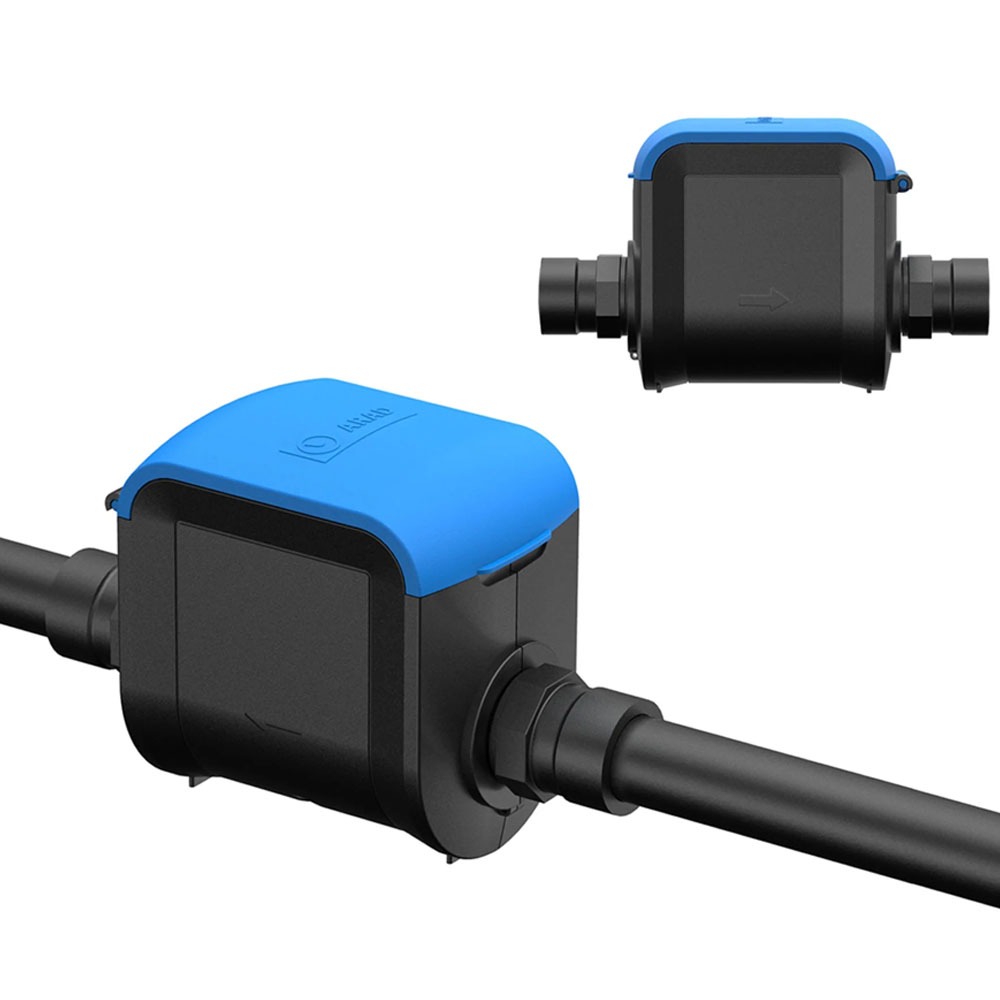

AD-SONATA-ARAD-ULTRASONIC-METER-IN-SITU
Ultrasonic Water Meters – ARAD Sonata
- Available in 3/4” and 1” only
- Unique “free passage” (see-through) design- patent pending
- Ultrasonic technology for precise and ultra reliable metering
- No moving parts
- Excellent long-term stability and reliability
- Battery powered -up to 15 years life expectancy
- Rugged mechanical design – Submersible (IP68)
- Extremely sensitive and accurate in low flows, down to 2l/h
- Wide measurement range- R500
- Bi-directional flow measurements
- Flexible data formats including flow directions, flow rates and volumes
- Multi-line LCD
- Programmable Display (units and outputs resolution)
Description
ARAD-SONTATA_Data-Sheet-ENG-1
ARAD-Sonata-Quick-Installation-Guide-Eng_161019
| Name |
|---|
|
ARAD-SONTATA_Data-Sheet-ENG-1
|
|
ARAD-Sonata-Quick-Installation-Guide-Eng_161019
|
Additional information
| Variables Measured | Flow Volume |
|---|---|
| Outputs | 4-20mA, Pulse |
| Max Flow / Pressure (Head) | 12.5 m3/hr @ 16 bar |
| Max Pressure / Temp | 16 bar @ 50°C |
| Port Size | 1 inch BSP Male, 3/4" BSP Male |
| Materials | PPS Composite |
| IP Rating | IP68 |
Models / Part Numbers
- AD-SONATA-20 for Ultrasonic Meter 3/4″ BSP
- AD-SONATA-25 for Ultrasonic Meter 1″ BSP
