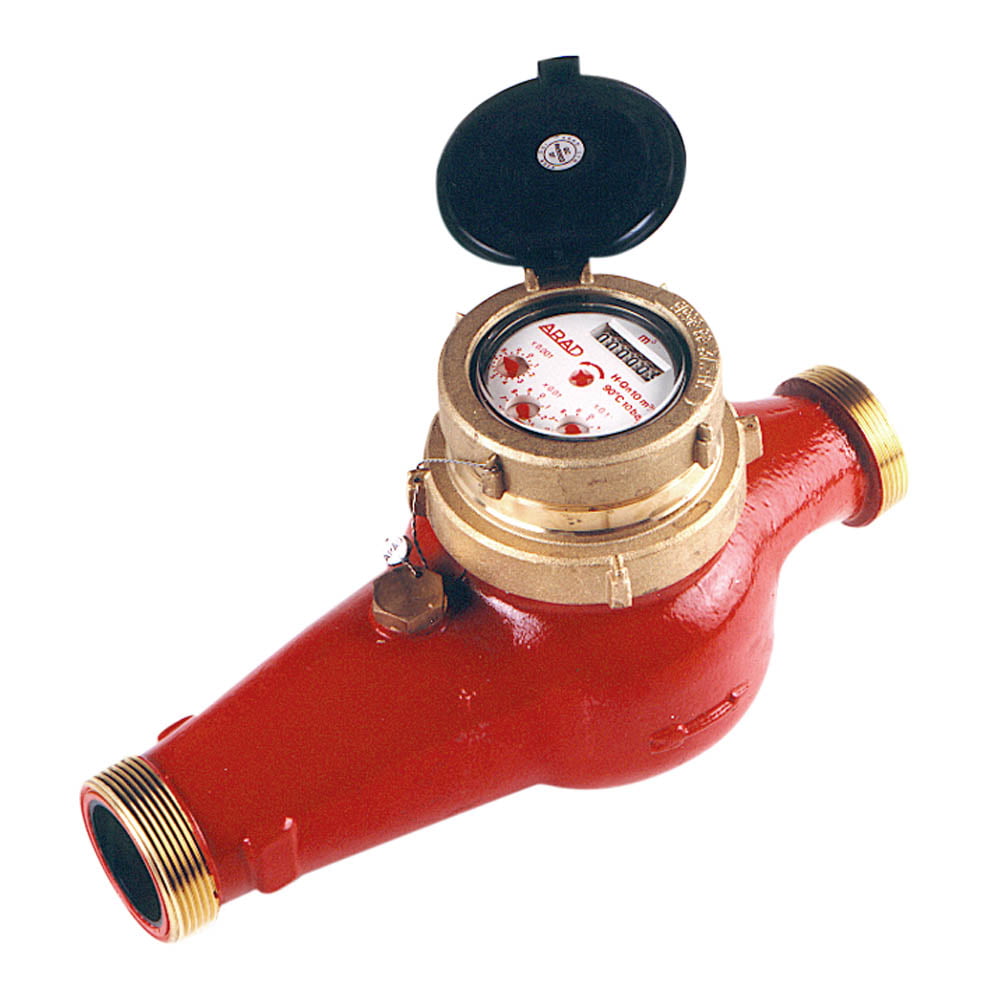

Hot Water Meters - ARAD Multijet Pulse 1
Hot Water Meters – ARAD Multijet Pulse
- Replace XX with size (15, 20, 25, 40, 50)
- For Pulse Output versions, add no. of litres per pulse at end of code (eg. 1P/L or 1P/10L)
- Code example: AD-MH-25-1P/L (i.e. 25mm, 1, 1 pulse per litre)
- Reliable – impeller only moving part in contact with water
- Magnetically driven sealed registers
- Ideal for domestic, agriculture or industrial use
- Threaded fittings
- Supplied with pulse lead (Pulse version only)
- Coupling sets not included (To be ordered as separate part nos)
- See data sheet for different sizes and pulse outputs
Description
ARAD-AD-M-Multijet-Installation-Instructions.pdf
ARAD-AD-M-Multijet-Meters-Instruction-Manual-01-2015.pdf
ARAD-MultiJet-M-Water-Meter-Data-Sheet-2017-v1.pdf
| Name |
|---|
|
ARAD-AD-M-Multijet-Installation-Instructions.pdf
|
|
ARAD-AD-M-Multijet-Meters-Instruction-Manual-01-2015.pdf
|
|
ARAD-MultiJet-M-Water-Meter-Data-Sheet-2017-v1.pdf
|
Additional information
| Variables Measured | Flow Volume |
|---|---|
| Outputs | Pulse |
| Max Flow / Pressure (Head) | 1.5 m3/hr @ 10 bar, 10 m3/hr @ 10 bar, 12 m3/hr @ 10 bar, 20 m3/hr @ 10 bar, 30 m3/hr @ 10 bar, 5 m3/hr @ 10 bar |
| Max Pressure / Temp | 10 bar @ 90°C |
| Port Size | 1 inch BSP Male, 1-1/2 inch BSP Male, 1-1/4 inch BSP Male, 1/2 inch BSP Male, 2 inch BSP Male, 3/4" BSP Male |
| Materials | Corrosion Proof Copper Alloy Body |
| IP Rating | IP65 |
