AD-OCT-COMP

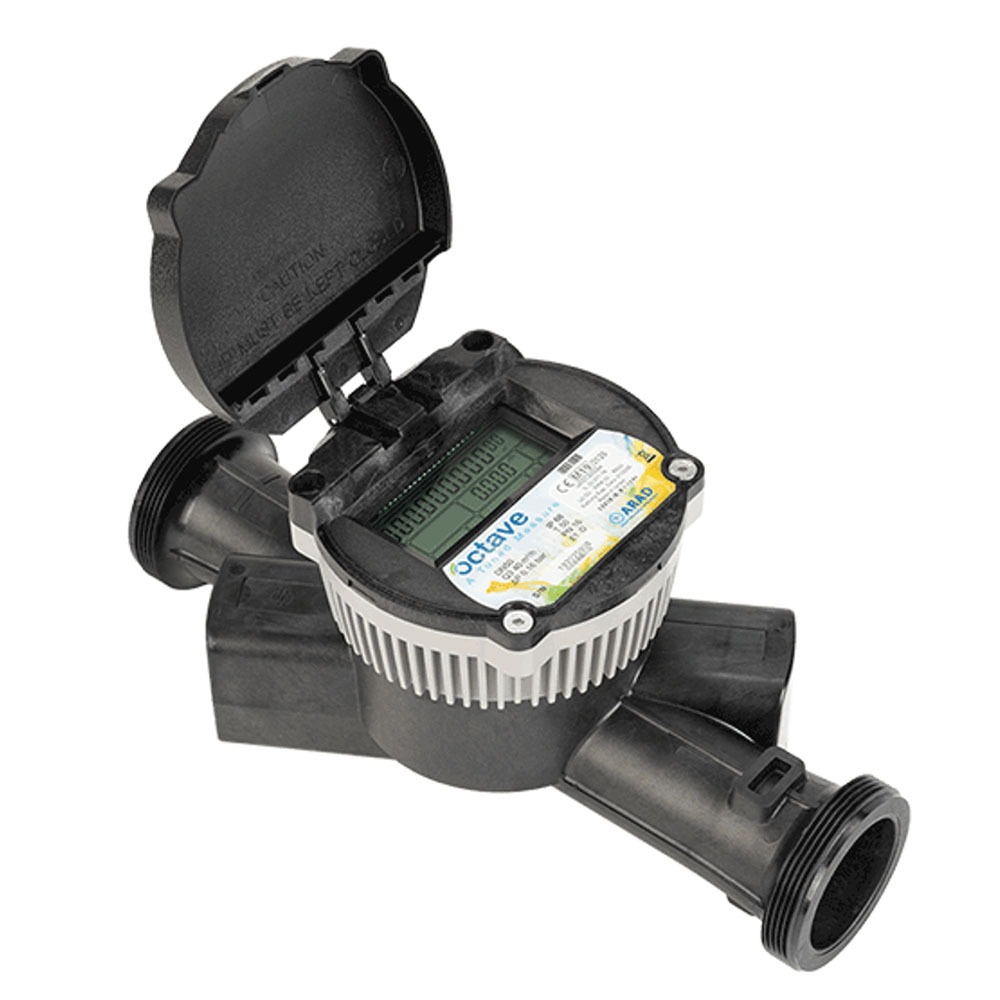

Ultrasonic Bulk Water Meters – ARAD Octave Composite
- Replace XXX in SKU with size (050, 080, 100, 150, 200)
- Code example: AD-OCT-050-NSP-COMP (i.e. 50mm, 2 inch, BSP Male)
- Composite plastic body IP68
- Dual Beam Ultrasonic
- No moving parts
- Long life battery – up to 15 years
- No installation restrictions
- 16 bar, 50 deg C max
- Optional pulse adaptor kit, open drain pulse output, part no AD-70220-000028 (Note: meters are pre-programmed for pulse)
- Optional 4-20mA output (loop powered) or digital pulse output (SSR), part no AD-70220-000031 (suits SW 4.02.17 upward only & retrofit requires NFC programming kit)
- Optional AD-70220-000470 NFC Programming kit (suits SW 4.0 upward only)
- Watermark for 40mm and 50mm threaded Octave meters only
Description
ARAD Octave Data Sheet Rel 4.02 2019
ARAD-OCTAVE-Installation-Manuel-EN_Rev04-05_2023
NMI 2019 Octave Plastic, Iron and S.st DN 50-DN300- 14-3-29_R3
| Name |
|---|
|
|
|
ARAD Octave Data Sheet Rel 4.02 2019
|
|
ARAD-OCTAVE-Installation-Manuel-EN_Rev04-05_2023
|
|
NMI 2019 Octave Plastic, Iron and S.st DN 50-DN300- 14-3-29_R3
|
Additional information
| Variables Measured | Flow Volume |
|---|---|
| Outputs | 4-20mA, Pulse |
| Max Flow / Pressure (Head) | 100 m3/hr @ 16 bar, 250 m3/hr @ 16 bar, 40 m3/hr @ 16 bar, 400 m3/hr @ 16 bar, 63 m3/hr @ 16 bar |
| Max Pressure / Temp | 16 bar @ 50°C |
| Port Size | 1-1/2 inch BSP Male, 2 inch BSP Male |
| IP Rating | IP68 |
