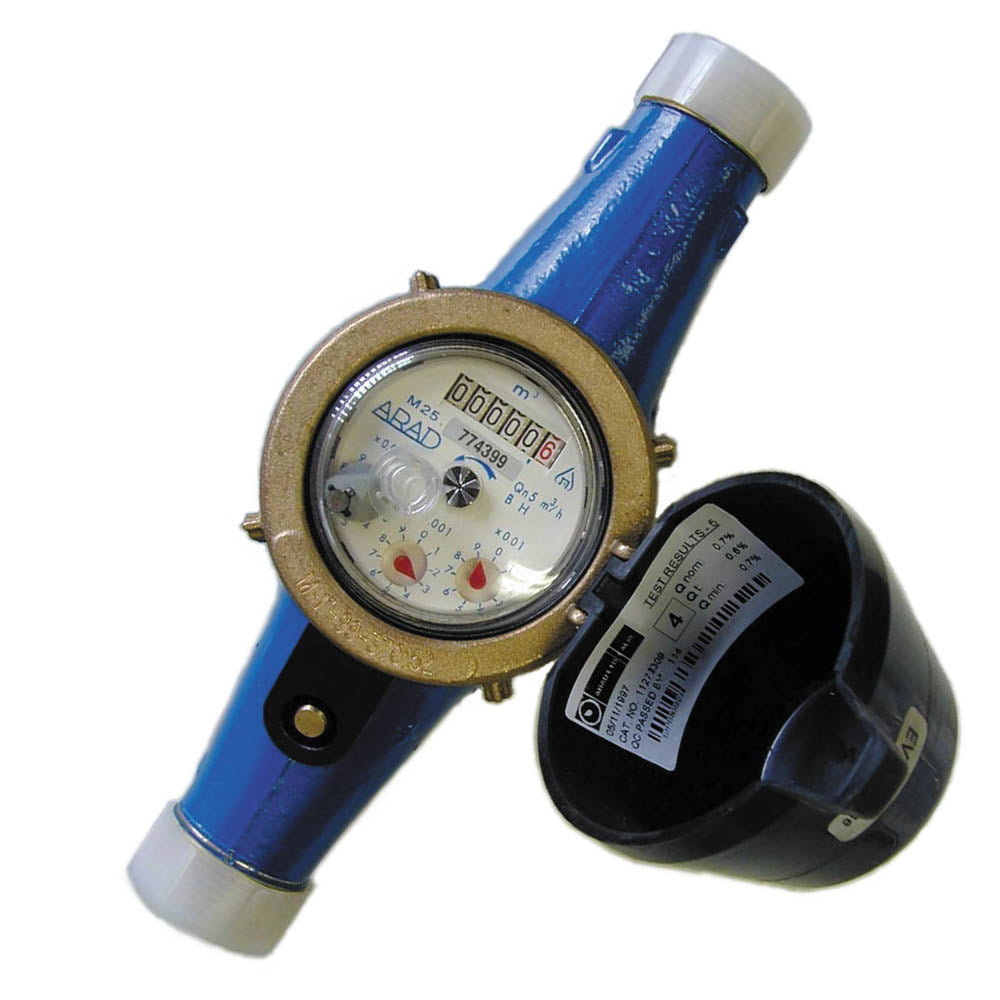

Cold Water Meters 15mm to 32mm - ARAD Multijet
Cold Water Meters 15mm to 32mm – ARAD Multijet
- Reliable – impeller is the only moving part in contact with water
- Magnetically driven sealed registers
- Ideal for sediment free domestic, agriculture or industrial water
- Threaded fittings
- Supplied with couplings
- Supplied with pulse lead (Pulse version only)
- See data sheet for different sizes and pulse outputs
- For Pulse Output versions add no. of litres per pulse at end of code (eg. 1P/L or 1P/10L)
- Replace XX in SKU with size (15, 20, 25, 32)
- Code example: AD-M-32-1P/10L (i.e. 32mm, 1-1/4″, 1 pulse per 10 litres)
Description
AD-M ARAD Instruction Manual 01-2015
AD-M Installation Instructions
ARAD MultiJet M Water Meter Data Sheet Feb 2020
| Name |
|---|
|
AD-M ARAD Instruction Manual 01-2015
|
|
AD-M Installation Instructions
|
|
ARAD MultiJet M Water Meter Data Sheet Feb 2020
|
Additional information
| Variables Measured | Flow Volume |
|---|---|
| Outputs | Pulse |
| Max Flow / Pressure (Head) | 1.5 m3/hr @ 10 bar, 10 m3/hr @ 10 bar, 12 m3/hr @ 10 bar, 30 m3/hr @ 10 bar, 5 m3/hr @ 10 bar |
| Max Pressure / Temp | 10 bar @ 50°C |
| Port Size | 1 inch BSP Male, 1-1/4 inch BSP Male, 1/2 inch BSP Male, 2 inch BSP Male, 3/4" BSP Male |
| Materials | Corrosion Proof Copper Alloy Body |
| IP Rating | IP65 |
