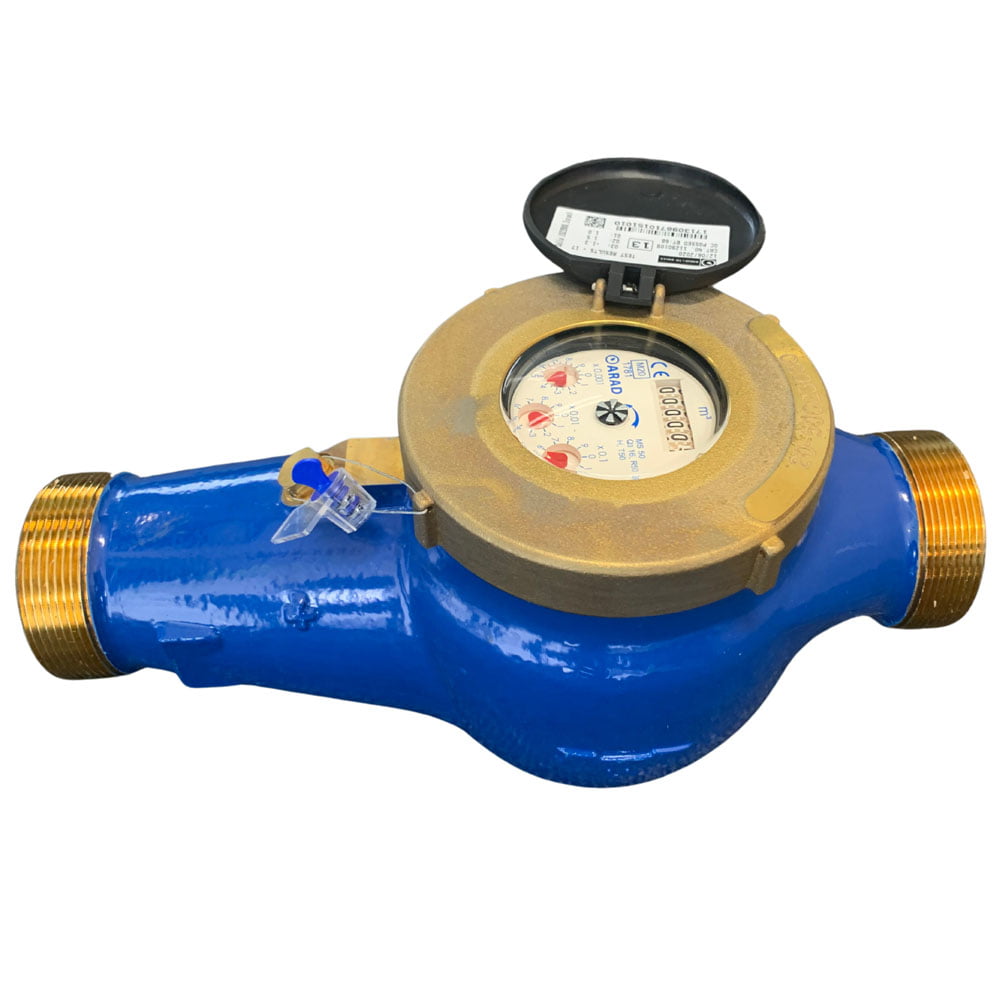

AD-MS-50 Water Meter
Cold Water Meter 50mm – ARAD MS Multijet
- New Design in 50mm (2 inch) – higher pressure rated
- Reliable – impeller only moving part in contact with water
- Magnetically driven sealed registers
- Ideal for domestic, agriculture or industrial use
- Threaded fittings
- Supplied with couplings
- Supplied with pulse lead (Pulse version only)
- Supersedes AD-M-50
- For Pulse Output versions add no. of litres per pulse at end of code (eg. add -1P/10L or -1P/100L)
Description
AD-M Installation Instructions
ARAD MultiJet MS 40mm 50mm Data Sheet Mar 19
| Name |
|---|
|
AD-M Installation Instructions
|
|
ARAD MultiJet MS 40mm 50mm Data Sheet Mar 19
|
Additional information
| Variables Measured | Flow Volume |
|---|---|
| Outputs | Pulse |
| Max Flow / Pressure (Head) | 20 m3/hr @ 16 bar |
| Max Pressure / Temp | 16 bar @ 50°C |
| Port Size | 1-1/2 inch BSP Male |
| Materials | Corrosion Proof Copper Alloy Body |
| IP Rating | IP65 |
