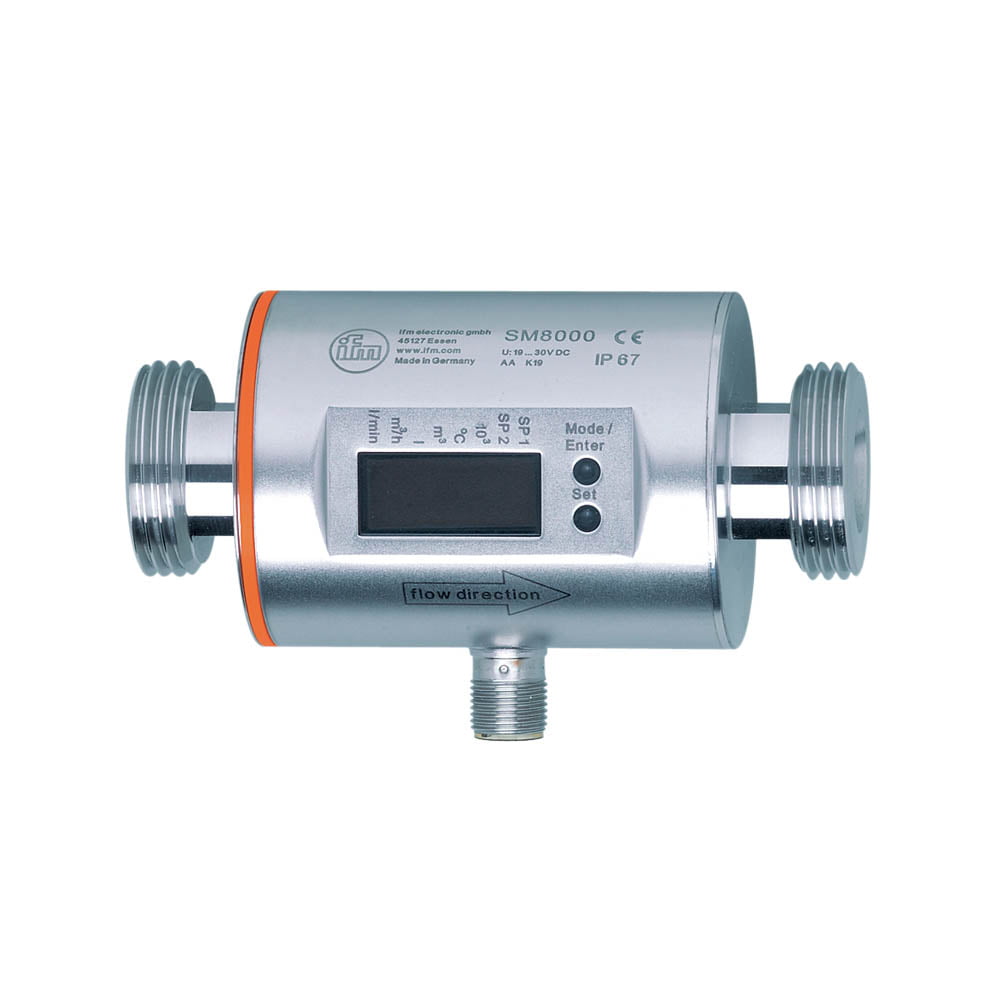

IFM SM8000 Flow Sensor G1 0
IFM SM8000 Flow Sensor G1 0.2-100 l/min FKM
- Magnetic Inductive Flow Sensor – No Moving Parts
- Suitable for Conductive liquids (conductivity:>= 20 uS/cm, viscosity: < 70 mm²/s at 40 °C)
- 1 inch flat seal process connection
- 316 Stainless Steel Body, PEEK Flow Tube, FKM Seals
- Operating voltage 19 – 30VDC (120mA)
- Totalizer function
- Output 1 = flow monitoring (binary), flow rate meter (pulse), preset meter (binary)
- Output 2 = flow monitoring or temperature monitoring (analogue 4-20mA/0-10V or binary)
- Input for counter reset
- Measuring range range 0.2 – 100 l/min
- -20 to 60 degrees C at 16 bar
Description
IFM SM8000 Instruction Manual
IFM-SM8000-03_EN-GB
| Name |
|---|
|
IFM SM8000 Instruction Manual
|
|
IFM-SM8000-03_EN-GB
|
Additional information
| Variables Measured | Flow Rate |
|---|---|
| Outputs | 0-10Vdc, 4-20mA, Pulse |
| Max Flow / Pressure (Head) | 100 l/min @ 16 bar |
| Max Pressure / Temp | 16 bar @ 60°C |
| Port Size | 1 inch BSP Male |
| Materials | FKM B Viton O-rings, PEEK Flow Tube, Stainless Steel 316 |
| IP Rating | IP67 |
