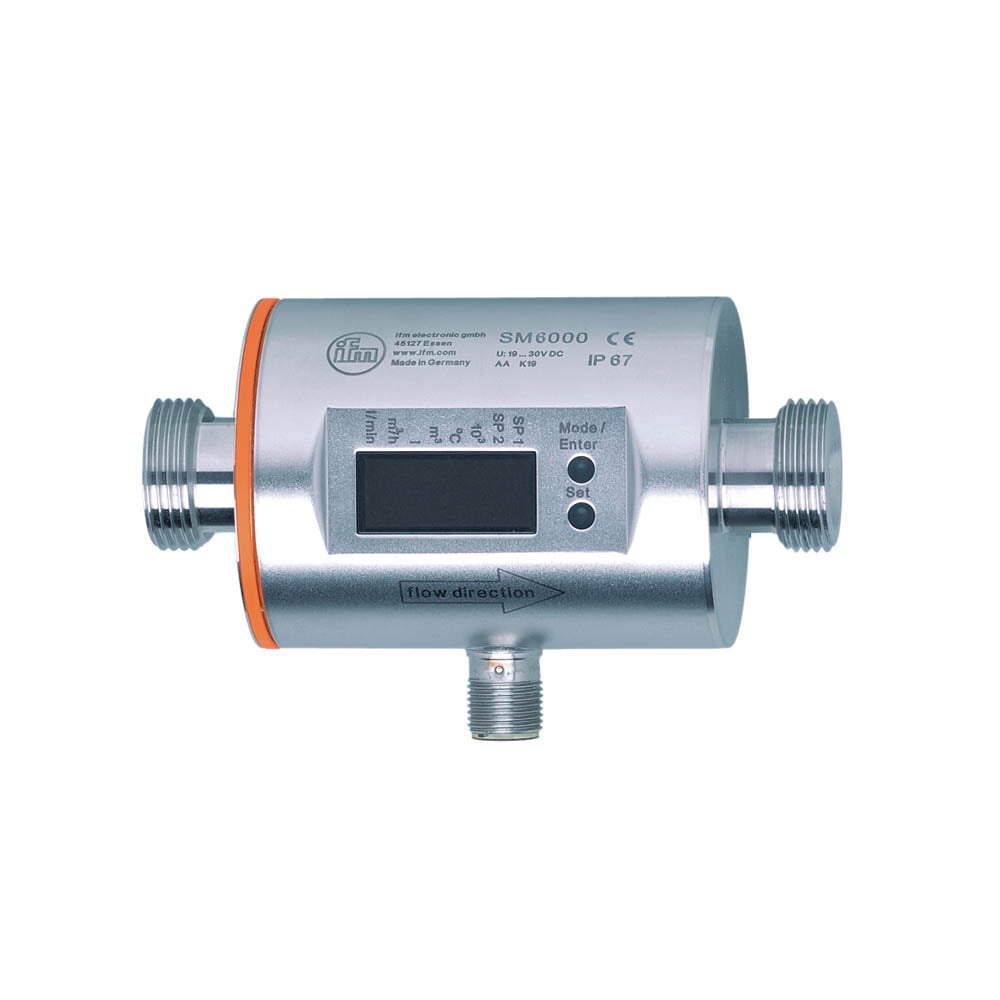

IFM SM6000 Flow Sensor G1/2 0.1-25 l/min FKM

  • Magnetic Inductive Flow Sensor – No Moving Parts
  • Suitable for Conductive liquids (conductivity:>= 20 uS/cm, viscosity: < 70 mm²/s at 40 °C)
  • 1/2 inch flat seal process connection
  • 316 Stainless Steel Body, PEEK Flow Tube, FKM Seals
  • Operating voltage 19 – 30VDC (120mA)
  • Totalizer function
  • Output 1 = flow monitoring (binary), flow rate meter (pulse), preset meter (binary)
  • Output 2 = flow monitoring or temperature monitoring (analogue 4-20mA/0-10V or binary)
  • Input for counter reset
  • Measuring range range 0.1 – 25 l/min
  • -20 to 60 degrees C at 16 bar
Compare
SKU: IFM SM6000 Category:

Description

IFM-SM6000-03_EN-GB.pdf
IFM-SM6000-Instruction-Manual.pdf
IFM-SM6000-03_EN-GB.pdf
IFM-SM6000-Instruction-Manual.pdf
Name

Additional information

Variables Measured

Flow Rate

Outputs

0-10Vdc, 4-20mA, Pulse

Max Flow / Pressure (Head)

25 l/min @ 16 bar

Max Pressure / Temp

16 bar @ 60°C

Port Size

1/2 inch BSP Male

Materials

FKM B Viton O-rings, PEEK Flow Tube, Stainless Steel 316

IP Rating

IP67
