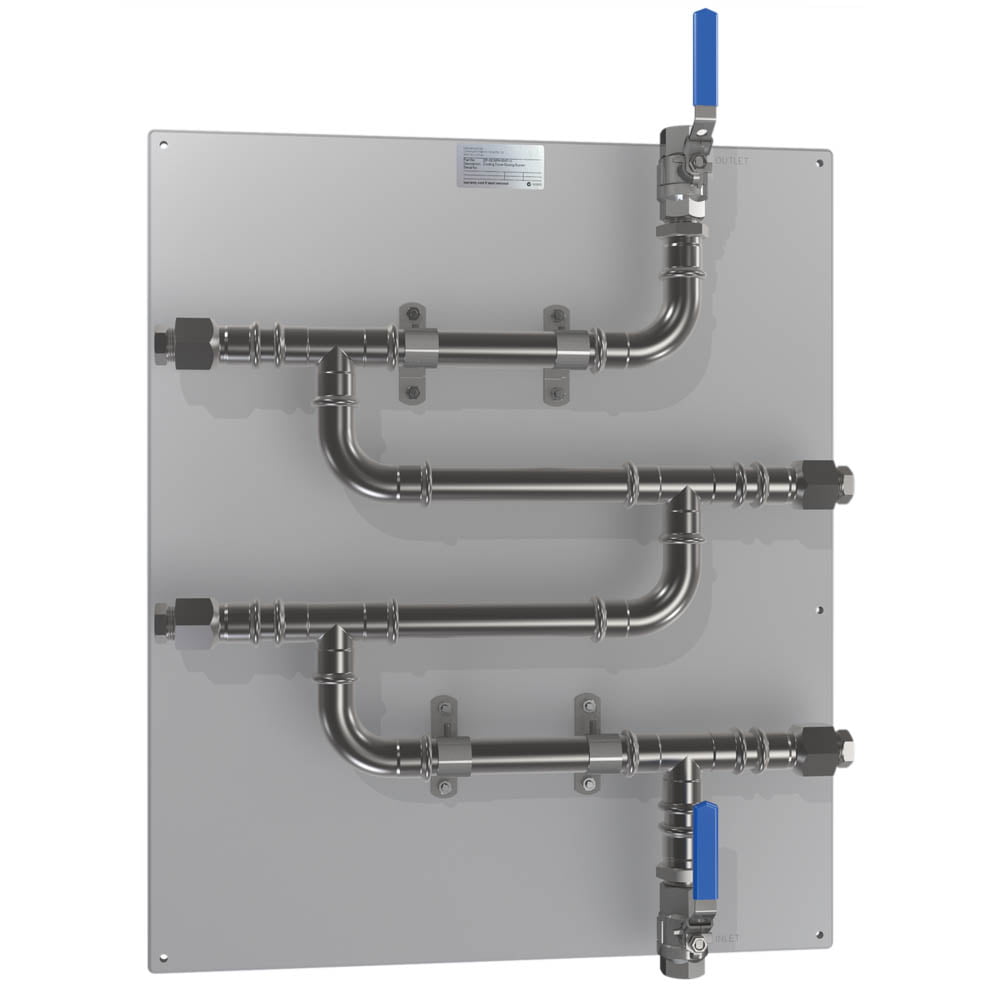

CR-4C-V-SS316L 20mm (3/4 inch) SS316 Rack with Isolation Valves
CR-4C-V-SS316L 20mm (3/4 inch) SS316 Rack with Isolation Valves 1

CR-4C-V-SS316L 20mm (3/4 inch) SS316 Rack with Isolation Valves

  • Includes isolation valves for removing coupons and/or regulating flow
  • Stainless Steel 316 Construction – 10 Bar Max Pressure at 100°C
  • Complete with coupon holders (metal coupons not supplied)
  • Direction of water flow always from bolt & nut holding coupon to end of coupon itself – ensures same flow characteristics over all coupons
Compare
Request Quote
SKU: CR-4C-V-SS316L Category:

Description

CR-4C-V-SS316L Dimensional Drawing
CR-4C-V-SS316L Dimensional Drawing
Name
CR-4C-V-SS316L Dimensional Drawing

Additional information

Configuration

Wall Mount, PVC Backboard Mounted
Max Pressure / Temp

10 bar @ 100°C
Port Size

3/4" BSP Female
Materials

Stainless Steel 316
IP Rating

IP65
