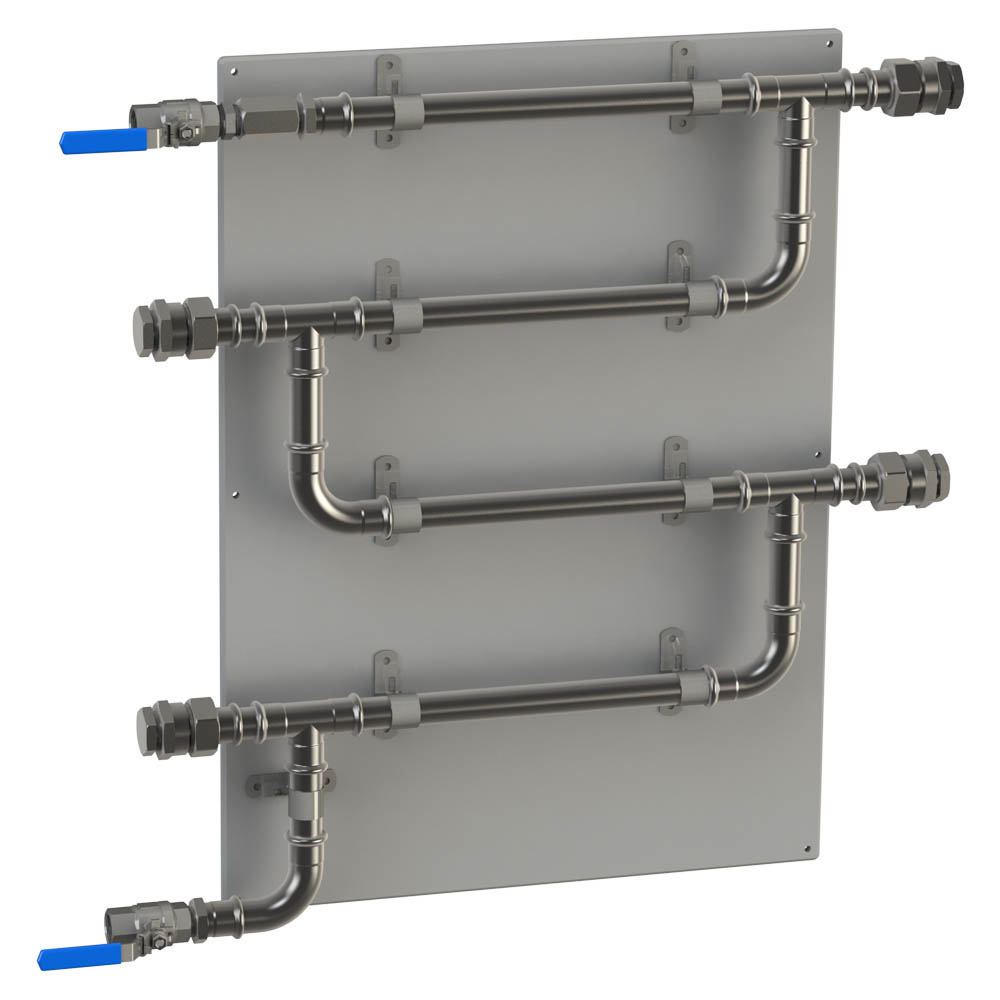

CR-ASTM-4C-M20-10-SS-TU 20mm (3/4”) SS316 ASTM Coupon Rack with Isolation valves and Quick Release Coupon Holders

  • Compliant to ASTM D2688 specification for Dimensions and Flow – Standard Test Method for Corrosivity of Water in the Absence of Heat Transfer (Weight Loss Method)
  • Flow maintained at a fixed rate during a wide range of differential pressure across the inlet and outlet of the rack
  • Includes isolation valves for removing coupons and/or regulating flow
  • Stainless Steel 316 Construction – 10 Bar Max Pressure at 100°C
  • Complete with coupon holders (metal coupons not supplied)
  • Direction of water flow always from bolt & nut holding coupon to end of coupon itself – ensures same flow characteristics over all coupons
  • Download a copy of ASTM D2688 from www.astm.org/Standards/D2688.htm
Compare
SKU: CR-ASTM-4C-M20-10-SS-TU Category: Tag:

Description

ASTM-SS316-Corrosion-Coupon-Racks-v1.0.pdf
CR-ASTM-4C-M20-10-SS-TU-Dimensional-Drawings-Rev-01.pdf
ASTM-SS316-Corrosion-Coupon-Racks-v1.0.pdf
CR-ASTM-4C-M20-10-SS-TU-Dimensional-Drawings-Rev-01.pdf
Name

Additional information

Configuration

Wall Mount, PVC Backboard Mounted

Max Pressure / Temp

10 bar @ 100°C

Port Size

3/4" BSP Female

Materials

Stainless Steel 316

IP Rating

IP65
