MAN DIGI-PLUS-B-1-2
MAN DIGI-PLUS-B-1/2 (for ORP via Brominator)

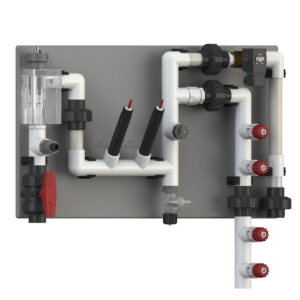

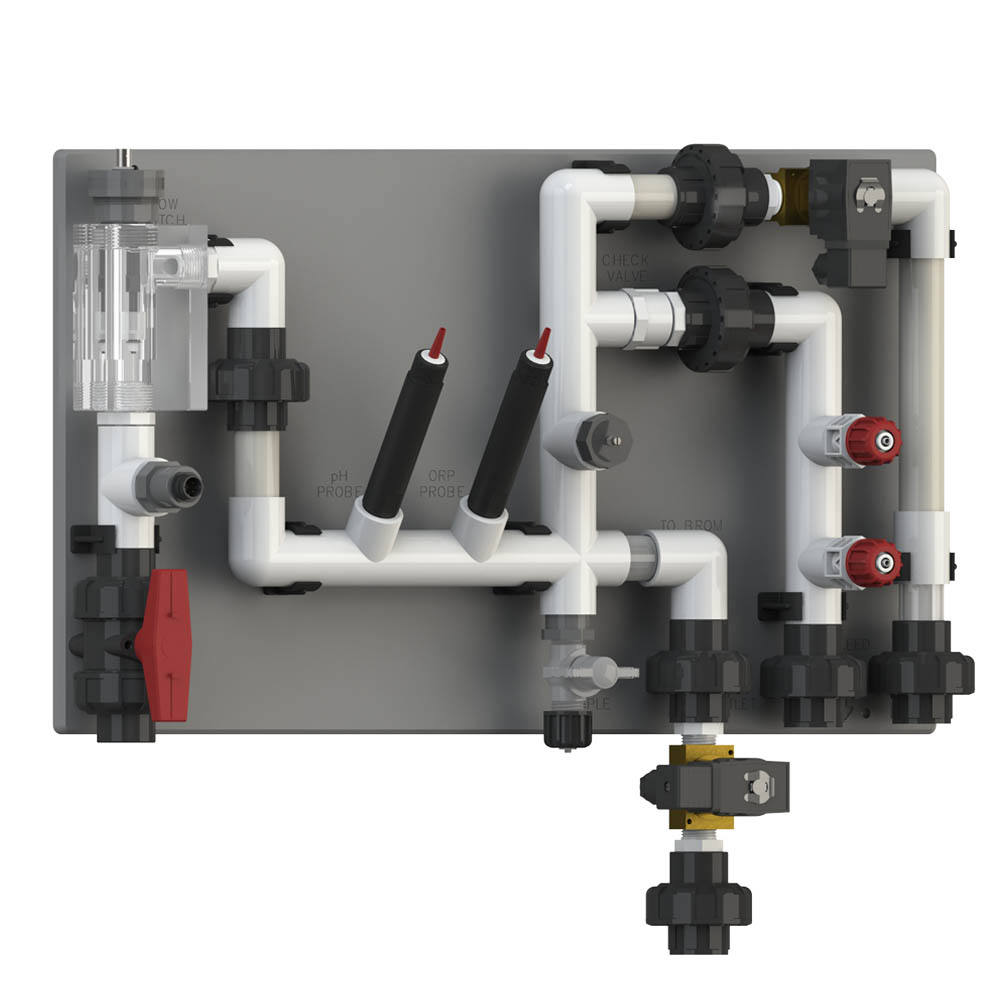

- DIGICHEM Plus+ Manifold 3/4 inch (20mm) on PVC backboard Inlet to Outlet: Ball valve, port for optional TDS probe, Flow switch, 2 x 1/2 inch Ports for optional pH & ORP Probes, sample point, 3/4 inch Port for optional solution Ground probe. Includes Bleed & Brominator solenoid valves, check valve and 3 ports for optional injection valves
- Variables Measured: Conductivity/TDS, Temp, pH & ORP
- Applications: Cooling Tower Bleed & Dosing via Timers, pH & Brominator (ORP)
- Compatible Controllers: refer Brochure in Downloads for details
- Note: some optional parts included in Product Image (refer Brochure in Downloads for details)
- Backboard: 600mm (W) x 345mm (H) x 10mm (D)
Description
