DCON-RX2-P ORP Control System with Peristaltic Pump 1

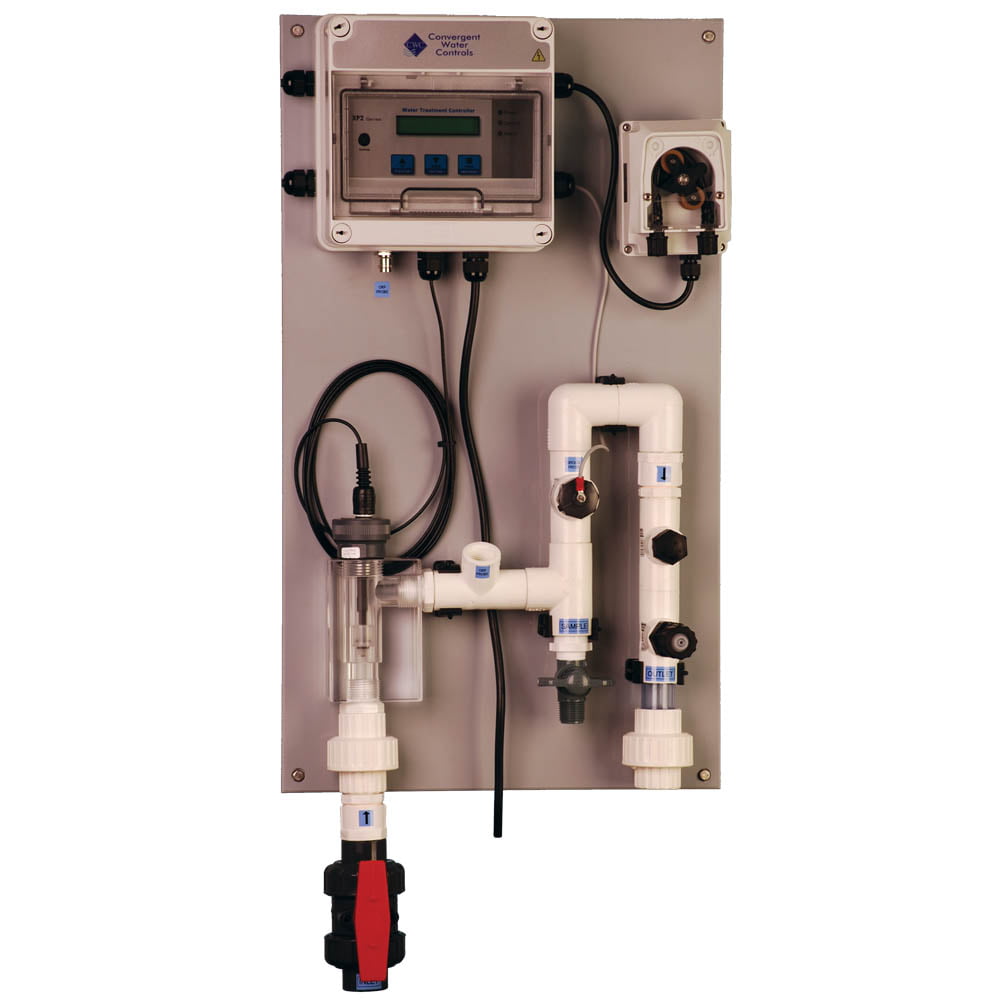

DCON-RX2-P ORP Control System with Peristaltic Pump
- Digital controller, pump & manifold mounted on PVC backboard
- On-board data logging
- NEW Black EPDM based squeeze tube with better chemical compatibility & longer tube life
- ORP controlled via peristaltic pump (disabled on no-flow)
- Self priming peristaltic pump (1.3l/hr,3bar)
- Fail-safe alarm relay with remote power failure detection
- Options & variations available – download data sheet
Description
DCON-RX2-ORP-XP2-Instruction-Manual-M1-ver1.3.pdf
DCON-RX2-ORP-XP2-ORP-Systems-Data-Sheet-v3.0.pdf
DCON-RX2-P-Assembly-Diagram-v2.2.pdf
DCON-RX2-P-Spare-Parts-v1.1.pdf
DCON-RX2-P-or-DCON-PH2-P-Installation-Instructions-v1.0.pdf
| Name |
|---|
|
DCON-RX2-ORP-XP2-Instruction-Manual-M1-ver1.3.pdf
|
|
DCON-RX2-ORP-XP2-ORP-Systems-Data-Sheet-v3.0.pdf
|
|
DCON-RX2-P-Assembly-Diagram-v2.2.pdf
|
|
DCON-RX2-P-Spare-Parts-v1.1.pdf
|
|
DCON-RX2-P-or-DCON-PH2-P-Installation-Instructions-v1.0.pdf
|
Additional information
| Configuration | Wall Mount, PVC Backboard Mounted |
|---|---|
| Variables Measured | ORP |
| Inputs | Flow Switch Contact, ORP Probe |
| Outputs | Alarm Relay, ORP Chlorine Pump Via Relay |
| Data Logging | Included |
| Max Pressure / Temp | 2.7 bar @ 50°C |
| Port Size | 3/4" BSP Female |
| Materials | PVC Manifold |
| IP Rating | IP55 |
