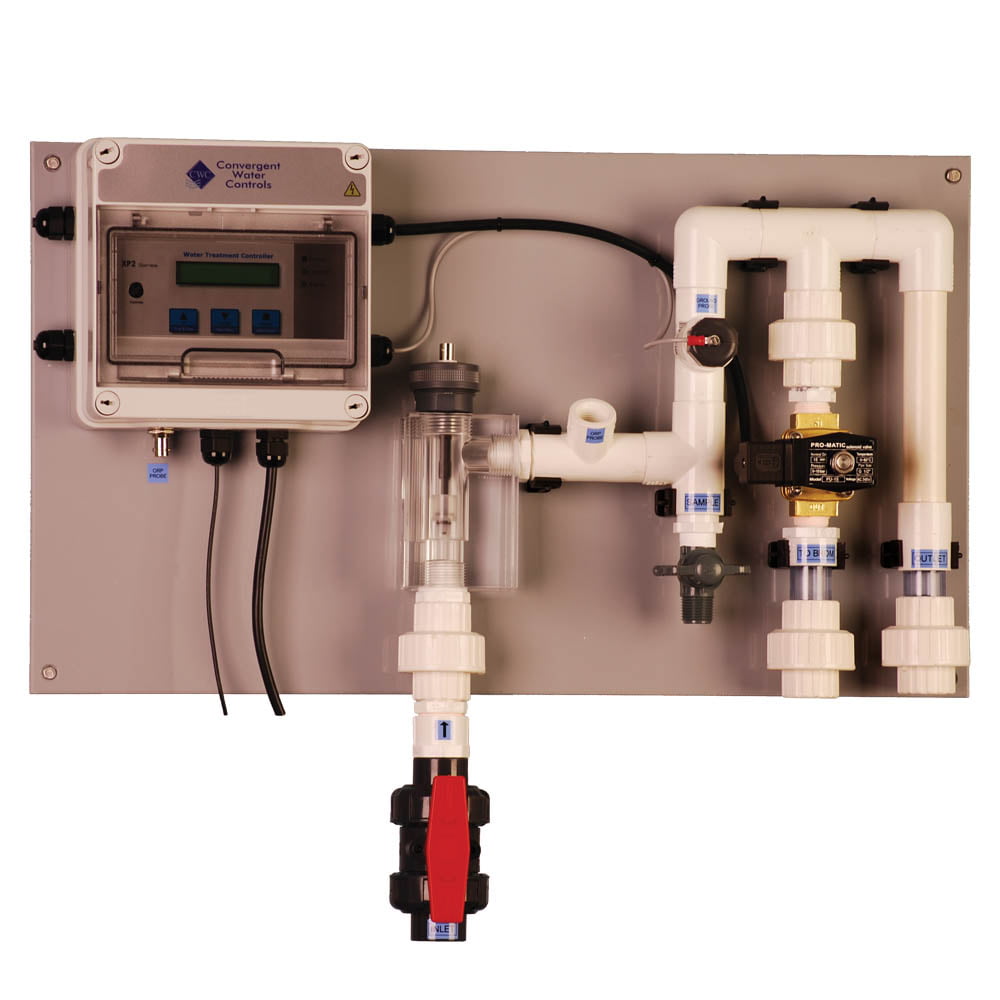

DCON-RX2-B ORP Control System with Solenoid Valve for Brominator

  • Digital controller & manifold (including dosing solenoid valve & flow switch) mounted on PVC backboard
  • On-board data logging
  • ORP controlled via solenoid valve to optional brominator
  • Fail-safe alarm relay with remote power failure detection
  • Options & variations available – download data sheet
Compare
SKU: DCON-RX2-B Categories: ,

Description

DCON-RX2 & ORP-XP2 Data Sheet v3.0
DCON-RX2 & ORP-XP2 Instruction Manual M1-ver-1.3
DCON-RX2-B Assembly Diagram
DCON-RX2-B Spare Parts v1.1
DCON-RX2-B or similar Installation Instructions v1.0
DCON-RX2 & ORP-XP2 Data Sheet v3.0
DCON-RX2 & ORP-XP2 Instruction Manual M1-ver-1.3
DCON-RX2-B Assembly Diagram
DCON-RX2-B Spare Parts v1.1
DCON-RX2-B or similar Installation Instructions v1.0
Name

Additional information

Configuration

Wall Mount, PVC Backboard Mounted

Variables Measured

ORP

Inputs

Flow Switch Contact, ORP Probe

Outputs

Alarm Relay, ORP Brominator Valve Via Relay

Data Logging

Included

Max Pressure / Temp

2.7 bar @ 50°C

Port Size

3/4" BSP Female

Materials

PVC Manifold, Solenoid valves brass

IP Rating

IP55
