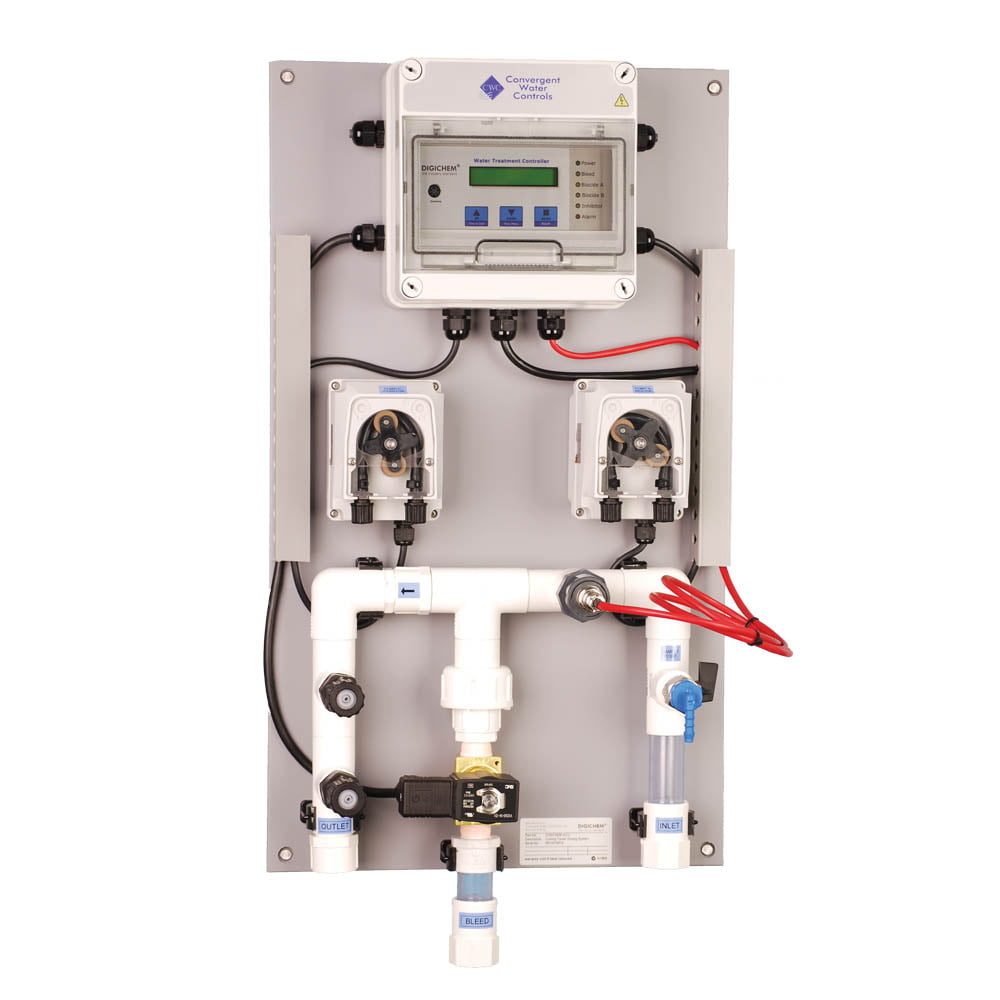

DIGICHEM-A2-V (Bleed, Inhibitor, BioA) 1
DIGICHEM-A2-V (Bleed, Inhibitor, BioA)
- Supersedes DIGICHEM-A2
- On-board data logging
- NEW Black EPDM based squeeze tube with better chemical compatibility & longer tube life
- Digital controller, pumps & manifold mounted on PVC back panel
- Bleed Control – via solenoid valve
- Inhibitor Dosing – reduces corrosion
- Biocide Dosing for system disinfection via 10 x 28 day timer programs
- Pre-bleed & Bleed Lock-out
- Self priming peristaltic pumps (1.3l/hr,3bar)
- Condenser pump override facility during biocide dosing with delay-off timer
- Fail-safe alarm relay with remote power failure detection
- Options & variations available – download data sheet
Description
DIGICHEM-AB2-V Assembly Diagram
DIGICHEM-AB2-V DIGICHEM-XP2 Data Sheet v3.1
DIGICHEM-AB2-V Spare Parts Exploded Rev 01
DIGICHEM-AB2-V or similar Installation Instructions v1.0
DIGICHEM-AB2-V-DIGICHEM-XP2 Instruction Manual v1.5
| Name |
|---|
|
|
|
DIGICHEM-AB2-V Assembly Diagram
|
|
DIGICHEM-AB2-V DIGICHEM-XP2 Data Sheet v3.1
|
|
DIGICHEM-AB2-V Spare Parts Exploded Rev 01
|
|
DIGICHEM-AB2-V or similar Installation Instructions v1.0
|
|
DIGICHEM-AB2-V-DIGICHEM-XP2 Instruction Manual v1.5
|
Additional information
| Configuration | Wall Mount, PVC Backboard Mounted |
|---|---|
| Variables Measured | Conductivity, TDS, Temperature |
| Inputs | Conductivity Probe with Electrodes & 47K NTC, Flow Switch Contact, Water Meter Make-up Pulses |
| Outputs | Alarm Relay, Bio A Pump Via Relay, Bleed Valve Via Relay, Inhibitor Pump Via Relay |
| Data Logging | Included |
| Max Pressure / Temp | 2.7 bar @ 50°C |
| Port Size | 3/4" BSP Female |
| Materials | PVC Manifold, Solenoid valves brass |
| IP Rating | IP55 |
