DIGICHEM-X-3S-EMEC3A-V-CABG
DIGICHEM-X/3S-EMEC3A-V-CABG (Bleed, Inhib, BioA, BioB w/ VCO Pumps)

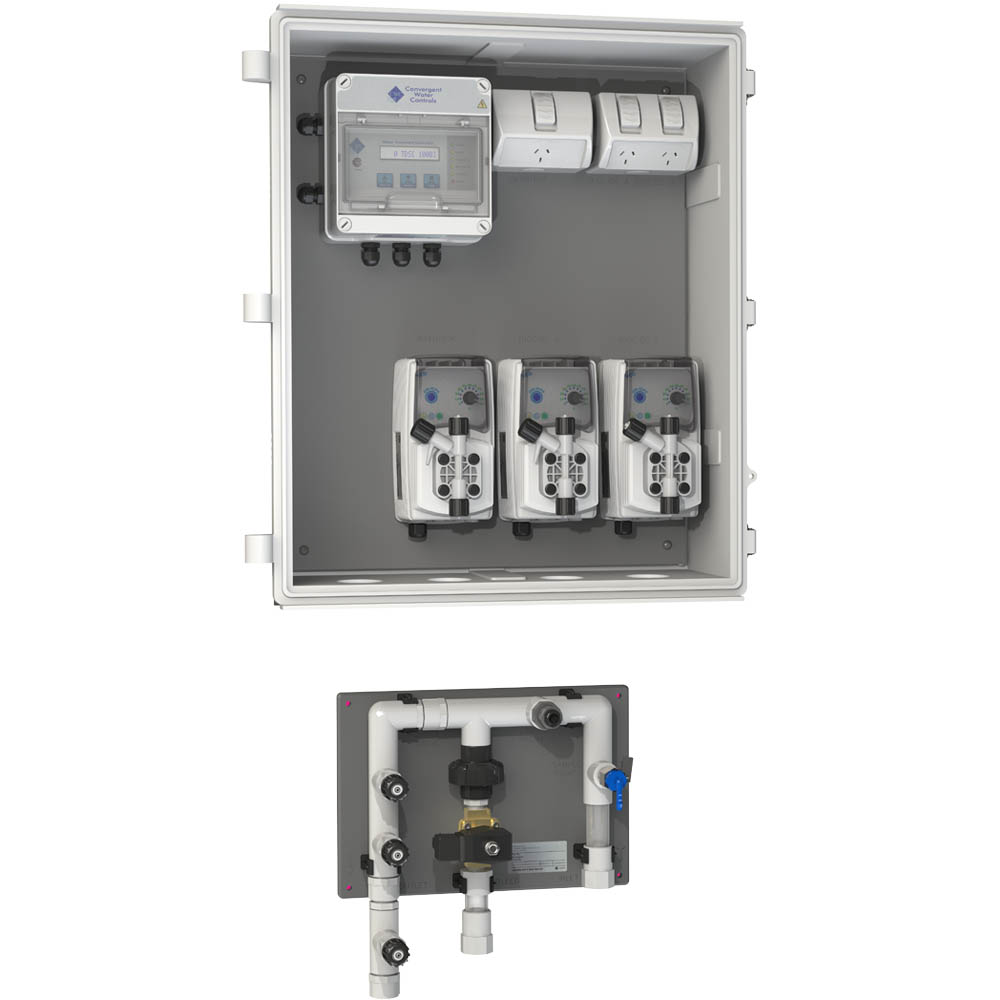

- Digital controller & pumps in hinged lockable, PC ABS cabinet, mounted with manifold on separate PVC back panel
- On-board data logging
- Digital controller, pumps & manifold mounted on PVC back panel
- Bleed Control – via solenoid valve
- Inhibitor Dosing – reduces corrosion
- Dual Biocide Dosing for system disinfection (via 10 x 28-day timer programs)
- Secondary Biocide Pump has self-venting (de-gassing) head [Note: Secondary Biocide Pump in DIGICHEM-X/3S-EMEC3-V-CABG version does not have self-venting head]
- Pre-bleed & Bleed Lock-out
- EMEC solenoid pumps, 2.2l/hr, 10bar
- Condenser pump override facility during biocide dosing with delay-off timer
- Fail-safe alarm relay with remote power failure detection
- Options & variations available – download data sheet
Description
DIGICHEM-AB2-V DIGICHEM-XP2 Data Sheet v3.1
DIGICHEM-AB2-V-DIGICHEM-XP2 Instruction Manual v1.5
DIGICHEM-X-3S-EMEC3A-V-CABG Spare Parts Exploded Rev 01-01-02
| Name |
|---|
|
DIGICHEM-AB2-V DIGICHEM-XP2 Data Sheet v3.1
|
|
DIGICHEM-AB2-V-DIGICHEM-XP2 Instruction Manual v1.5
|
|
DIGICHEM-X-3S-EMEC3A-V-CABG Spare Parts Exploded Rev 01-01-02
|
Additional information
| Configuration | Controller & Pumps Mounted In Cabinet, Wall Mount |
|---|---|
| Variables Measured | Conductivity, TDS, Temperature |
| Inputs | Conductivity Probe with Electrodes & 47K NTC, Flow Switch Contact, Water Meter Make-up Pulses |
| Outputs | Alarm Relay, Bio A Pump Via Relay, Bio B Pump Via Relay, Bleed Valve Via Relay, Inhibitor Pump Via Relay |
| Data Logging | Included |
| Max Pressure / Temp | 10 bar @ 25°C |
| Port Size | 3/4" BSP Female |
| Materials | PVC Manifold, Solenoid valves brass |
| IP Rating | IP65 |
