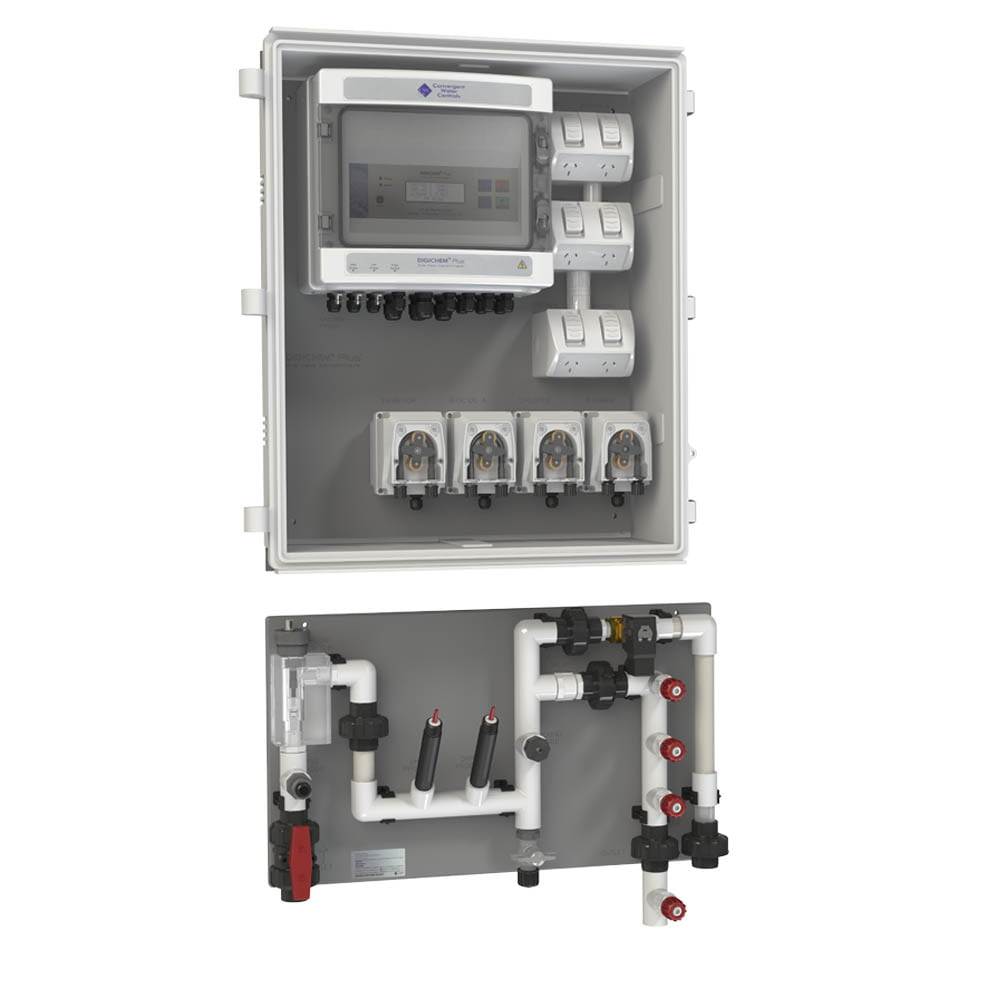

DP-CAPH-RXPP-CAB (Bleed, Inhib, BioA, pH, ORP via CL2 & Br Pumps)

Digital controller & pumps in hinged lockable, PC+ABS cabinet, mounted with manifold on separate PVC back panel
Pumps plug into GPO’s
Extra GPO’s for additional pH and Dispersant pumps
Internet Based Connectivity as an option
Monitoring and control of Conductivity/TDS, pH and ORP simultaneously
On-board data logging
Continuous readout of Conductivity, Temp, pH & ORP with each setpoint on backlit LCD
Display and logging of cycles of concentration of the cooling tower
Manual slug dose feature on all pumps
Inhibitor modes: On bleed, After bleed, 24/7 cycle, Proportional to make-up
Ability to measure and log cooling tower make-up and bleed water flow rate & consumption
Inhibitor, Non-oxidising biocide, Chlorine & Bromine pumps. Ratio of Chlorine to Bromine is approx. 3:1.
Disinfection feature to allow ORP control to a temporary high setpoint
28 Day Timers for disabling pH & ORP output if continuous control not desired.
28 Day Biocide Dosing programs (max 70 per week)
Password protection

Compare

Description

Superseded

DIGICHEM Plus+ Firmware upgrade Compatibility Rev 1.0

DIGICHEM Plus+ Tips for Remote Setup & TroubleShooting v1.0

DP-CA DIGICHEM Plus Data Sheet v1.2

DP-CA DIGICHEM Plus Instruction Manual v5.0

DP-CAPH-RXPP or similar Installation Instructions v1.1

DP-CAPH-RXPP-CAB Assembly Diagram

DP-CAPHP-RXP-CAB Spare Parts Exploded Rev 01

Name
Superseded
DIGICHEM Plus+ Firmware upgrade Compatibility Rev 1.0
DIGICHEM Plus+ Tips for Remote Setup & TroubleShooting v1.0
DP-CA DIGICHEM Plus Data Sheet v1.2
DP-CA DIGICHEM Plus Instruction Manual v5.0
DP-CAPH-RXPP or similar Installation Instructions v1.1
DP-CAPH-RXPP-CAB Assembly Diagram
DP-CAPHP-RXP-CAB Spare Parts Exploded Rev 01

Configuration	Controller & Pumps Mounted In Cabinet, Wall Mount
Variables Measured	Conductivity, Flow Status, Flow Volume, ORP, pH, TDS, Temperature
Inputs	Conductivity Probe with Electrodes & 47K NTC, Flow Switch Contact, ORP Probe, pH Probe, Water Meter Bleed Pulses, Water Meter Make-up Pulses
Outputs	Alarm Relay
Data Logging	Included
Remote Comms	Via Optional Modem
Max Pressure / Temp	2.7 bar @ 50°C
Port Size	20mm Solvent Weld
Materials	PVC Manifold, Solenoid valves brass
IP Rating	IP65
