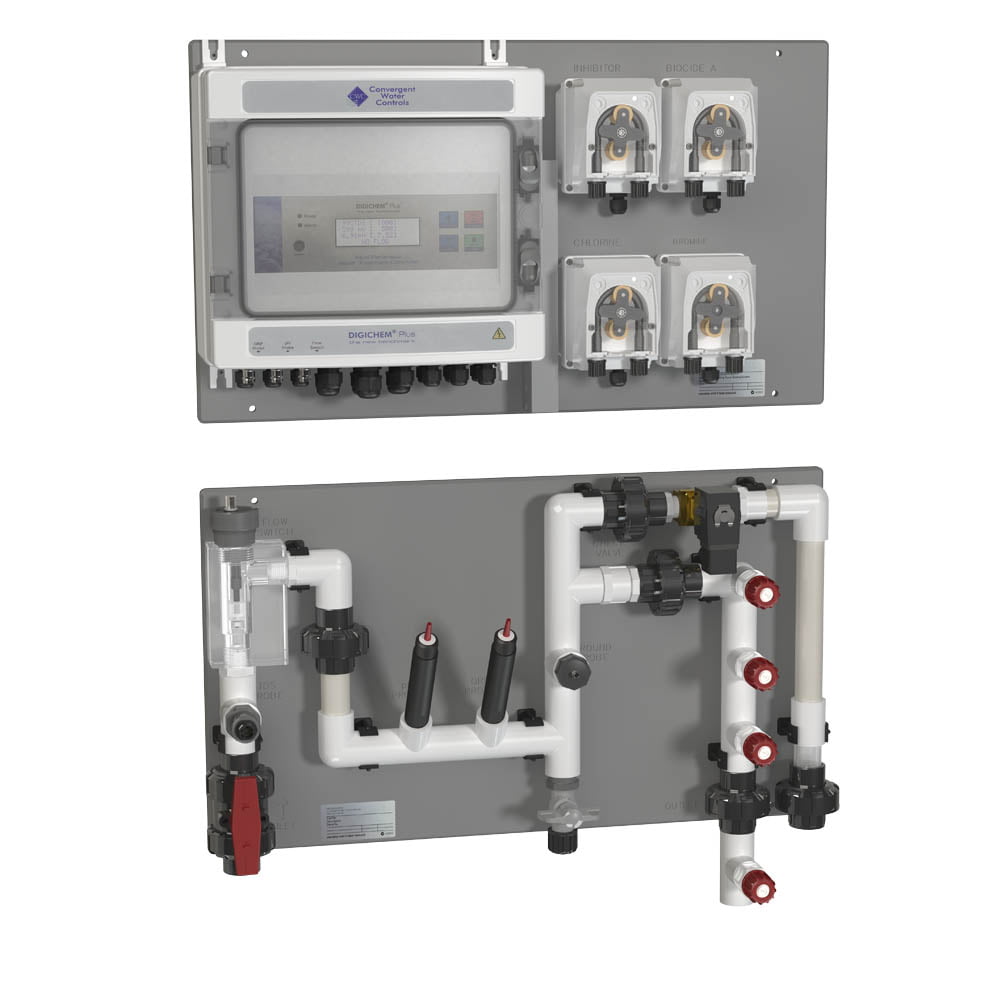

DP-CAPH-RXPP
DP-CAPH-RXPP (Bleed, Inhib, BioA, pH, ORP via CL2 & Br Pumps)
- Internet Based Connectivity as an option
- Monitoring and control of Conductivity/TDS, pH and ORP simultaneously
- On-board data logging
- Continuous readout of Conductivity, Temp, pH & ORP with each setpoint on backlit LCD
- Display and logging of cycles of concentration of the cooling tower
- Manual slug dose feature on all pumps
- Inhibitor modes: On bleed, After bleed, 24/7 cycle, Proportional to make-up
- Ability to measure and log cooling tower make-up and bleed water flow rate & consumption
- Inhibitor, Non-oxidising biocide, Chlorine & Bromine pumps. Ratio of Chlorine to Bromine is approx. 3:1.
- Disinfection feature to allow ORP control to a temporary high setpoint
- 28 Day Timers for disabling pH & ORP output if continuous control not desired.
- 28 Day Biocide Dosing programs (max 70 per week)
- Password protection
Description
DIGICHEM Plus+ Firmware upgrade Compatibility Rev 1.0
DIGICHEM Plus+ Tips for Remote Setup & TroubleShooting v1.0
DP-CA DIGICHEM Plus Data Sheet v1.2
DP-CA DIGICHEM Plus Instruction Manual v5.0
DP-CAPH-RXPP Assembly Diagram
DP-CAPH-RXPP or similar Installation Instructions v1.1
DP-CAPHP-RXP Spare Parts Exploded Rev 01
| Name |
|---|
|
|
|
DIGICHEM Plus+ Firmware upgrade Compatibility Rev 1.0
|
|
DIGICHEM Plus+ Tips for Remote Setup & TroubleShooting v1.0
|
|
DP-CA DIGICHEM Plus Data Sheet v1.2
|
|
DP-CA DIGICHEM Plus Instruction Manual v5.0
|
|
DP-CAPH-RXPP Assembly Diagram
|
|
DP-CAPH-RXPP or similar Installation Instructions v1.1
|
|
DP-CAPHP-RXP Spare Parts Exploded Rev 01
|
Additional information
| Configuration | Wall Mount, PVC Backboard Mounted |
|---|---|
| Variables Measured | Conductivity, Flow Status, Flow Volume, ORP, pH, TDS, Temperature |
| Inputs | Conductivity Probe with Electrodes & 47K NTC, Flow Switch Contact, ORP Probe, pH Probe, Water Meter Bleed Pulses, Water Meter Make-up Pulses |
| Outputs | Alarm Relay, Bio A Pump Via Relay, Bleed Valve Via Relay, Inhibitor Pump Via Relay, Optional Dispersant Pump Via Relay, Optional pH Pump Via Relay, ORP Bromine Pump Via Relay, ORP Chlorine Pump Via Relay |
| Data Logging | Included |
| Remote Comms | Via Optional Modem |
| Max Pressure / Temp | 2.7 bar @ 50°C |
| Port Size | 20mm Solvent Weld |
| Materials | PVC Manifold, Solenoid valves brass |
| IP Rating | IP65 |
